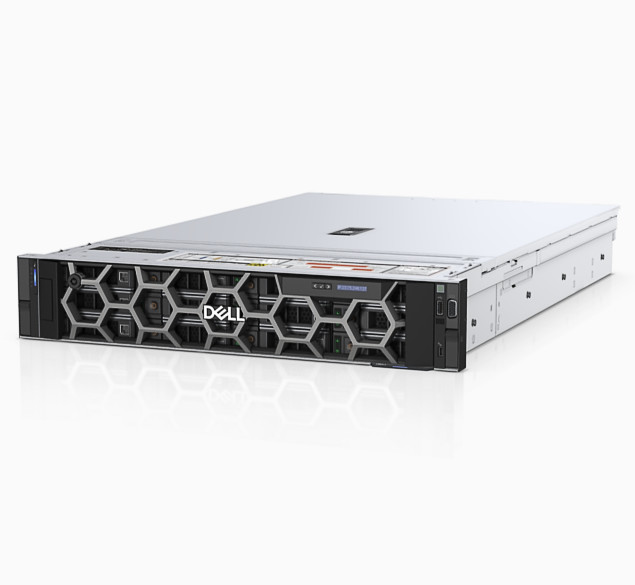

Dell PowerEdge R7625 2U Dual-socket Rack Server GPU Options Up to Up to 2 x 300 W DW or 6 x 75 W SW

Up to two AMD EPYC 4th Generation 9004 Series with up to 128 cores per processor

• 24 DDR5 DIMM slots, supports RDIMM 6 TB max, speeds up to 4800 MT/s

• Supports registered ECC DDR5 DIMMs only

• Internal Controllers (RAID): PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i

• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB

• External HBA (non-RAID): HBA355e

• Software RAID: S160

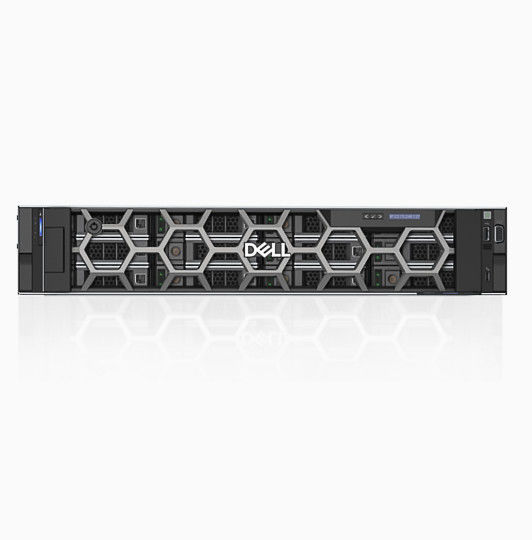

Front Bays
Up to 8 x 2.5-inch NVMe/SAS/SATA SSD drives max 122.88 TB
Up to 16 x E3.S NVMe direct drives max 122.88 TB
Note: Only 8 x 2.5-inch NVMe SSD drives are supported with Intel Gaudi3.

Front bays: • Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB

• Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB

• Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB

• Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB

• Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB

• Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 61.44 TB

• Up to 16 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB

• Up to 32 x EDSFF E3.S Gen5 NVMe (SSD) max 245.76 TB

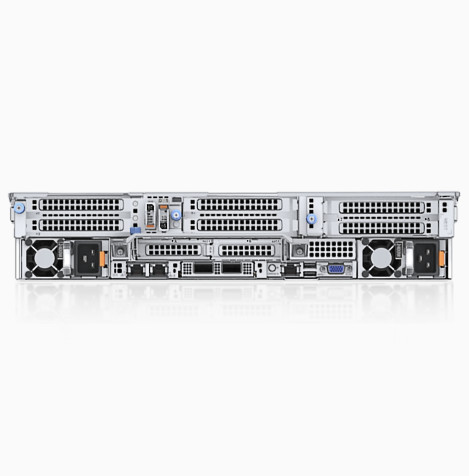

Rear bays:

• Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB

• Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB

• Up to 4 x E3.S (NVMe Gen5 ) max 30.72 TB

• Height – 86.8 mm (3.41 inches)

• Width – 482 mm (18.97 inches)

• Depth – 772.13 mm (30.39 inches) with bezel 758.29 mm (29.85 inches) without bezel
