| Differentiatior: | 24x Multigigabit 550W 2x Fan AFO | Power Consumption: | Depending On The Model And Configuration |
|---|---|---|---|
| Input Voltage: | 100–120V / 200–240V | Switching Capacity: | 640 Gbps (unidirectional) 1280 Gbps (bidirectional) |
| Stacking Capabilities: | Up To 10 Member Virtual Chassis | Throughput: | 952.38 Mpps At 64 Byte Packets |
| Memory And Processor: | 8 GB RAM 2.3 GHz Quad-core Intel® X86 CPU | Power Supply: | 550W AC AFO |
| PoE Capability: | Not Applicable. | Fans: | 2 Air Flow Out (AFO) Fans |
| Highlight: | 24x Multigigabit Ports Juniper EX5200 Switch,640 Gbps Switching Capacity EX5200-24T,Cloud-Native Operations HPE Juniper EX5200-24T Switch |
||

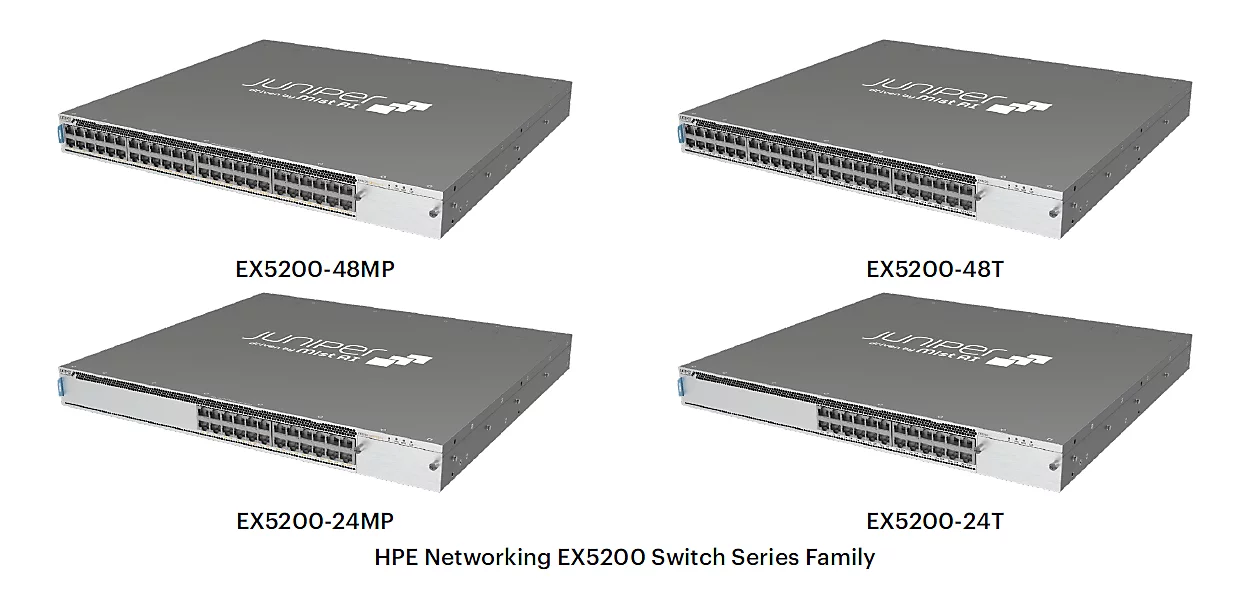

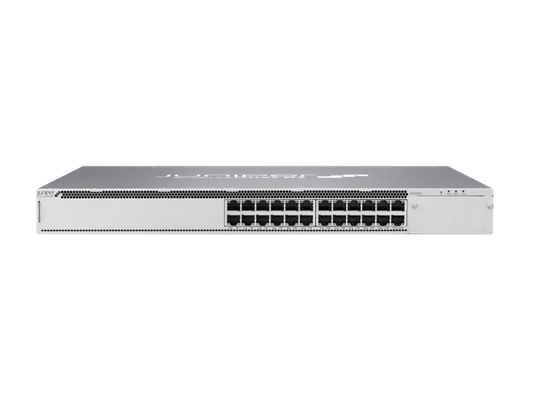

The HPE Networking EX5200 Switch Series is a premium, high‑performance access switching platform designed for enterprise campus and branch networks that require high-density multigigabit connectivity, advanced security, resilient stacking, and cloud-native operations.
As part of the underlying infrastructure for HPE Mist Wired Assurance, the EX5200 is purpose‑built for, and managed by, the cloud. The switch leverages HPE Mist AI to simplify operations and provide better visibility into the experience of connected devices, delivering a refreshing, user experience-first approach to access layer switching.

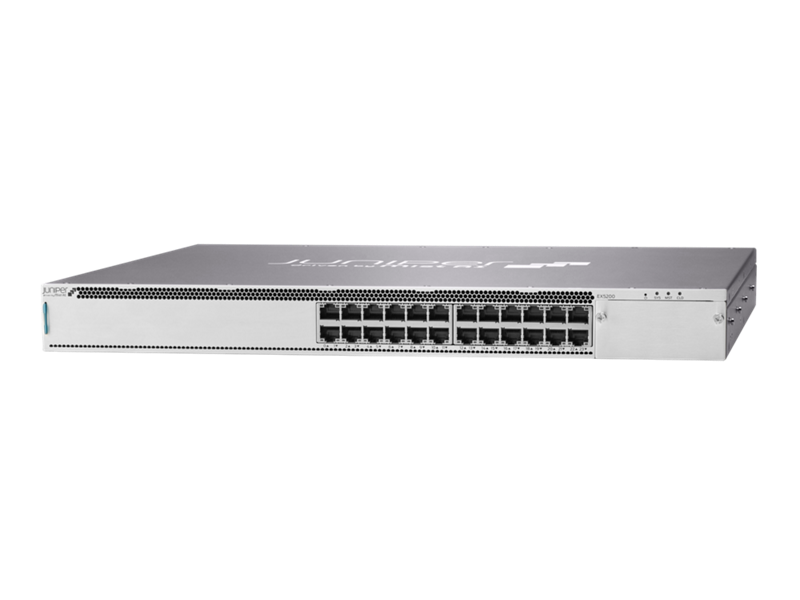

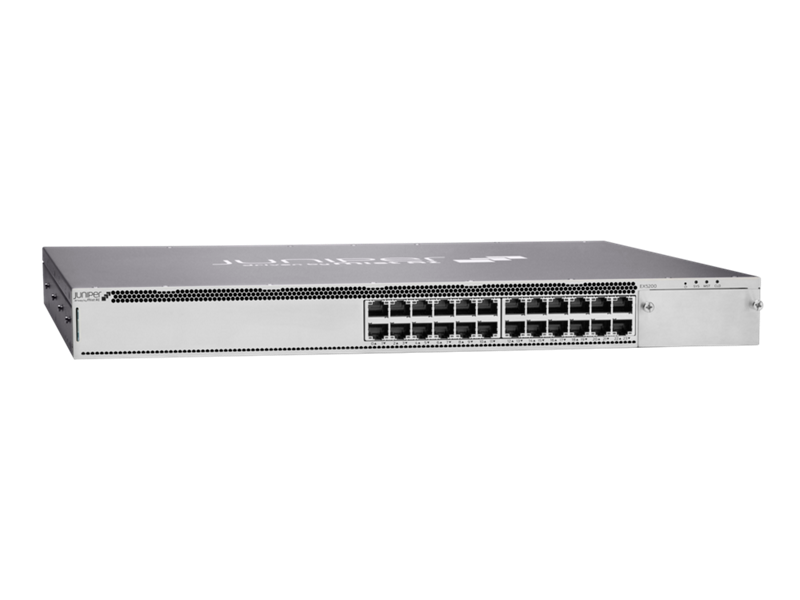

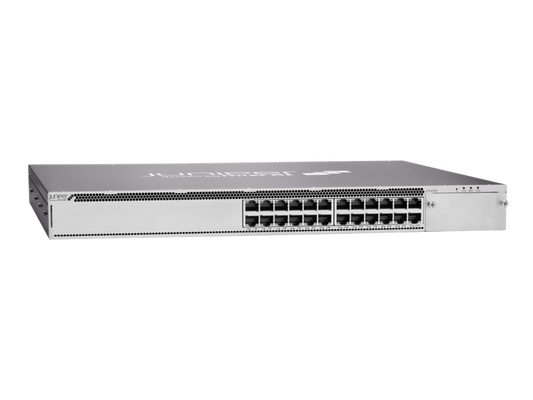

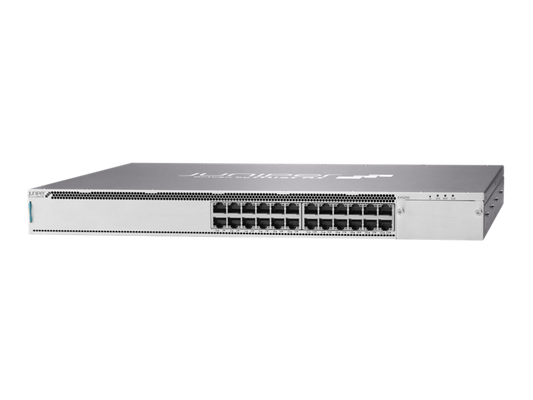

| Form | EX5200-24T |
| Differentiatior |
24x Multigigabit 550W 2x Fan AFO |
| Power consumption | Depending on the model and configuration |
| Input voltage | 100–120V / 200–240V |

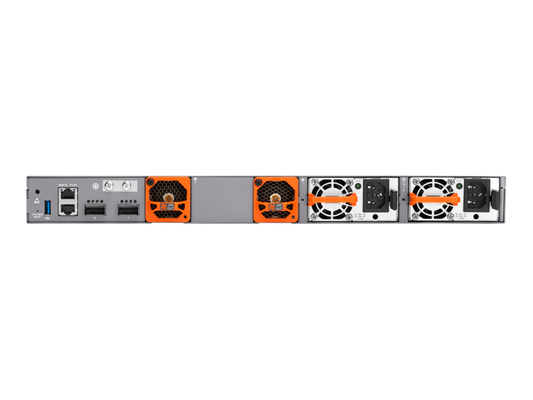

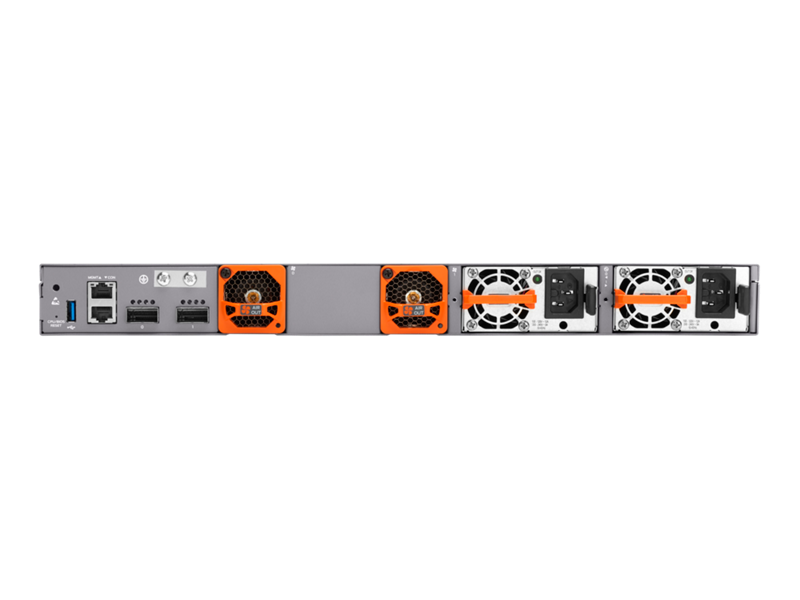

| Ports | 24x 100M/1G/2.5G/5G/10GbE multigigabit ports 2x QSFP28 ports for uplink or virtual chassis Optional 2x 100GbE or 8x 25GbE port uplink modules available and sold separately |
| Switching capacity | 640 Gbps (unidirectional) 1280 Gbps (bidirectional) |
| Stacking capabilities | Up to 10 member virtual chassis |
| Throughput | 952.38 Mpps at 64 byte packets |
| Memory and processor |
8 GB RAM 2.3 GHz quad-core Intel® x86 CPU |
| Power supply |
550W AC AFO |
| PoE capability |
Not applicable. |
| Fans |
2 Air Flow Out (AFO) fans |
