System Capacity: | 12 Tbps | Dimensions (W X H X D): | 17.37 X 27.75 X 23 In (44.11 X 70.49 X 58.42 Cm) |
---|---|---|---|
Weight Fully Loaded: | 334 Lb/151.6 Kg | Weight Unloaded: | 150 Lbs/68.1 Kg |
Default Memory: | 2x16 MB NOR Flash Storage; 64 GB Of DDR4 RAM; 2x50 GB SSD | Number Of Cores: | 6 Cores |
Rack Units: | 16 | Slots: | 11 MPCs |
Maximum System Throughput: | 12 Tbps | ||
Highlight: | Juniper MX960 routing platform,FlexE support router,Layer 2 VPN services router |

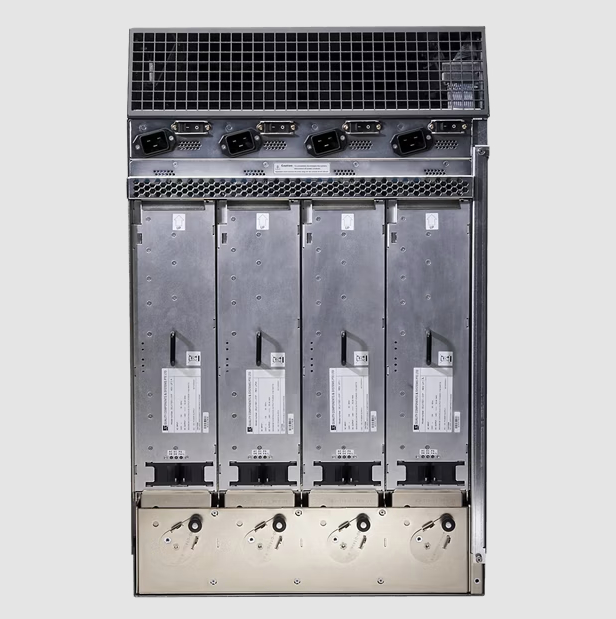

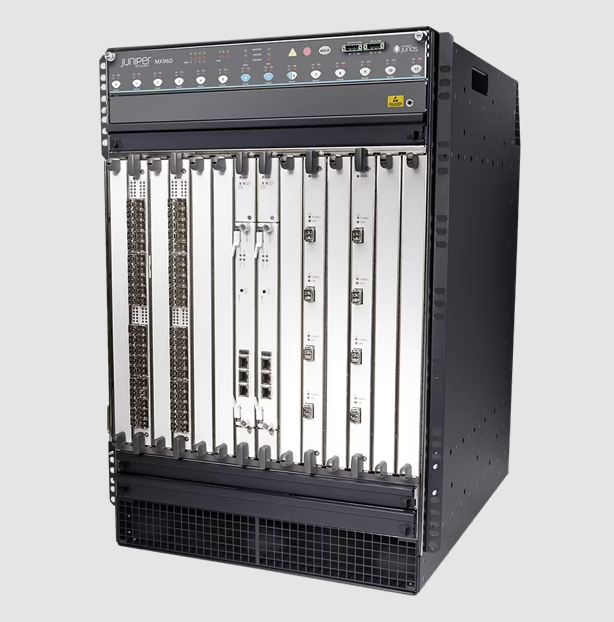

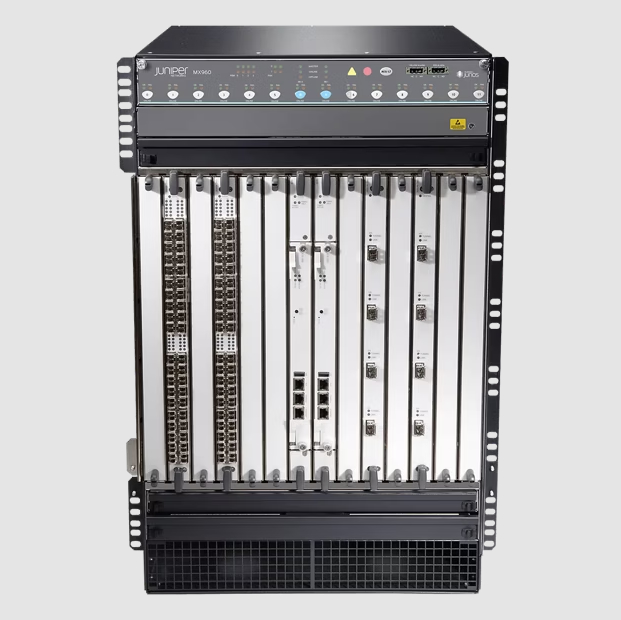

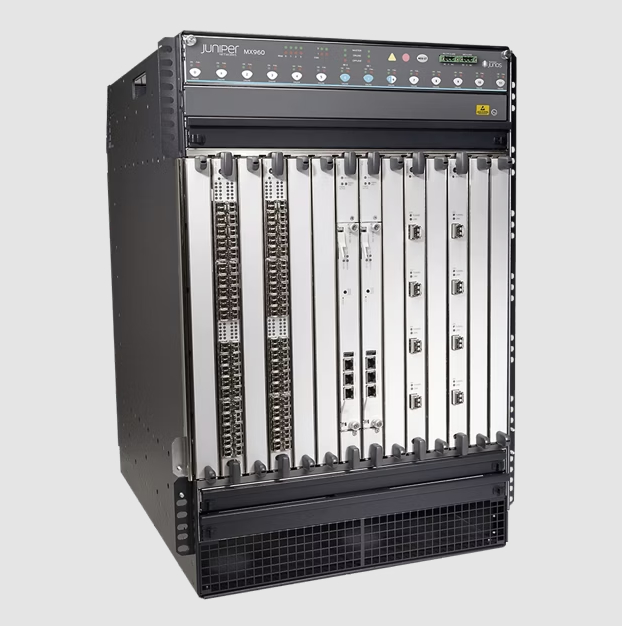

The SDN-enabled MX960 Universal Routing Platform brings field-proven performance and scale to the world’s largest service provider, cable, mobile, and data center networks. It’s packed with highly scalable routing, switching, security, and service features that enable revenue-generating applications. It can help you consolidate networks and services with support for Flexible Ethernet (FlexE), diverse Layer 2 and Layer 3 VPN services, and advanced broadband network gateway (BNG) functions.
Powered by the Junos operating system and programmable Juniper Trio 5 silicon, the MX960 is deployed in mission-critical service provider and enterprise networks worldwide. It helps network operators digitally transform their networks—and their business—to keep pace with rapidly changing market conditions.
System capacity | 12 Tbps |
Dimensions (W x H x D) |
17.37 x 27.75 x 23 in (44.11 x 70.49 x 58.42 cm) |
Weight fully loaded | 334 lb/151.6 kg |
Weight unloaded |
150 lbs/68.1 kg |
Default memory | 2x16 MB NOR flash storage; 64 GB of DDR4 RAM; 2x50 GB SSD |
Number of cores |
6 cores |
Rack units | 16 |
Slots |
11 MPCs |
Maximum system throughput | 12 Tbps |
