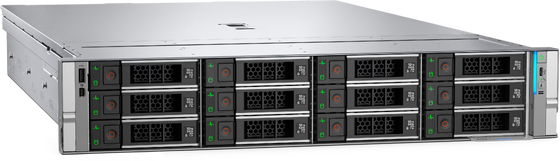

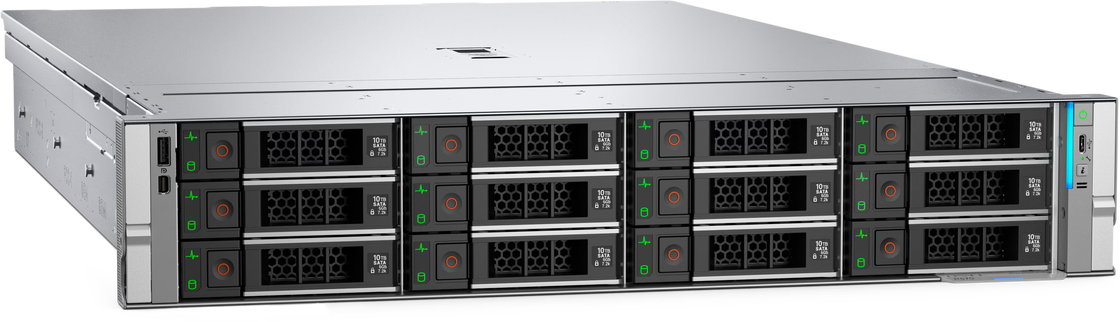

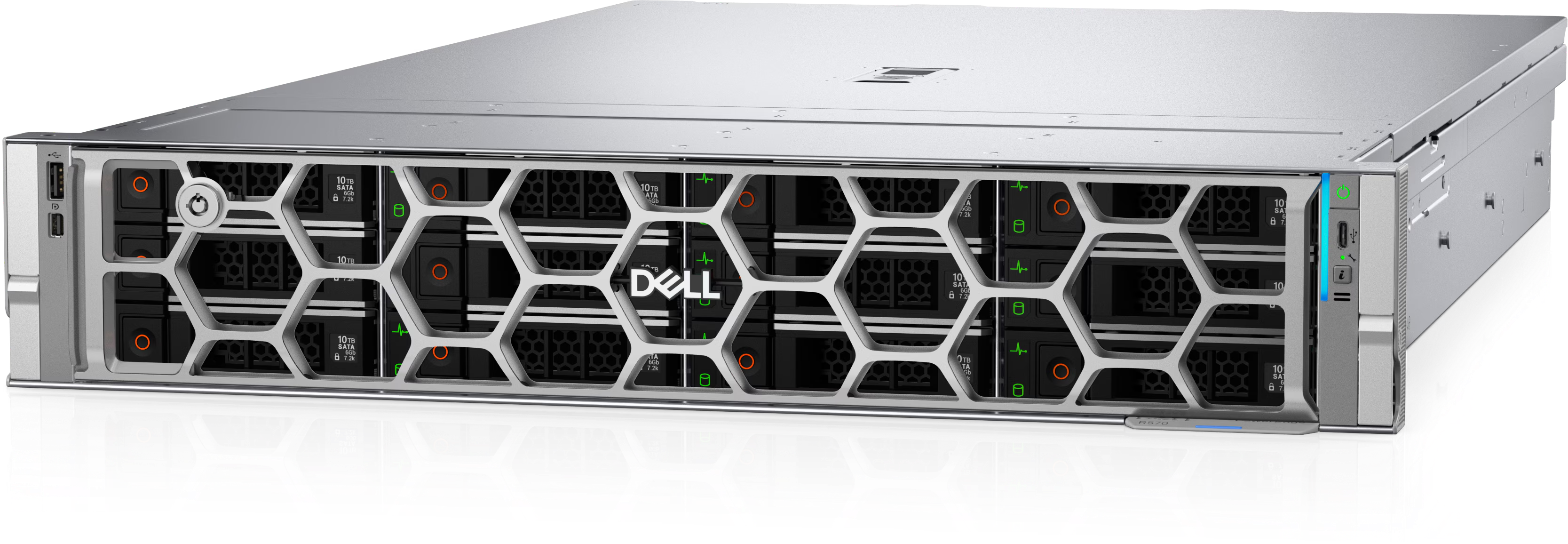

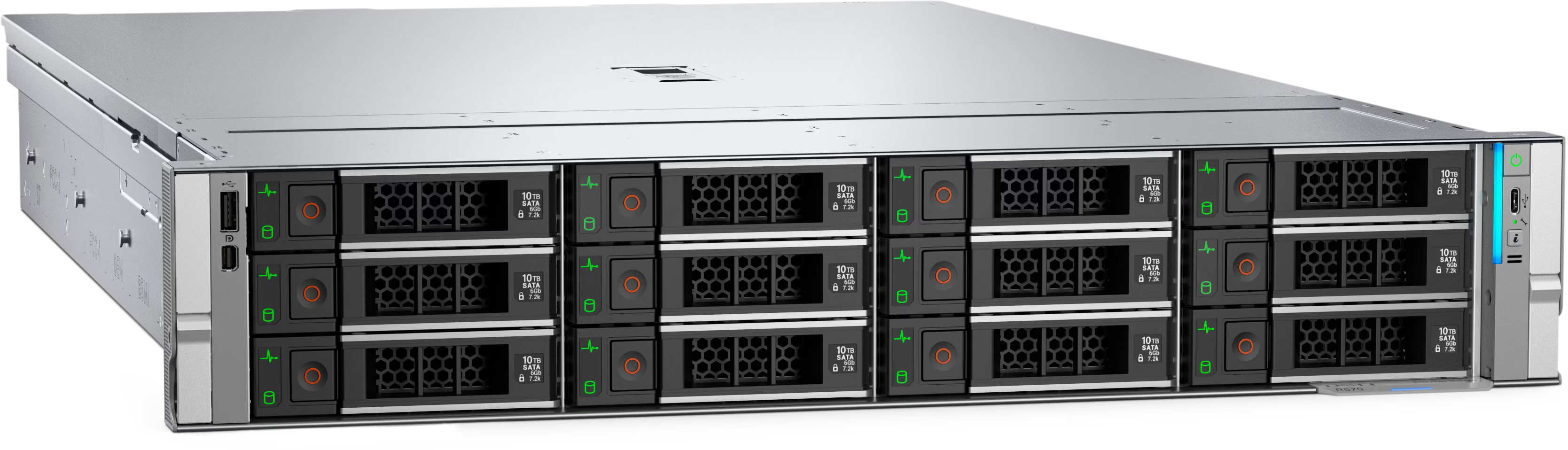

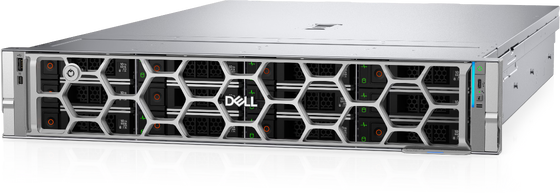

PowerEdge R5715 2U Rack Server One 5th Generation AMD EPYC 9005 Series processor with up to 32 cores per processor.

Feature

R5715

Processor

One 5th Generation AMD EPYC 9005 Series processor with up to 32 cores per processor.

Memory

• 24 DDR5 DIMM slots,supporting RDIMM, up to 64 GB per DIMM, maximum memory capacity of 1.5TB,with speeds up to 5200 MT/s.

• Supports registered ECC DDR5 DIMMs only.

Storage controllers

•Internal Controllers (RAID):PERC H365i, H965i

•Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DCMHS)

• External HBAs (non-RAID):N/A

Drive Bays

Front bays:

• 12 x 3.5-inch SAS/SATA

• 16 x 2.5-inch SAS/SATA

Power Supplies

• Platinum 800 W, 1100 W

• Titanium: 800 W, 1100 W

• FTR supported

Cooling Options

• Air cooling

Fans

• Up to six hot plug fans

Dimensions

• Height – 86.8 mm(3.41 inches)

• Width – 482.0 mm(18.97 inches)

• Depth – 802.4 mm (31.59 inches) with bezel - 801.51mm (31.55 inches) without bezel

Form Factor

2U rack server

Embedded Management

• iDRAC 10

• iDRAC Direct

• iDRAC RESTful API with

Redfish

• Racadm CLI

• Quick Sync 2 wireless module

Ports

Front Ports

• 1 x USB 2.0 Type-A (optional LCP KVM)

• 1 x USB 2.0 Type-C (HOST/BMC Direct)

• 1 x MiniDisplay port (optional LCP KVM)

Rear Ports

• Two USB 3.1 Type-A

• 1 x VGA

• 1 Gb dedicated BMC Ethernet port

Internal Port

• 1 x USB 3.1 Type-A
