H3C S9850-32H Data Center Switch with 32 × 100G QSFP28 Ports, 6.4 Tbps Switching Capacity, and 2024 Mpps Forwarding Capacity

H3C S9850 high-density intelligent series switches is developed for data centers and cloud computing networks. It provides powerful hardware forwarding capacity and abundant data center features. It provides up to 32*100G ports and 2 out-of-band management ports (one fiber port and one copper port). The 100G ports are 100G/40G autosensing and each can be split into four interfaces. This enables the switch to provide up to 128*25G or 10G ports. The switch supports modular power supplies and fan trays. By using different fan trays, the switch can provide field-changeable airflows.

The switch is an ideal product for high-density 100GE or 25GE accessing and aggregation at data centers and cloud computing networks. It can also operate as a TOR access switch on an overlay or integrated network.

S9850-32H

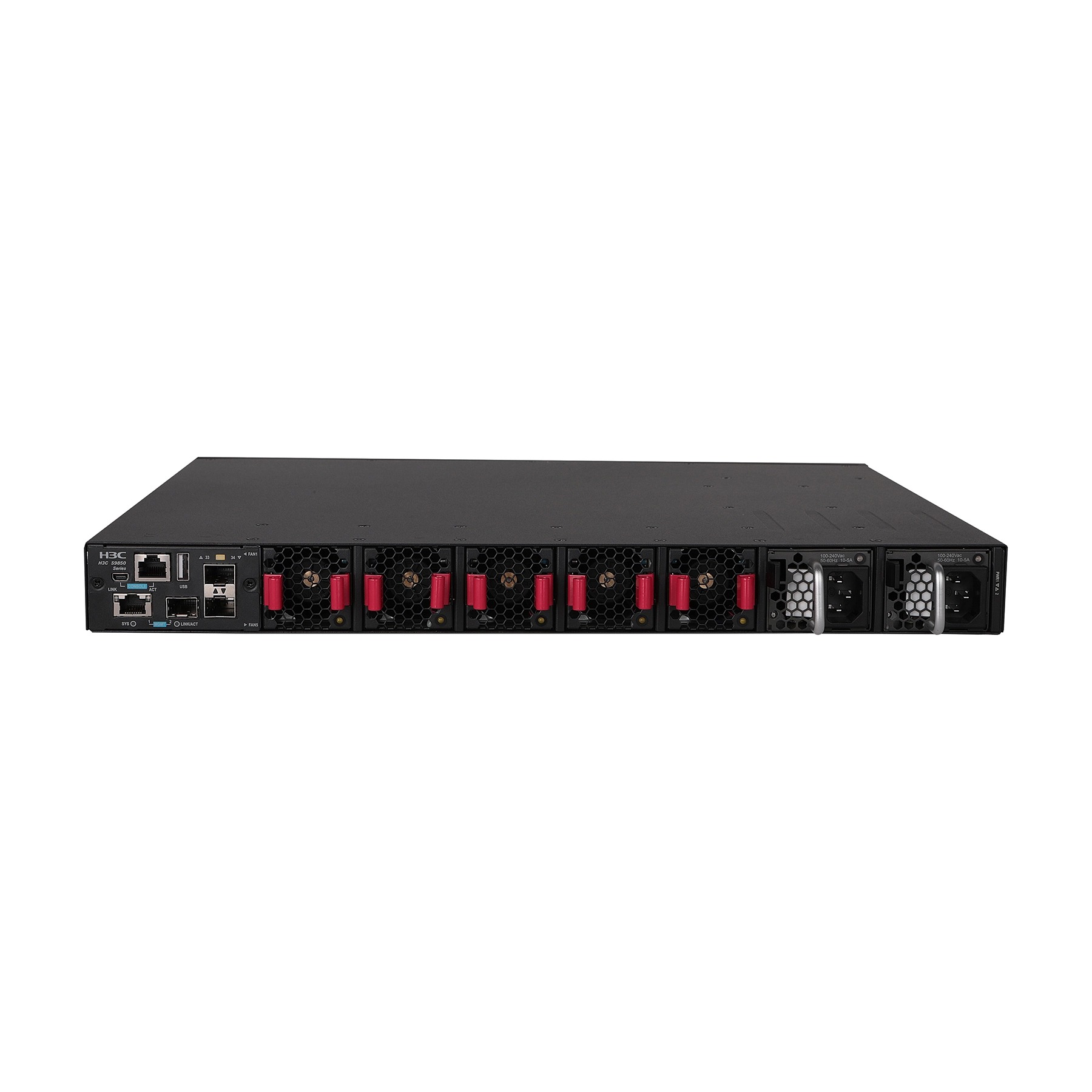

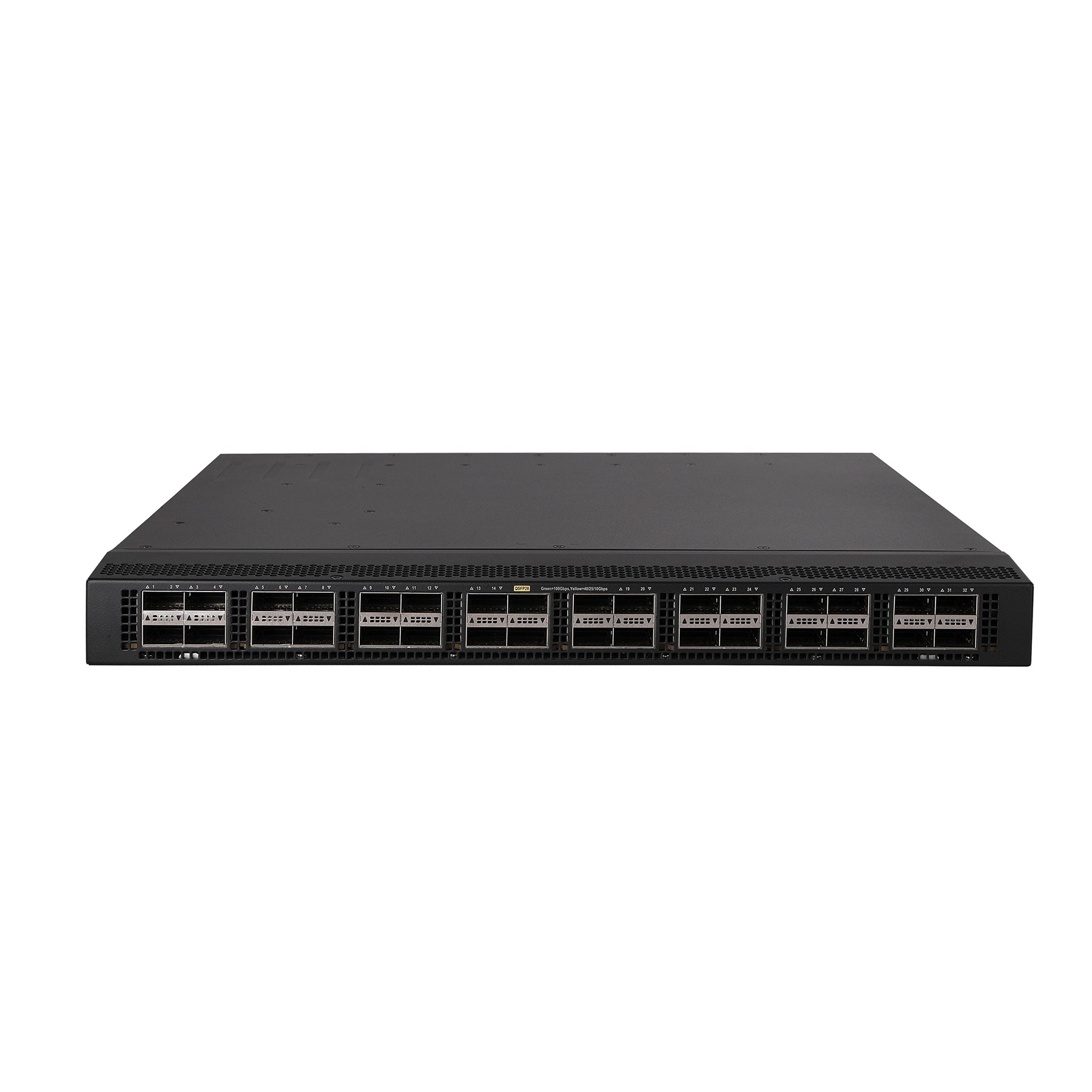

The switch provides 32 × 100G QSFP28 ports, 2 × 1G SFP ports, 5 × fan tray slots, 2 × out-of-band management ports, 1 × mini USB console port, and 1 × USB port. The switch uses 650W AC or DC removable power modules and supports 1+1 power module redundancy.
