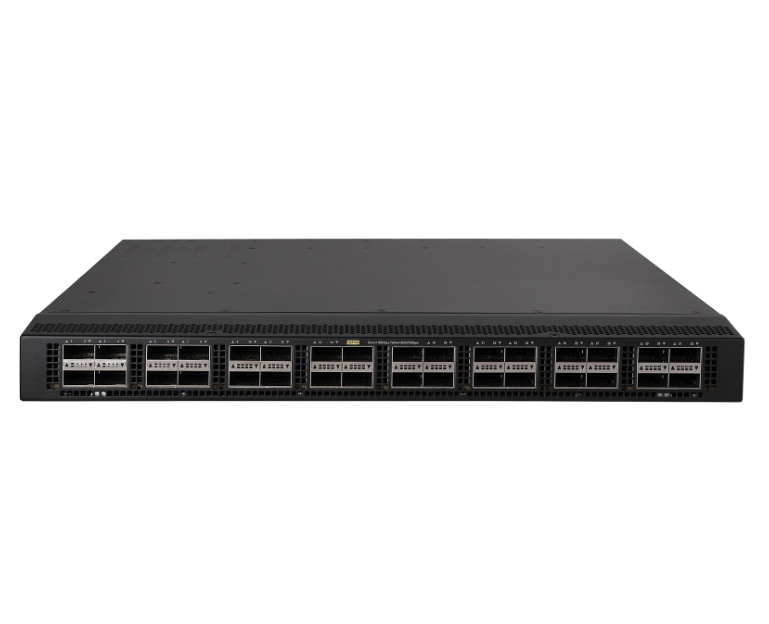

H3C S9850-32H witch provides 32 × 100G QSFP28 ports, 2 × 1G SFP ports, 5 × fan tray slots, 2 × out-of-band management ports, 1 × mini USB console port, and 1 × USB port

H3C S9850-32H witch provides 32 × 100G QSFP28 ports, 2 × 1G SFP ports, 5 × fan tray slots, 2 × out-of-band management ports, 1 × mini USB console port, and 1 × USB port
H3C S9850-32H witch provides 32 × 100G QSFP28 ports, 2 × 1G SFP ports, 5 × fan tray slots, 2 × out-of-band management ports, 1 × mini USB console port, and 1 × USB port H3C S9850-32H witch provides 32 × 100G QSFP28 ports, 2 × 1G SFP ports, 5 × fan tray slots, 2 × out-of-band management ports, 1 × mini USB console port, and 1 × USB port

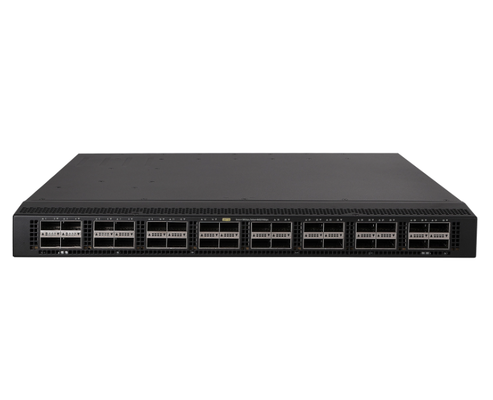

Large Image :  H3C S9850-32H witch provides 32 × 100G QSFP28 ports, 2 × 1G SFP ports, 5 × fan tray slots, 2 × out-of-band management ports, 1 × mini USB console port, and 1 × USB port

Product Details:
Place of Origin: China
Brand Name: H3C
Certification: all
Model Number: S9850-32H
Payment & Shipping Terms:
Minimum Order Quantity: ask
Price: ask
Delivery Time: 5-8 work days
Payment Terms: ask
Supply Ability: 500pcs/months
Contact Now

H3C S9850-32H witch provides 32 × 100G QSFP28 ports, 2 × 1G SFP ports, 5 × fan tray slots, 2 × out-of-band management ports, 1 × mini USB console port, and 1 × USB port

Description
Highlight:

H3C S9850-32H switch 100G QSFP28 ports

,

H3C S9850-32H switch out-of-band management ports

,

H3C S9850-32H switch mini USB console port

Hardware specifications

Item S9850-4C S9850-32H S9850-32H-G
Chassis LS-9850-4C /LS-9850-4C-H1 LS-9850-32H-H1 LS-9850-32H-G
Dimensions (H × W × D) 88.1 × 440 × 660 mm (3.47 × 17.32 × 25.98 in) 43.6 × 440 × 460 mm (1.72 × 17.32 × 18.11 in) 43.6 × 440 × 400 mm (1.72 × 17.32 × 15.75 in)
Weight(Full loaded) ≤ 27 kg (59.53 lb) ≤ 15 kg (33.07 lb) ≤8kg(17.64 lb)
Serial console port 1 1 1
Out-of-band management port One GE copper port and one GE fiber port One GE copper port and one GE fiber port One GE fiber port
Mini USB console port 1 1 -
USB port 1 1 1
QSFP-DD port     4(max)
QSFP28/QSFP+ / 32 32(max)
SFP port 2 2 -
Expansion slot 4 - -
CPU LS-9850-4C-H1: 4 cores, 2.2 GHz

LS-9850-32H-A:4 cores, 2.4 GHz

LS-9850-32H-H1:4 cores, 2.2 GHz

 FT 2000, 2 cores, 2.2 GHz
Flash/SDRAM 8GB/8GB

LS-9850-32H-A:4GB/8GB

LS-9850-32H-H1:8GB/8GB

 2GB/4GB
Latency < 1μs (64-byte ) < 1μs (64-byte )

25GE< 3 μs(64 byte)

100GE< 1.2 μs(64 byte)
Switching capacity 6.4 Tbps 6.4 Tbps 6.4 Tbps
Forwarding capacity 2400 Mpps 2024 Mpps 1020Mpps
Buffer 32M 32M 36M
AC-input voltage 90v to 264v 90v to 264v 90V~290V
DC-input voltage –40v to –72v –40v to –72v -36V~-72V
Power module slot 4 2 2
Fan tray slot 2 5 5
Air flow direction From front to rear or from rear to front From front to rear or from rear to front From front to rear or from rear to front
Typical power consumption

With four LSWM18CQ modules: 355 W

With four LSWM18CQMSEC modules: 443 W

With four LSWM116Q modules: 311 W

With four LSWM18QC modules: 251 W

With four LSWM124XG2Q modules: 363 W

With four LSWM124XGT2Q modules: 487 W

With four LSWM124XG2QFC modules: 363 W

With four LSWM124XG2QL modules: 275 W

With four LSWM124TG2H modules: 355 W

With four LSWM116FC modules: 311 W

Single AC: 198 W

Dual AC: 210 W

Single DC: 197 W

Dual DC: 208 W

Single AC: 222 W

Dual AC: 227 W

Single DC: 232W

Dual DC: 234W
Maximum power consumption

With four LSWM18CQ modules: 688 W

With four LSWM18CQMSEC modules: 748 W

With four LSWM116Q modules: 616 W

With four LSWM18QC modules: 496 W

With four LSWM124XG2Q modules: 616 W

With four LSWM124XGT2Q modules: 868 W

With four LSWM124XG2QFC modules: 616 W

With four LSWM124XG2QL modules: 520 W

With four LSWM124TG2H modules: 688 W

With four LSWM116FC modules: 616 W

Single AC input: 376 W

Dual AC inputs: 385 W

Single DC input: 373 W

Dual DC inputs: 377 W

Single AC input: 400 W

Dual AC inputs: 390 W

Single DC input: 426 W

Dual DC inputs: 414 W


Typical thermal consumption

With four LSWM18CQ modules: 1211 BTU/hr

With four LSWM18CQMSEC modules: 1512 BTU/hr

With four LSWM116Q modules: 1061 BTU/hr

With four LSWM18QC modules: 856 BTU/hr

With four LSWM124XG2Q modules: 1239 BTU/hr

With four LSWM124XGT2Q modules: 1662 BTU/hr

With four LSWM124XG2QFC modules: 1239 BTU/hr

With four LSWM124XG2QL modules: 938 BTU/hr

With four LSWM124TG2H modules: 1211 BTU/hr

With four LSWM116FC modules: 1061 BTU/hr

Single AC input: 676 BTU/hr

Dual AC inputs: 717 BTU/hr

Single DC input: 672 BTU/hr

Dual DC inputs: 710 BTU/hr

Single AC: 757 BTU/hr

Dual AC: 775 BTU/hr

Single DC: 792 BTU/hr

Dual DC: 789 BTU/hr
MTBF(years) 45.8 27.2 64.02
MTTR(hour) 1 1 1
Operating temperature 0°C to 45°C (32°F to 113°F) 0°C to 45°C (32°F to 113°F) 0°C to 45°C (32°F to 113°F)
Operating humidity 5% to 95%, noncondensing 5% to 95%, noncondensing 5% to 95%, noncondensing
