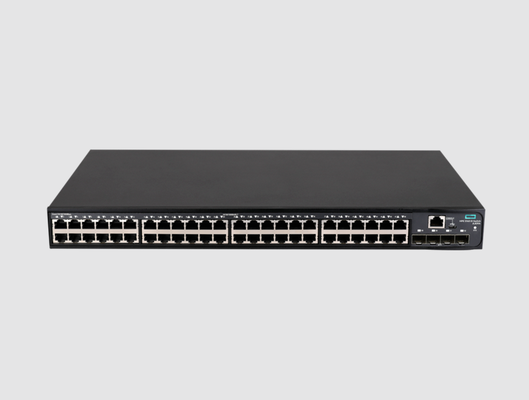

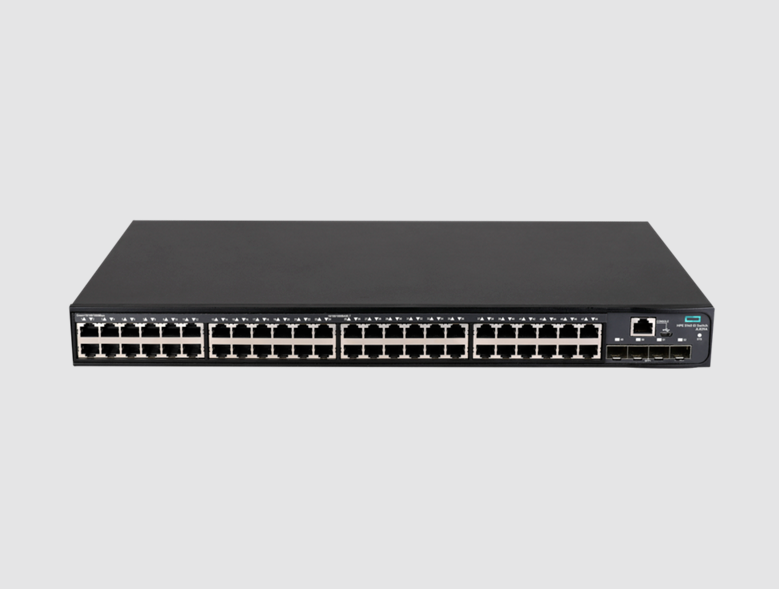

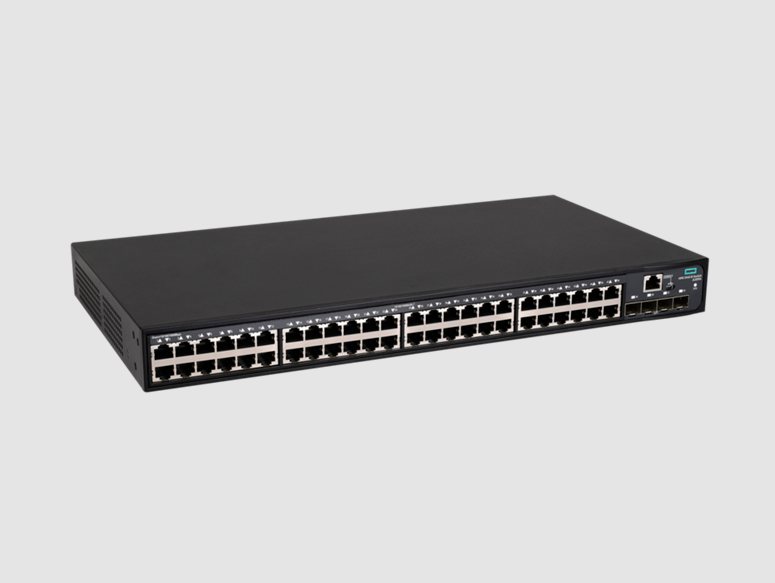

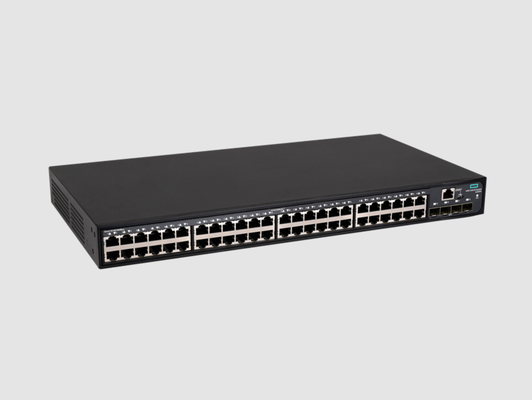

Name: Aruba JL829A Network Switch with 176 Gbps Switching Capacity 370W PoE+ and 131 Mpps Throughput
Brand: Beijing Core-Net Techonology Co., Limited
SKU: JL829A
Price: 2,850.00 USD
Availability: InStock

Detail Information

Power Consumption:	44W (Maximum), 38W (Idle)	Switching Capacity:	176 Gbps
Stacking Capabilities:	IRF 9 Switches	Throughput:	131 Mpps
Memory And Processor:	512 MB SDRAM, 256 MB Flash	Power Supply:	At Least 1 Power Supply Is Required (not Included, Must Be Ordered Separately)
PoE Capability:	370W PoE+ Maximum, Depending On Model	Weight:	3.5 Kg (7.72 Lbs)
Dimensions:	4.36 X 44 X 23 Cm (1.72 X 17.32 X 9.1 In)
Highlight:	Aruba JL829A network switch , 176 Gbps switching capacity switch , 370W PoE+ network switch

Product Description

Power consumption:

44W (Maximum), 38W (Idle)

Note: Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Heat dissipation:

Maximum: 130/153 BTU/hr. (137.15/161.42 kJ/hr.)

Input voltage:

AC Voltage: 100 VAC–240 VAC

Ports:

48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T);
Duplex: Ports 1–48 support 10BASE-T/ 100BASE-TX, 1000BASE-T (full only);
4 SFP+ fixed 1000/10000 SFP+ ports

Latency:

1000 Mb latency: < 5 µs
10 Gbps latency: < 3 µs

Routing capabilities:

Table Size: 1024 entries;
MAC address: 16,384 entries IPv6 Ready Certified

Switching capacity:

176 Gbps

Stacking capabilities:

IRF 9 switches

Throughput:

131 Mpps

Memory and processor:

512 MB SDRAM, 256 MB flash

Power supply:

At least 1 power supply is required (not included, must be ordered separately)

PoE capability:

370W PoE+ Maximum, depending on model

Operating temperature:

23°F to 113°F (–5°C to 45°C)

Management features:

HPE Aruba Networking IMC - Intelligent Management Center; SmartMC; Command-line interface; Web browser; SNMP manager

Warranty:

Limited lifetime warranty.

Weight:

3.5 kg (7.72 lbs)

Dimensions:

4.36 x 44 x 23 cm (1.72 x 17.32 x 9.1 in)

Aruba JL829A Network Switch with 176 Gbps Switching Capacity 370W PoE+ and 131 Mpps Throughput 0

Tag:

Place of Origin:	China
Brand Name:	HPE
Model Number:	JL829A

Minimum Order Quantity:	1/set
Delivery Time:	2-3 work days
Payment Terms:	T/T
Supply Ability:	50pcs per week
