Cisco Catalyst 9300X C9300L-24T-4G Switch with 24 Ports Data 4x 1G Fixed Uplinks and 56 Gbps Switching Capacity

Large Image : Cisco Catalyst 9300X C9300L-24T-4G Switch with 24 Ports Data 4x 1G Fixed Uplinks and 56 Gbps Switching Capacity

Product Details:

Place of Origin:	China
Brand Name:	Cisco
Certification:	ce
Model Number:	C9300X-24Y

Payment & Shipping Terms:

Minimum Order Quantity:	2 pieces
Packaging Details:	BOX
Delivery Time:	3-6days
Payment Terms:	L/C,T/T

Contact Now

Cisco Catalyst 9300X C9300L-24T-4G Switch with 24 Ports Data 4x 1G Fixed Uplinks and 56 Gbps Switching Capacity

Description

Total 10/100/1000, Multigigabit Copper Or SFP Fiber:	24 Ports Data	Uplink Configuration:	4x 1G Fixed Uplinks
Default AC Power Supply:	350W AC	Switching Capacity:	56 Gbps
Switching Capacity With Stacking:	376 Gbps	Forwarding Rate:	41.66 Mpps
Forwarding Rate With Stacking:	279.76 Mpps	Dimensions (H X W X D) In Inches（Chassis Only ）:	1.73 X 17.5 X 16.1
Highlight:	24 ports data Cisco Catalyst 9300X Switch , 4x 1G fixed uplinks Catalyst 9300 Series Switch , 56 Gbps switching capacity C9300L-24T-4G Switch

Cisco Catalyst 9300X C9300L-24T-4G Switch

Cisco Catalyst™ 9300 Series Switches are Cisco's premier stackable enterprise access switching platform. As part of the Catalyst 9000 family, these switches are engineered to transform your network infrastructure for today's hybrid environments, where workplaces are distributed, endpoints are diverse, and applications are hosted across multiple locations.

The Catalyst 9300 Series, including the Catalyst 9300X models, delivers continuous innovation that enables you to reimagine connections, strengthen security, and enhance experiences for your hybrid workforce—regardless of organization size. With Catalyst 9300 Series switches, you maintain full control over network management, choosing between on-premises, virtual, or cloud-based solutions.

Technical Specifications

Model	C9300L-24T-4G
Total 10/100/1000, Multigigabit copper or SFP fiber	24 ports data
Uplink configuration	4x 1G fixed uplinks
Default AC power supply	350W AC
Switching capacity	56 Gbps
Switching capacity with stacking	376 Gbps
Forwarding rate	41.66 Mpps
Forwarding rate with stacking	279.76 Mpps
Dimensions (H x W x D) in inches (Chassis only)	1.73 x 17.5 x 16.1
Dimensions (H x W x D) in inches (With default power supply)	1.73 x 17.5 x 17.7
Dimensions (H x W x D) in inches (With 1100W power supply)	1.73 x 17.5 x 19.2

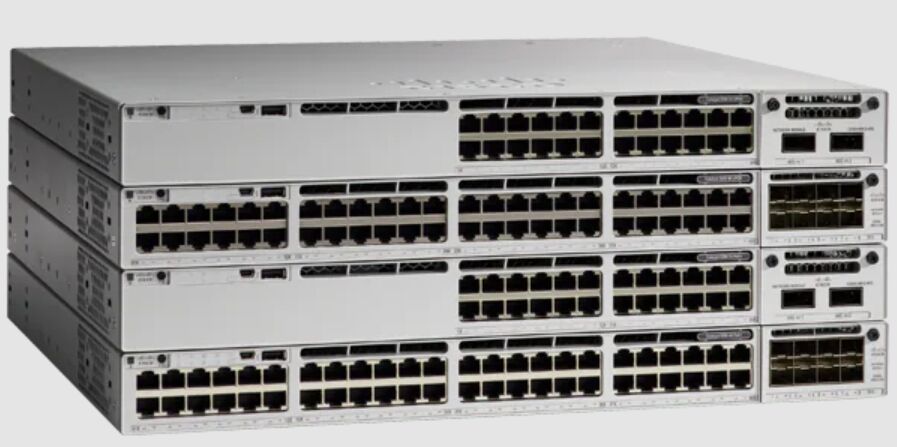

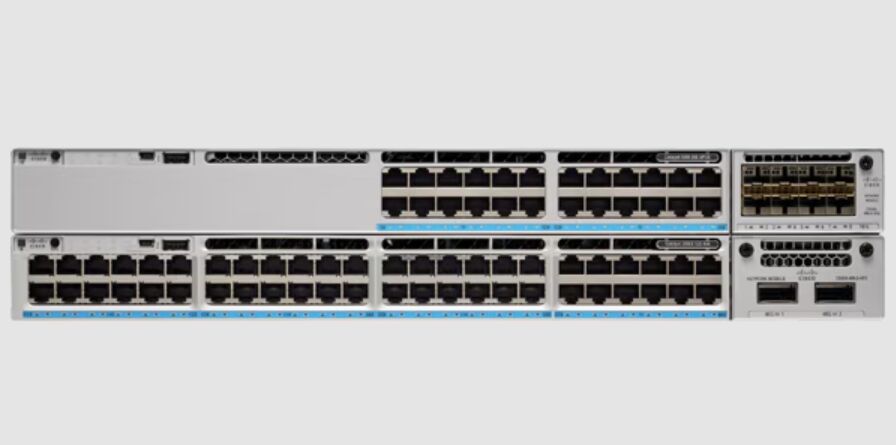

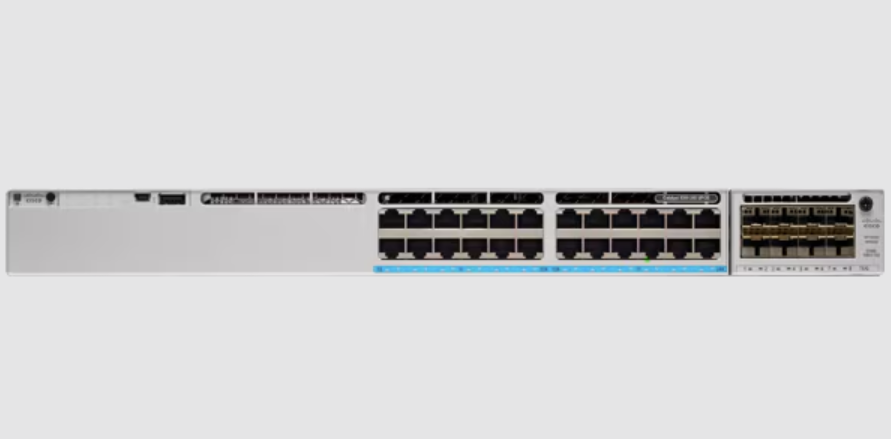

Product Images
