HUAWEI CloudEngine S5735-S48S4XE-V2 Network Switch with 48 x GE SFP Ports 4 x 10GE SFP+ Ports and 2 x Dedicated Stack Ports

Basic Information
Place of Origin: China
Brand Name: HUAWEI
Model Number: S5735-S48S4XE-V2
Minimum Order Quantity: 1/set
Delivery Time: 2-3 work days
Payment Terms: T/T
Supply Ability: 50pcs per week
Detail Information
Product Model: CloudEngine S5735-S48S4XE-V2 Forwarding Performance: 168 Mpps
Switching Capacity: 224 Gbps/520 Gbps Power Supply Type: 1+1 Power Supply Backup
Memory(RAW): 2GB Chassis Height: 1U
Chassis Weight(including Packaging): 7.1KG
Highlight:

48 x GE SFP ports HUAWEI CloudEngine Switch

,

4 x 10GE SFP+ ports HUAWEI Network Switch

,

2 x Dedicated Stack Ports HUAWEI S5735-S48S4XE-V2


Product Description

HUAWEI CloudEngine CloudEngine S5735-S48S4XE-V2
The Huawei CloudEngine S5735-S-V2 series all-optical switches are built on a next-generation high-performance hardware platform with a unified software platform. These switches deliver enhanced Layer 3 features, simplified Operations and Maintenance (O&M), flexible Ethernet networking, and mature IPv6 capabilities. Ideal for enterprise campus access and aggregation, as well as data center access scenarios.
Key Specifications
Product Model CloudEngine S5735-S48S4XE-V2
Forwarding Performance 168 Mpps
Switching Capacity 224 Gbps/520 Gbps

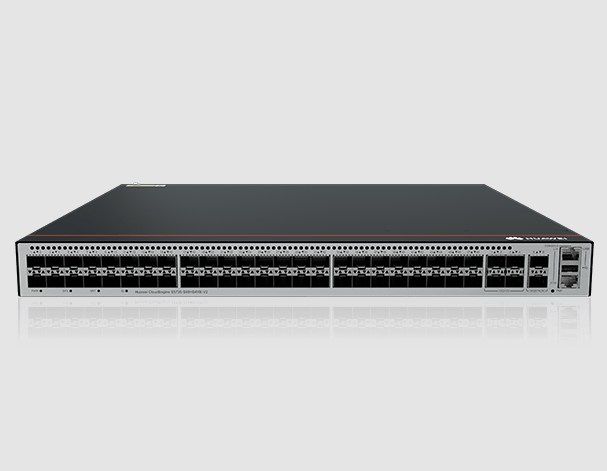

Fixed Ports 48 x GE SFP ports, 4 x 10GE SFP+ ports, 2 x dedicated stack ports
Power Supply Type 1+1 power supply backup
Dimensions (H x W x D) 43.6mm × 442mm × 420mm
Chassis Height 1U
Chassis Weight (including packaging) 7.1KG
Memory (RAW) 2GB
Advanced Features
  • MAC Features: IEEE 802.1D compliant MAC address auto-learning and aging, static/dynamic/blackhole MAC address entries, packet filtering based on source MAC addresses
  • VLAN Features: Support for 4094 VLANs, Voice VLAN, MUX VLAN, VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
  • IP Routing: Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, and BGP4+
