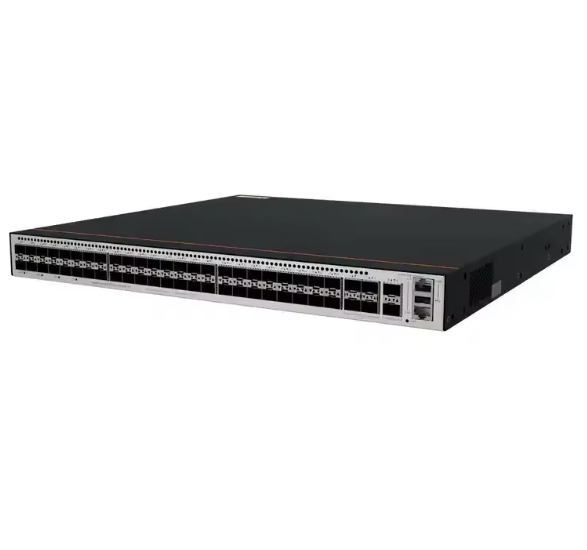

HUAWEI CloudEngine S5735-S48HS4XE-V2 Hybrid Optical-Electrical Switch with 168 Mpps Forwarding Performance 224 Gbps/520 Gbps Switching Capacity and 90 W PoE++

Basic Information

Place of Origin:	China
Brand Name:	HUAWEI
Model Number:	S5735-S48HS4XE-V2

Minimum Order Quantity:	1/set
Delivery Time:	2-3 work days
Payment Terms:	T/T
Supply Ability:	50pcs per week

Get Best Price Contact Now

Detail Information

Product Model:	CloudEngine S5735-S48HS4XE-V2	Forwarding Performance:	168 Mpps
Switching Capacity:	224 Gbps/520 Gbps	PoE:	Supported, 90 W PoE++
Memory（RAW）:	2GB	Chassis Height:	1U
Chassis Weight（including Packaging）:	7.85KG	Power Supply Type:	1+1 Power Supply Backup
Highlight:	168 Mpps Forwarding Performance HUAWEI CloudEngine Switch , 224 Gbps/520 Gbps Switching Capacity Hybrid Optical-Electrical Switch , 90 W PoE++ HUAWEI S5735-S48HS4XE-V2

Product Description

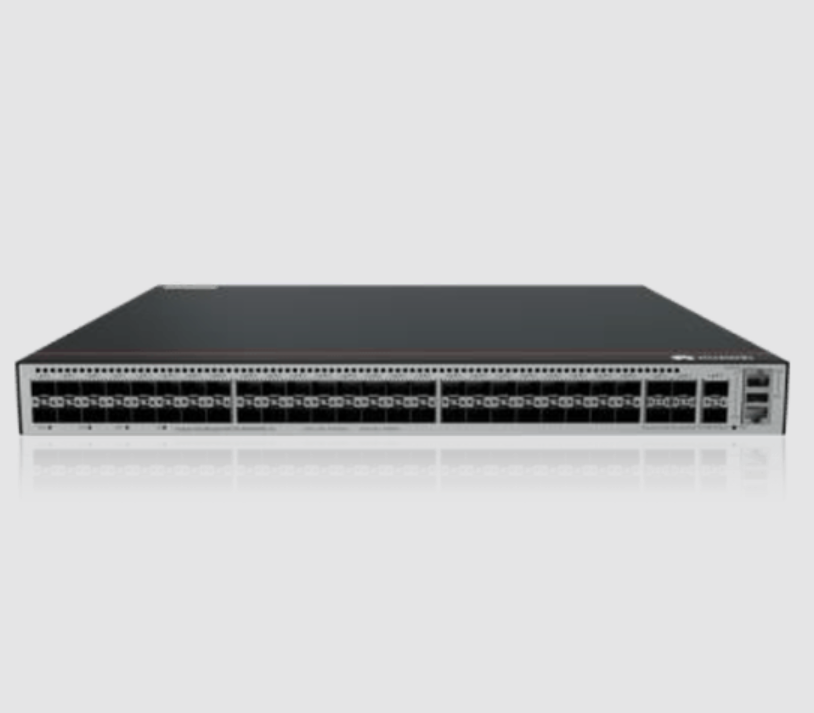

HUAWEI CloudEngine S5735-S48HS4XE-V2 Switch

Based on the next-generation high-performance hardware and Huawei's Versatile Routing Platform (VRP), the CloudEngine S5735-S-V2 series hybrid optical-electrical switches support enhanced Layer 3 features, easy O&M, flexible Ethernet networking, and mature IPv6 features. They can be widely used in enterprise campus access and aggregation, data center access, and many other scenarios.

Product Model	CloudEngine S5735-S48HS4XE-V2
Forwarding Performance	168 Mpps
Switching Capacity	224 Gbps/520 Gbps
Fixed Ports	48 x GE SFP ports 2 x DB50 ports 4 x 10 GE SFP+ ports 2 x 12GE stack ports
PoE	Supported, 90 W PoE++
Power supply type	1+1 power supply backup
MAC Features	MAC address auto-learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses Interface-based MAC address learning limiting
VLAN	4094 VLANs Voice VLAN MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
IP Routing	Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, and VRRP6
Dimensions (H x W x D,mm)	43.6mm442mm420mm
Chassis height	1U
Chassis weight (including packaging)	7.85KG
Memory (RAW)	2GB
