HUAWEI OceanStor 5510 V6 Hybrid Flash Storage With a maximum of 16 controllers

Name: HUAWEI OceanStor 5510 V6 Hybrid Flash Storage With a maximum of 16 controllers
Brand: Beijing Core-Net Techonology Co., Limited
SKU: OceanStor 5510 V6
Price: 485.00 USD
Availability: InStock

All Products

HPE Storage Server
(135)

Dell EMC Storage Server
(89)

HUAWEI Storage Server
(121)

Lenovo Rack Server
(61)

Cisco Switch and Router
(123)

Supermicro Storage Server
(115)

Juniper Networks Routers
(84)

Inspur Server
(1)

Cisco Server
(8)

H3C Server
(5)

Brodcade Fiber Switch
(22)

Gigabit Ethernet Switch
(18)

Fortinet Fortingate Firewall
(9)

F5 Networks Products
(2)

Rack Server Accessories
(82)

I'm Online Chat Now

HUAWEI OceanStor 5510 V6 Hybrid Flash Storage With a maximum of 16 controllers

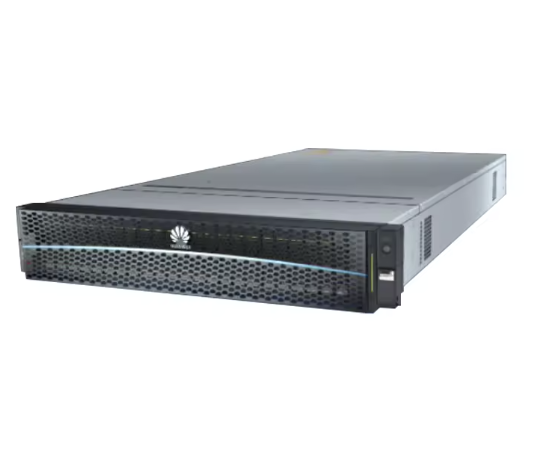

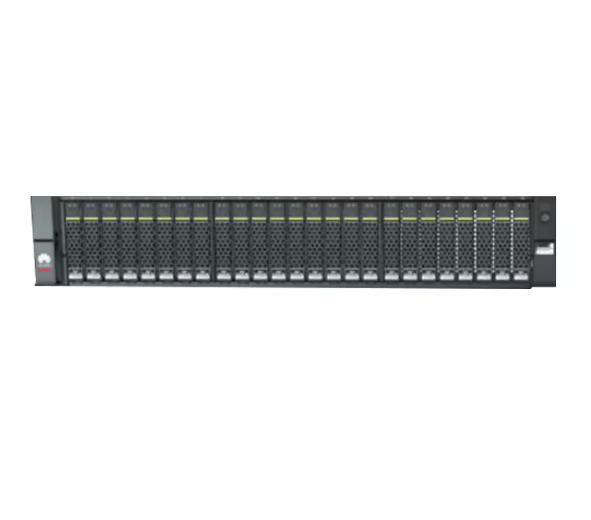

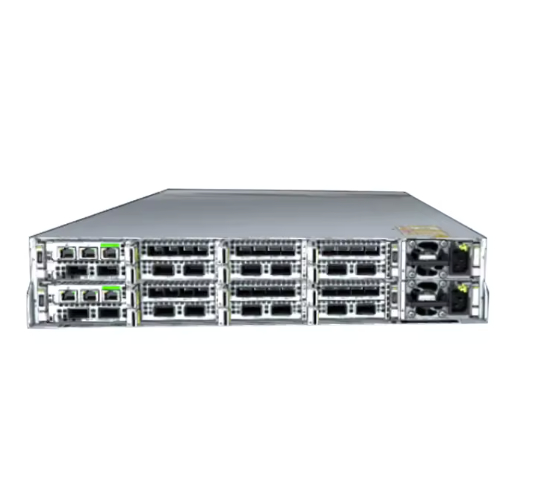

Large Image : HUAWEI OceanStor 5510 V6 Hybrid Flash Storage With a maximum of 16 controllers

Product Details:

Place of Origin:	China
Brand Name:	HUAWEI
Model Number:	OceanStor 5510 V6

Payment & Shipping Terms:

Minimum Order Quantity:	1/set
Delivery Time:	2-3 work days
Payment Terms:	T/T
Supply Ability:	50pcs per week

Contact Now

HUAWEI OceanStor 5510 V6 Hybrid Flash Storage With a maximum of 16 controllers

Description

Maximum Number Of Controllers:	16	Maximum Cache (dual Controllers, Grows With The Expansion Of Controllers):	384 GB To 4 TB
Supported Storage Protocols:	FC, ISCSI, NFS, CIFS, FC-NVMe, NVMe Over RoCE, FTP, HTTP, NDMP, NFS Over RDMA, NVMe Over TCP And S3	Front-end Channel Port Type:	16/32/64G Bps FC，1/10/25/40/100Gbps Ethernet, 25/100Gbps RoCE
Back-end Channel Port Type:	100 Gbps RDMA/SAS 3.0	Hard Disk Type:	NVMe SSD, SAS SSD, SAS, NL-SAS
Maximum Number Of Hot-swappable I/O Modules/controller Enclosures:	12
Highlight:	HUAWEI OceanStor hybrid flash storage , HUAWEI storage server with 16 controllers , HUAWEI flash storage with warranty

Huawei OceanStor 5210/5310/5510/5610 adopt Huawei proprietary algorithms to efficiently deploy data across different media, using Solid-State Disks (SSDs) to accelerate mission-critical data. Comprehensive convergence and value-added features also deliver system efficiency and reliability, while built-in insight modules provide intelligent prediction capabilities.

Such features provide diversified storage services to users, making the systems purpose-built for finance, government, manufacturing, education, healthcare, energy, and media entertainment sectors.

Form	HUAWEI OceanStor 5510 V6 Hybrid Flash Storage
Maximum Number of Controllers	16
Maximum Cache (dual controllers, grows with the expansion of controllers)	384 GB to 4 TB
Supported storage protocols	FC, iSCSI, NFS, CIFS, FC-NVMe, NVMe over RoCE, FTP, HTTP, NDMP, NFS over RDMA, NVMe over TCP and S3
Front-end channel port type	16/32/64G bps FC,1/10/25/40/100Gbps Ethernet, 25/100Gbps RoCE
Back-end channel port type	100 Gbps RDMA/SAS 3.0
Hard disk type	NVMe SSD, SAS SSD, SAS, NL-SAS
Maximum number of hot-swappable I/O modules/controller enclosures	12
