| Place of Origin: | China |
|---|---|
| Brand Name: | Xfusion |
| Model Number: | 2288H V7 |
| Minimum Order Quantity: | 1/set |
| Delivery Time: | 2-3 work days |
| Payment Terms: | T/T |
| Supply Ability: | 50pcs per week |
| Form Factor: | 2U Rack Server | Processors: | 1 Or 2 X 4th Or 5th Gen Intel® Xeon® Scalable Processors With TDP Up To 385 W Per Processor |
|---|---|---|---|
| Memory: | 32 X 5600 MT/s DDR5 DIMMs And 16 X DDR5 DIMMs Supported By The CXL Technology; Up To 48 X DIMMs* | RAID Support: | RAID 0, 1, 10, 1E, 5, 50, 6, Or 60; Optional Supercapacitor For Cache Data Power Failure Protection, RAID Level Migration, Drive Roaming, Self-diagnosis, And Remote Web-based Configuration |
| Network Ports: | Expansion Capability Of Multiple Types Of Networks OCP 3.0 NICs Are Supported. Both Two FlexIO Card Slots Support Two OCP 3.0 NICs, Which Can Be Configured As Required. Hot Swap Is Supported | PCIe Expansion: | Up To 19 X PCIe Slots: 2 X FlexIO Slots Dedicated For OCP 3.0 NICs And 17 X Standard PCIe Expansion Slots*, 8 Slots Of Which Support PCIe 5.0 |
| Highlight: | Xfusion FusionServer 2288H V7 |
||

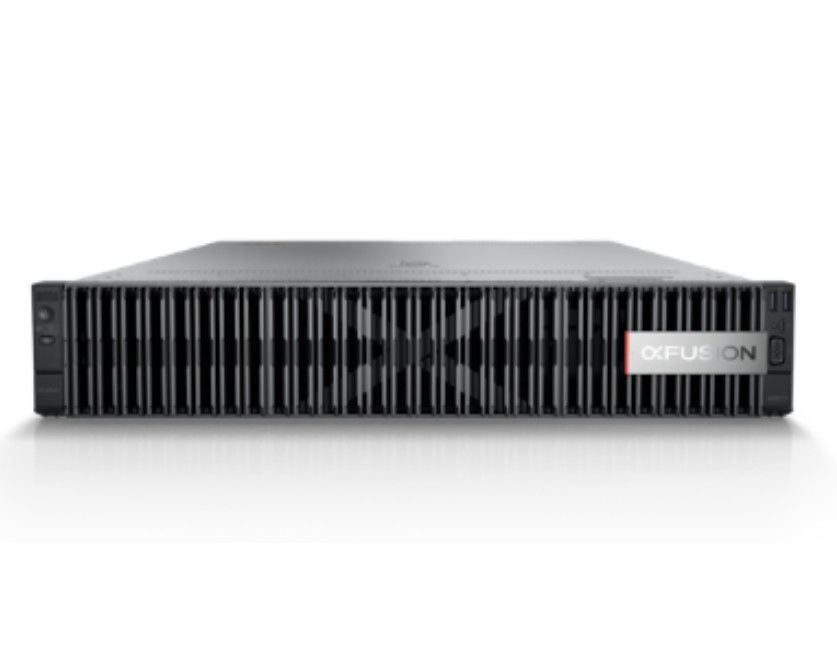

FusionServer 2288H V7 (2288H V7) is a new-generation 2U 2-socket rack server designed for SDS, VDI, CDN, virtualization, big data, database, cloud scenarios, AI inference, small enterprises, OA, and web applications, meeting requirements of enterprise or telecom service applications and other complex workloads.
The 2288H V7 features low power consumption, high scalability and reliability, easy deployment, and simplified management.
| Form | Xfusion FusionServer 2288H V7 2U 2-socket Rack Server |
| Processors |
1 or 2 x 4th or 5th Gen Intel® Xeon® Scalable processors with TDP up to 385 W per processor |
| Memory | 32 x 5600 MT/s DDR5 DIMMs and 16 x DDR5 DIMMs supported by the CXL technology; up to 48 x DIMMs* |
| Local Storage |
Hot-swappable drives with the following configuration options are supported: • 8 to 35 x 2.5ʺ SAS/SATA/SSD drives • 12 to 18 x 3.5ʺ SAS/SATA drives • 4/8/16/24 x NVMe SSDs • Up to 45 x 2.5ʺ drives, or 28 x full NVMe SSDs* • 2 x M.2 SSDs, hardware RAID, and hot swap |
| RAID Support |
RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| Network |
Expansion capability of multiple types of networks OCP 3.0 NICs are supported. Both two FlexIO card slots support two OCP 3.0 NICs, which can be configured as required. Hot swap is supported |
| PCIe Expansion | Up to 19 x PCIe slots: 2 x FlexIO slots dedicated for OCP 3.0 NICs and 17 x standard PCIe expansion slots*, 8 slots of which support PCIe 5.0 |
| Power Supply |
900 W/1200 W/1500 W/2000 W/3000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy |
| Dimensions (H x W x D) |
Chassis with 3.5ʺ drives: 86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.) Chassis with 2.5ʺ drives: 86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.) |
