| Place of Origin: | China |
|---|---|
| Brand Name: | Xfusion |
| Model Number: | 2288H V6 |
| Minimum Order Quantity: | 1/set |
| Delivery Time: | 2-3 work days |
| Payment Terms: | T/T |
| Supply Ability: | 50pcs per week |
| Form Factor: | 2U Rack Server | Processors: | One Or Two 3rd Gen Intel® Xeon® Scalable Ice Lake Processors (8300/6300/5300/4300 Series), TDP Up To 270 W |
|---|---|---|---|
| Memory: | 16/32 DDR4 DIMMs, Up To 3200 MT/s; 16 Optane™ PMem 200 Series, Up To 3200 MT/s | RAID Support: | Supports RAID 0, 1, 10, 5, 50, 6, Or 60 |
| Network Ports: | Provides Expansion Capability Of Multiple Types Of Networks. Provides The OCP 3.0 Network Adapter. | PCIe Expansion: | Provides Up To 14 PCIe 4.0 Expansion Slots For A Variety Of Applications. |
| Highlight: | 2U Rack Server,24 DDR4 DIMM slots Rack Server |
||

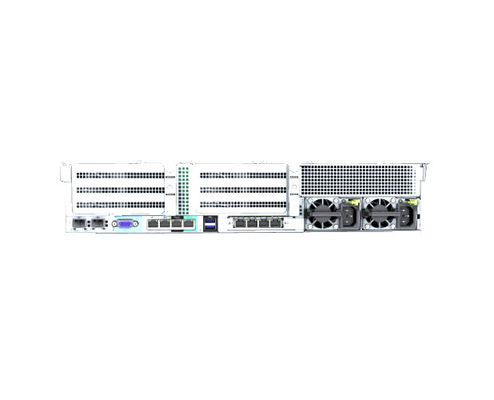

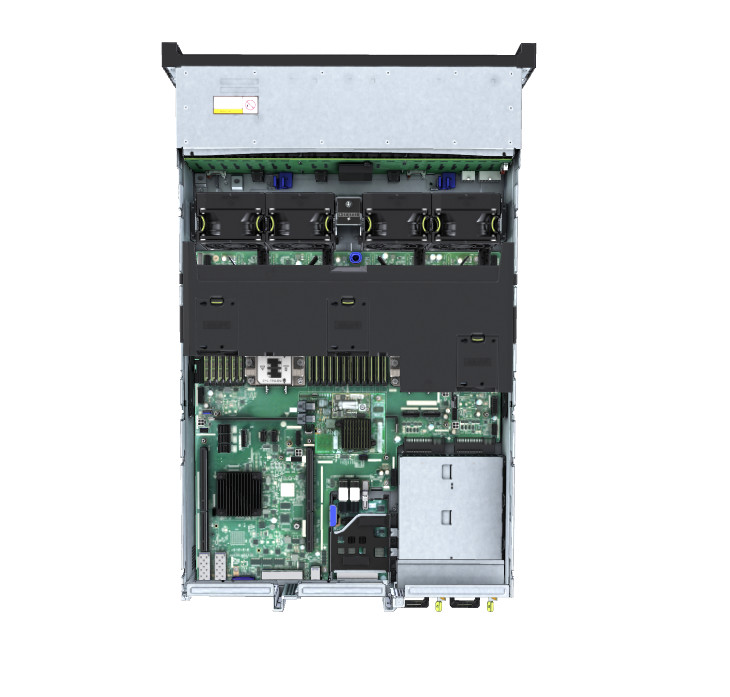

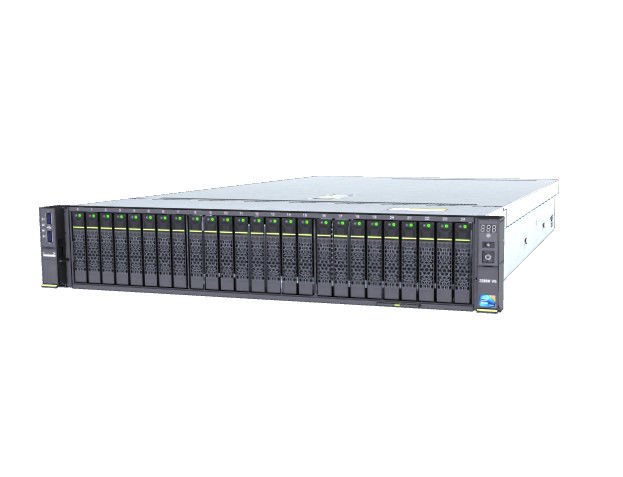

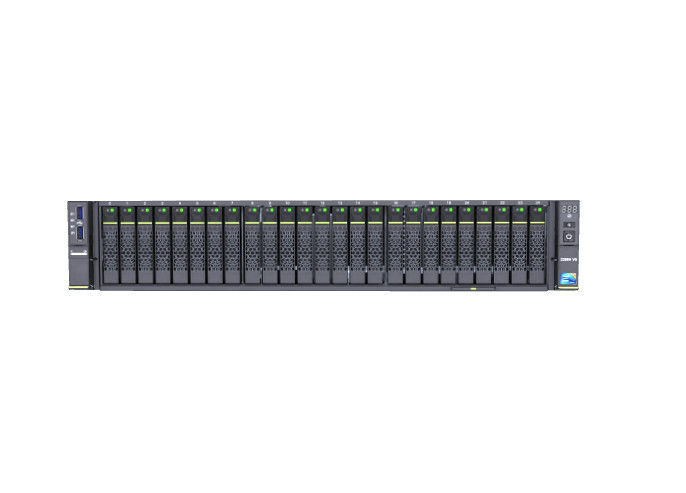

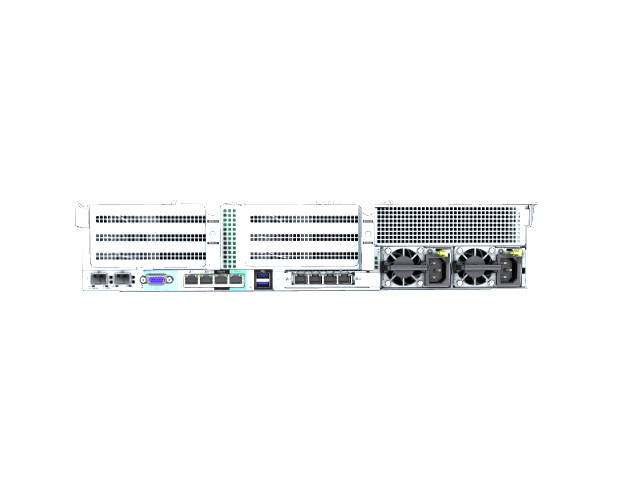

The FusionServer 2288H V6 is a 2U 2-socket rack server with flexible configurations and can be widely used in cloud computing, virtualization, databases, and big data. The 2288H V6 is configured with two Intel® Xeon® Scalable processors, 16/32 DDR4 DIMMs, and 14 PCIe slots, providing large-capacity local storage resources. It incorporates patented technologies, such as DEMT and FDM, and integrates FusionDirector software for entire-lifecycle management, helping customers drive down OPEX and improve ROI.
| Form | Xfusion FusionServer 2288H V6 2U 2-socket Rack Server |
| Processors |
One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
| Memory | 16/32 DDR4 DIMMs, up to 3200 MT/s; 16 Optane™ PMem 200 series, up to 3200 MT/s |
| Local Storage |
Supports various drive configurations and hot swappable: • 8-31 x 2.5-inch SAS/SATA/SSD drives • 12-20 x 3.5-inch SAS/SATA drives • 4/8/16/24 NVMe SSDs • Supports a maximum of 45 x 2.5-inch drives or 34 full-NVMe SSDs Supports flash storage: • 2 x M.2 SSDs |
| RAID Support |
Supports RAID 0, 1, 10, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration. |
| Network |
Provides expansion capability of multiple types of networks. Provides the OCP 3.0 network adapter. The two FlexIO card slots support two OCP 3.0 network adapters respectively, which can be configured as required. Hots wappable function supported |
| PCIe Expansion | Provides up to 14 PCIe 4.0 expansion slots for a variety of applications. |
| Power Supply |
• 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC) • 1500 W AC Platinum PSUs 1000 W (input: 100 V to 127 V AC) 1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC) • 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC) • 1200 W 1200 W –48 V to –60 V DC PSUs (input: –38.4 V to –72 V DC) • 3000 W AC Titanium PSUs 2500 W (input: 200 V to 220 V AC) 2900 W (input: 220 V to 230 V AC) 3000 W (input: 230 V to 240 V AC) • 2000 W AC Platinum PSUs 1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC) 2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC) |
| Dimensions (H x W x D) |
Chassis with 3.5-inch drives: 86.1 mm x 447 mm x 790 mm (3.40 in. x 17.60 in. x 31.10 in.) Chassis with 2.5-inch drives: 86.1 mm x 447 mm x 790 mm (3.40 in. x 17.60 in. x 31.10 in.) |
