| Place of Origin: | China |
|---|---|
| Brand Name: | Xfusion |
| Model Number: | 2288H V5 |
| Minimum Order Quantity: | 1/set |
| Delivery Time: | 2-3 work days |
| Payment Terms: | T/T |
| Supply Ability: | 50pcs per week |
| Form Factor: | 2U, 2-socket Rack Server | Processors: | 1 Or 2 1st Generation Intel® Xeon® Scalable Processors (3100/4100/5100/6100/8100 Series), Up To 205W 1 Or 2 2nd Generation Intel® Xeon® Scalable Processors (3200/4200/5200/6200/8200 Series), Up To 205W |
|---|---|---|---|
| Memory: | 24 DDR4 DIMM Slots | RAID Support: | RAID 0, 1, 10, 1E, 5, 50, 6, Or 60 |
| Network Ports: | LOM: 2 X 10 GE + 2 X GE Ports Flexible NIC: 2 X GE, 4 X GE, 2 X 10 GE, 2 X 25 GE, Or 1/2 X 56G FDR IB Ports | PCIe Expansion: | Up To 10 PCIe 3.0 Slots, Including 1 For A RAID Controller Card And 1 For A Flexible NIC |
| Highlight: | 2U Rack Server |
||

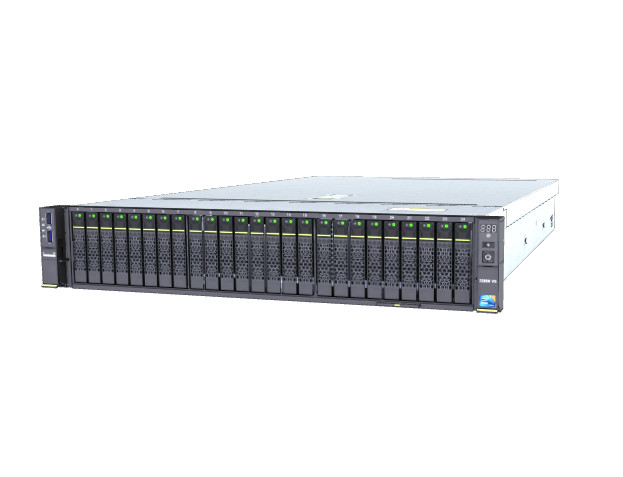

The FusionServer 2288H V5 is an a 2U, 2-socket rack server. FusionServer 2288H V5 has been verified by Intel as an Intel® Select Solution for NFVI and it supports the configuration of over 100 types of resources with just one model, flexibly meeting the hardware resource requirements of diverse workloads. It is an ideal choice for diverse applications, such as cloud computing, virtualization, databases, HPC, and big data processing.
| Form | Xfusion FusionServer 2288H V5 2U 2-socket Rack Server |
| Processors |
1 or 2 1st Generation Intel® Xeon® Scalable processors (3100/4100/5100/6100/8100 series), up to 205W 1 or 2 2nd Generation Intel® Xeon® Scalable processors (3200/4200/5200/6200/8200 series), up to 205W |
| Memory | 24 DDR4 DIMM slots, 2933 MT/s; up to 12 Intel® Optane™ PMem modules (100 series), 2666 MT/s |
| Local Storage |
Supports hot-pluggable drives with the following configuration options: 8 x 2.5-inch SAS/SATA HDDs or SSDs 12/16/20 x 3.5-inch SAS/SATA HDDs 4, 8, 12, 24, or 28 NVMe SSDs 31 x 2.5-inch SAS/SATA HDDs or SSDs Flash storage: 2 M.2 SATA SSDs, hot swappable, hardware RAID |
| RAID Support |
RAID 0, 1, 10, 1E, 5, 50, 6, or 60 Configured with a supercapacitor for cache power-off protection (optional) RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration |
| Network |
LOM: 2 x 10 GE + 2 x GE ports Flexible NIC: 2 x GE, 4 x GE, 2 x 10 GE, 2 x 25 GE, or 1/2 x 56G FDR IB ports |
| PCIe Expansion | Up to 10 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC |
| Power Supply |
2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options: 550W AC Platinum PSUs 900W AC Platinum/Titanium PSUs 1,500W AC Platinum PSUs 1,500W 380V HVDC PSUs 1,200W -48V to -60V DC PSUs |
| Dimensions (H x W x D) |
Chassis with 3.5-inch hard drives: 86.1 mm x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.) Chassis with 2.5-inch hard drives: 86.1 mm x 447 mm x 708 mm (3.39 in. x 17.60 in. x 27.87 in.) |
