| Place of Origin: | China |
|---|---|
| Brand Name: | Xfusion |
| Model Number: | 1288H V7 |
| Minimum Order Quantity: | 1/set |
| Delivery Time: | 2-3 work days |
| Payment Terms: | T/T |
| Supply Ability: | 50pcs per week |
| Form Factor: | 1U Rack Server | Processors: | 1 Or 2 X 4th Or 5th Gen Intel® Xeon® Scalable Processors With TDP Up To 385 W Per Processor |
|---|---|---|---|
| Memory: | 32 X DDR5 DIMMs, With Up To 5600 MT/s Speed | RAID Support: | RAID 0, 1, 10, 1E, 5, 50, 6, Or 60 |
| Network: | Provides Expansion Capability Of Multiple Types Of Networks | PCIe Expansion: | Provides 5 X PCIe Slots, Including 2 X FlexIO Slots Dedicated For OCP 3.0 NICs And 3 X PCIe Slots, And 1 Slots Support PCIe 5.0 |
| Highlight: | Xfusion FusionServer 1288H V7 |
||

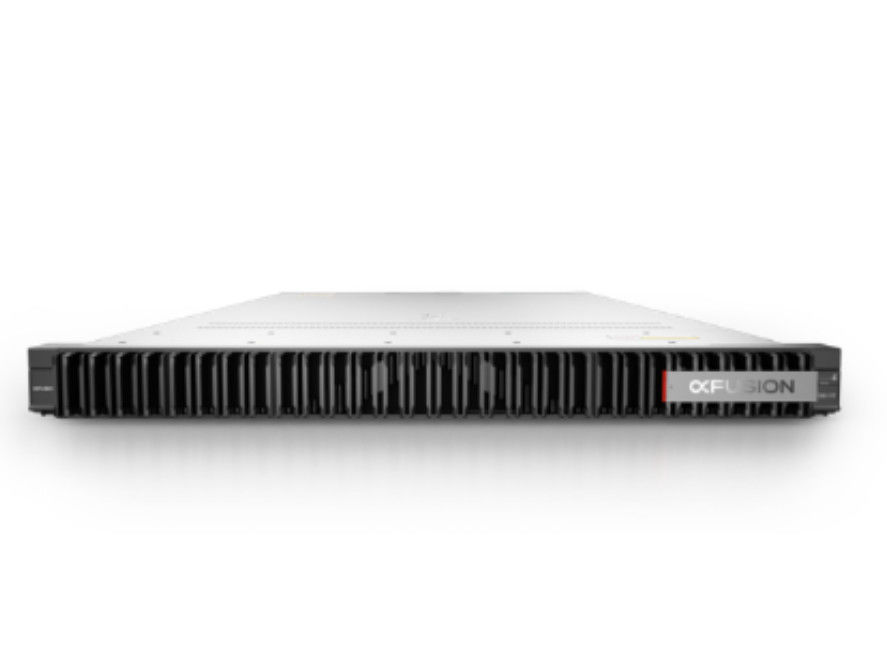

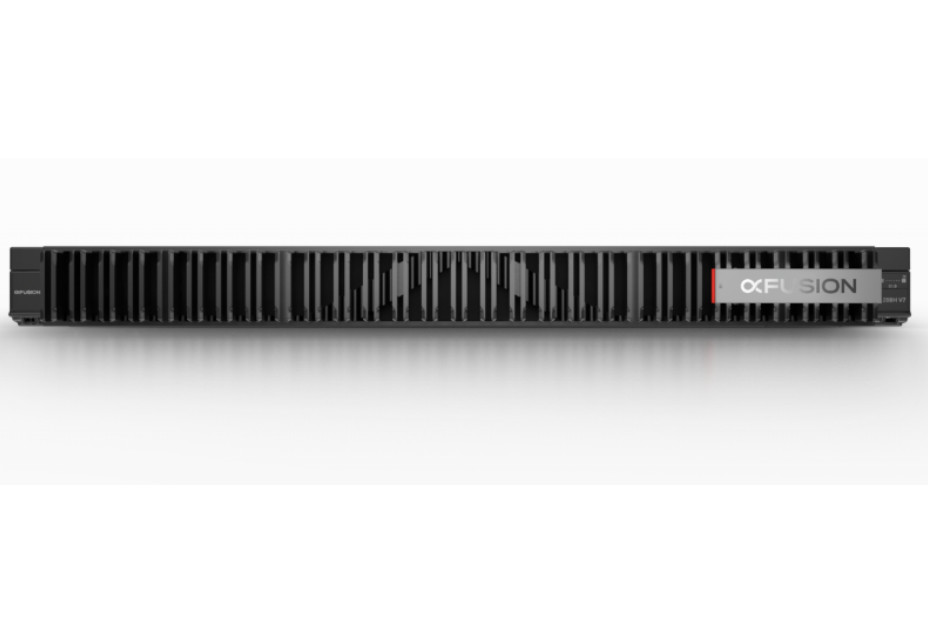

FusionServer 1288H V7 (1288H V7) is a new-generation 1U 2-socket rack server designed for the Internet, Internet Data Center (IDC), core IT services, cloud computing, virtualization, high-performance computing (HPC), enterprise or telecom service applications, and other complex workloads.1288H V7 features low power consumption, high scalability and reliability, easy deployment, and simplified management.
| Form | Xfusion FusionServer 1288H V7 1U Rack Server |
| Processors |
1 or 2 x 4th or 5th Gen Intel® Xeon® Scalable processors with TDP up to 385 W per processor |
| Memory | 32 x DDR5 DIMMs, with up to 5600 MT/s speed |
| Local Storage |
Supports hot-swappable drives in the following configurations: • 4 x 3.5ʺ SAS/SATA drives/SSDs • 8-12 x 2.5ʺ SAS/SATA drives/SSDs • 2 x M.2 SSDs |
| RAID Support |
RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| Network |
Provides expansion capability of multiple types of networks Supports OCP 3.0 NICs. The two FlexIO card slots support two OCP 3.0 NICs, which can be configured as required. Hot swap and PCIe 5.0 are supported |
| PCIe Expansion | Provides 5 x PCIe slots, including 2 x FlexIO slots dedicated for OCP 3.0 NICs and 3 x PCIe slots, and 1 slots support PCIe 5.0 |
| Power Supply |
900 W/1200 W/1500 W/2000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy |
| Dimensions (H x W x D) |
Chassis with 3.5ʺ drives: 43 mm x 447 mm x 798 mm (1.69 in. x 17.60 in. x 31.42 in.) Chassis with 2.5ʺ drives: 43 mm x 447 mm x 798 mm (1.69 in. x 17.60 in. x 31.42 in.) |
