| Place of Origin: | China |
|---|---|
| Brand Name: | Xfusion |
| Model Number: | 1288H V5 |
| Minimum Order Quantity: | 1/set |
| Delivery Time: | 2-3 work days |
| Payment Terms: | T/T |
| Supply Ability: | 50pcs per week |
| Form Factor: | 1U, 2-socket Rack Server | Processors: | 1 Or 2 1st Generation Intel® Xeon® Scalable Processors (3100/4100/5100/6100/8100 Series), Up To 205 W 1 Or 2 2nd Generation Intel® Xeon® Scalable Processors (3200/4200/5200/6200/8200 Series), Up To 205 W |
|---|---|---|---|
| Memory: | 24 DDR4 DIMM Slots | RAID Support: | RAID 0, 1, 10, 5, 50, 6, Or 60 |
| Network Ports: | LOM: 2 X 10GE + 2 X GE Ports Flexible NIC: 2 X GE, 4 X GE, 2 X 10GE, 2 X 25GE, Or 1/2 X 56G FDR IB Ports | PCIe Expansion: | Up To 5 PCIe 3.0 Slots, Including 1 For A RAID Controller Card And 1 For A Flexible NIC |
| Highlight: | 1U Rack Server,24 DDR4 DIMM slots Rack Server |
||

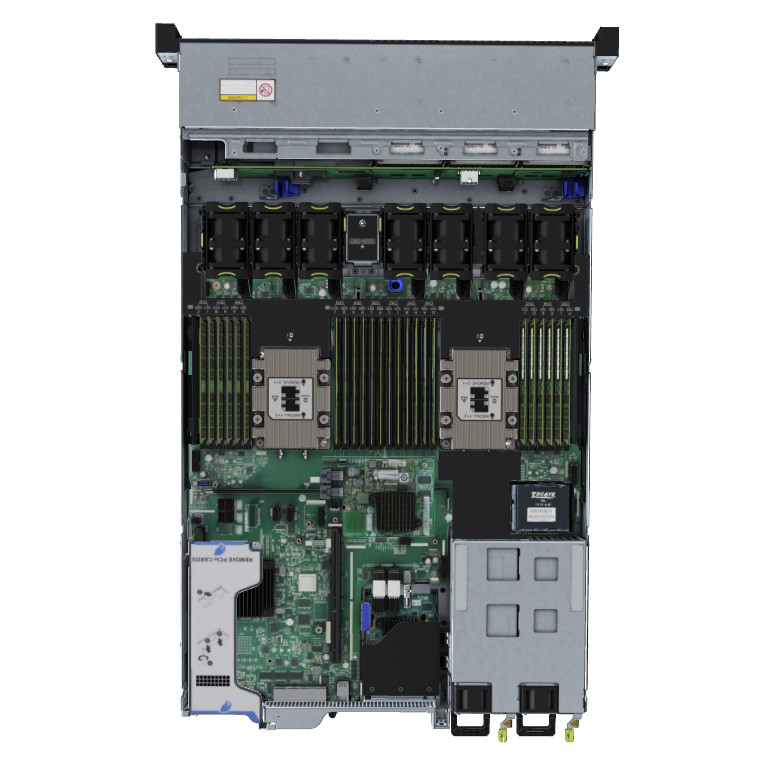

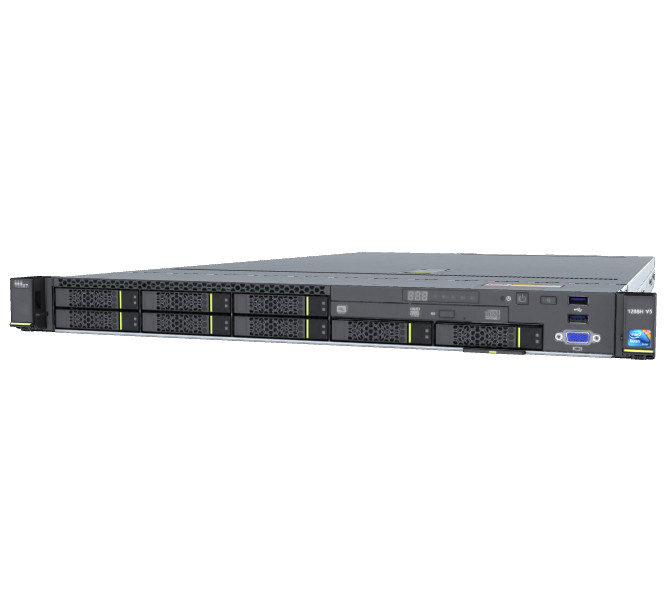

FusionServer 1288H V5 is a 1U 2-socket rack server suitable for high-density deployment of cloud computing virtualization, high-performance computing (HPC), big data processing and other loads, improving data center space utilization. 1288H V5 can be configured with 2 Intel® Xeon® Scalable processors, 24 DDR4 memory and 4 3.5-inch or 10 2.5-inch local storage resources (4/8 NVMe SSD hard drives can be configured) in 1U space. It integrates patented technologies such as DEMT intelligent power consumption management and FDM intelligent fault management, and can be equipped with FusionDirector full life cycle management software, which can effectively reduce operating costs and improve investment returns.
| Form | Xfusion FusionServer 1288H V5 1U 2-socket Rack Server |
| Processors |
1 or 2 1st Generation Intel® Xeon® Scalable processors (3100/4100/5100/6100/8100 series), up to 205 W 1 or 2 2nd Generation Intel® Xeon® Scalable processors (3200/4200/5200/6200/8200 series), up to 205 W |
| Memory | 24 DDR4 DIMM slots, 2933 MT/s; up to 12 Intel® Optane™ PMem modules (100 series), 2666 MT/s |
| Local Storage |

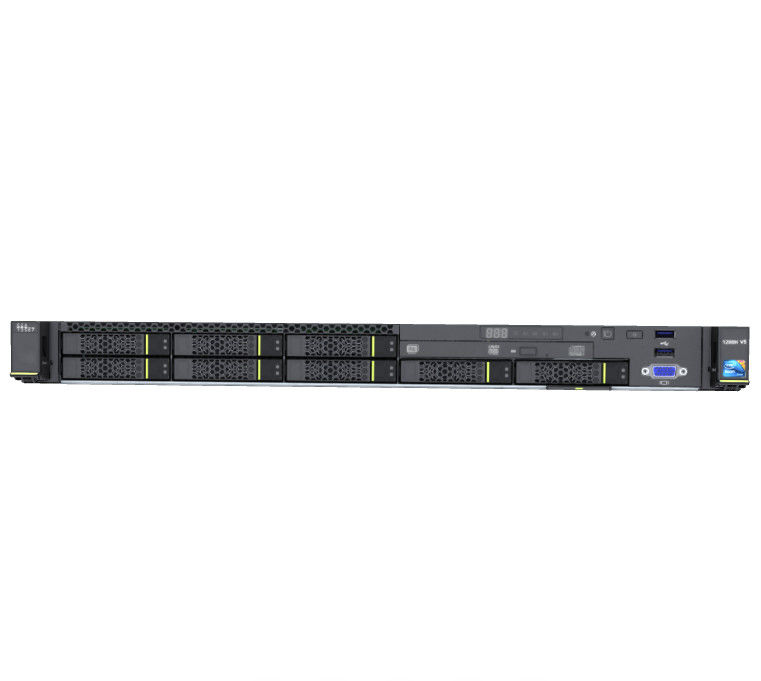

Supports hot-plug hard drives and the following configuration options: 10 x 2.5-inch hard drives (6–8 NVMe SSDs and 2–4 SAS/SATA drives, with a total number of 10 or less) 10 x 2.5-inch SAS/SATA/SSDs (2–4 NVMe SSDs and 6–8 SAS/SATA HDDs, with a total number of 10 or less) 10 x 2.5-inch SAS/SATA/SSDs 8 x 2.5-inch SAS/SATA hard drives 4 x 3.5-inch SAS/SATA hard drives Flash storage: 2 M.2 SSDs |
| RAID Support |
RAID 0, 1, 10, 5, 50, 6, or 60 Configured with a supercapacitor for power-off protection for the cache (optional) RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration |
| Network Ports |

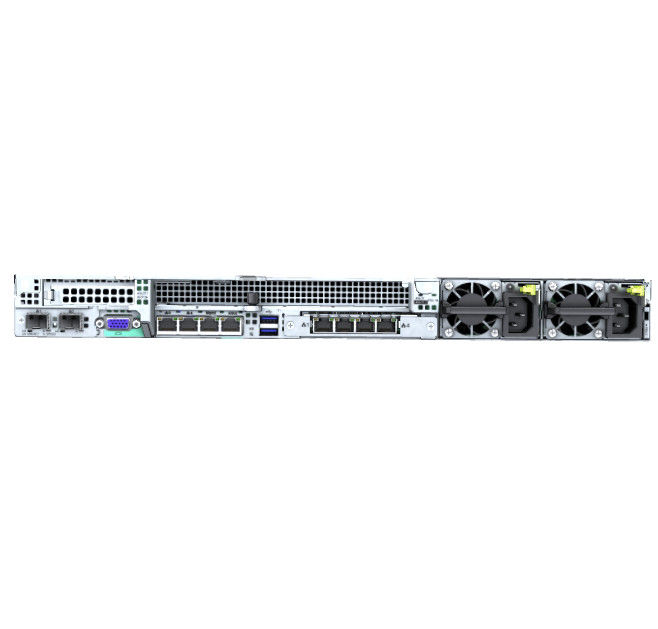

LOM: 2 x 10GE + 2 x GE ports Flexible NIC: 2 x GE, 4 x GE, 2 x 10GE, 2 x 25GE, or 1/2 x 56G FDR IB ports |
| PCIe Expansion | Up to 5 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC |
| Power Supply |
2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options: 550W AC Platinum PSUs 900W AC Platinum/Titanium PSUs 1,500W AC Platinum PSUs 1,500W 380V HVDC PSUs 1,200W -48V to -60V DC PSUs |
| Dimensions (H x W x D) |
Chassis with 3.5-inch hard drives: 43 mm x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.) Chassis with 2.5-inch hard drives: 43 mm x 447 mm x 708 mm (3.39 in. x 17.60 in. x 27.87 in.) |
