| Place of Origin: | China |
|---|---|
| Brand Name: | HUAWEI |

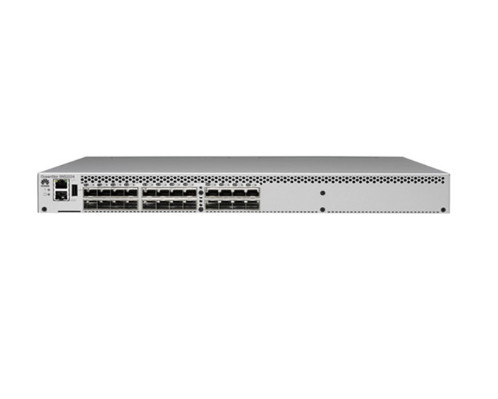

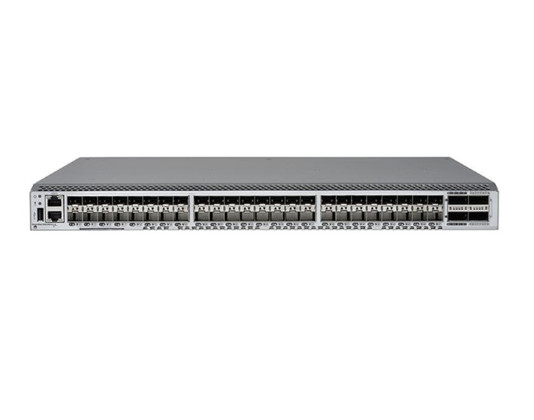

| Model Number: | Hua Wei OceanStor SNS3664 Fibre Channel Storage Switches |
| Minimum Order Quantity: | 1/set |
| Delivery Time: | 2-3 work days |
| Payment Terms: | T/T |
| Supply Ability: | 50pcs per week |
| Number Of Ports: | Minimum Of 24 Ports And Maximum Of 64 Ports. | Port Types: | D_Port(ClearLink Diagnostic Port), E_Port, EX_Port, F_Port, AE_Port; Optional Port-type Control ; Access Gateway Mode: F_Port And NPIV-enabled N_Port |
|---|---|---|---|
| Aggregate Bandwidth: | 2 Tbps | Power Suplly: | Base Switch Includes A Single, Fixed Power Supply With Four Integrated System Cooling Fans |
| Dimension: | Width: 44 Cm (17.32 In.) Height: 4.39 Cm (1.73 In.) Depth: 35.56 Cm (14 In.) | ||
| Highlight: | 2 Tbps OceanStor SNS3664,Fibre Channel OceanStor SNS3664 |
||
| Form | Hua Wei OceanStor SNS3664 Fibre Channel Storage Switches |
| Number of ports | Minimum of 24 ports and maximum of 64 ports. Port numbers above minimum are enabled through 12-port SFP+ increments via Ports on Demand (PoD) licenses and through one 4-port QSFP PoD; Access Gateway default port mapping: 40 SFP+ F_Ports, 8 SFP+ N_Ports |
| Port types | D_Port(ClearLink Diagnostic Port), E_Port, EX_Port, F_Port, AE_Port; optional port-type control ; Access Gateway mode: F_Port and NPIV-enabled N_Port |
| Performance | Fibre Channel: 4.25 Gbps line speed, full duplex; 8.5 Gbps line speed, full duplex; 10.53 Gbps line speed, full duplex;14.025 Gbps line speed, full duplex; 28.05 Gbps, full duplex;112.2 Gbps, full duplex; auto-sensing of 4, 8, 16, 32 Gbps port speeds and capable of supporting 128 Gbps speeds; 10Gbps optionally programmable to fixed port speed |
| Aggregate bandwidth | 2 Tbps |
| power supply | Base switch includes a single, fixed power supply with four integrated system cooling fans |
| Dimension | Width: 44 cm (17.32 in.) Height: 4.39 cm (1.73 in.) Depth: 35.56 cm (14 in.) |
