| Place of Origin: | China |
|---|---|
| Brand Name: | HUAWEI |
| Model Number: | Hua Wei OceanStor SNS5608 Fibre Channel Storage Switches |
| Minimum Order Quantity: | 1/set |
| Delivery Time: | 2-3 work days |
| Payment Terms: | T/T |
| Supply Ability: | 50pcs per week |
| Number Of Ports: | Up To 384 32 Gbps Ports Or A 512-port Equivalent With 128 Gbps | Chassis Bandwidth: | 12.2 Tbps Per Chassis (384 Ports×32 Gbps) Data Rate + 4.096 Tbps UltraScale ICL Bandwidth (32×128 Gbps) |
|---|---|---|---|
| Slot Bandwidth: | 1536 Gbps | ||
| Highlight: | 1536 Gbps Fibre Channel Storage Switches,Hua Wei OceanStor SNS5608 |
||

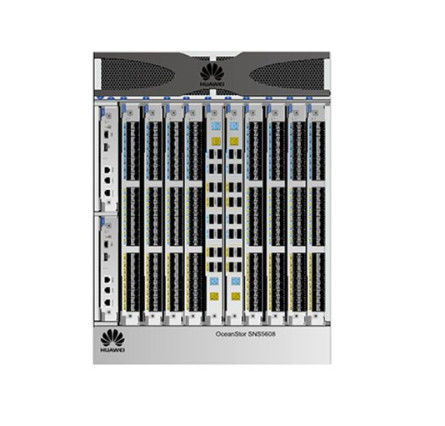

| Form | Hua Wei OceanStor SNS5608 Fibre Channel Storage Switches |
| Number of ports | up to 384 32 Gbps ports or a 512-port equivalent with 128 Gbps (4×32 Gbps) UltraScale ICL ports (32 Gbps×4 QSFP ports) |
| Port types | Each provides support for (E, F, D, M, SIM, AE, and EX) Fibre Channel ports using 48-port 32 Gbps Fibre Channel blades. FC32-48 port blade: F_Port, E_Port, EX_Port, M_Port, SIM, and D_Port SX6 Extension Blade: F_Port, E_Port, and EX_Port on FC, and VE_Port on GbE NOTE: Self-discovery is based on switch type (U_Port) with an optional port-type control Full-fabric architecture with a maximum of 239 switches |
| Chassis bandwidth | 12.2 Tbps per chassis (384 ports×32 Gbps) data rate + 4.096 Tbps UltraScale ICL bandwidth (32×128 Gbps) |
| Slot bandwidth | 1,536 Gbps (line rate) |
| Power Suplly |
• Device ships with three power supplies (3 for 2+1 redundancy) • Suggest install four to provide power efficiency and 2+2 redundancy |
