| Place of Origin: | China |
|---|---|
| Brand Name: | Dell |
| Model Number: | Dell PowerEdge R760XS 2U Rack Server |
| Minimum Order Quantity: | 1/set |
| Delivery Time: | 2-3 work days |
| Payment Terms: | T/T |
| Supply Ability: | 50pcs per week |
| Processor: | Up To Two 5th Generation Intel Xeon Scalable Processor | Memory: | 16 DDR5 DIMM Slots |
|---|---|---|---|
| Power Supplies: | 1800 W Titanium 200—240 VAC Or 240 VDC | Embedded Management: | IDRAC9 |
| Dimensions(H×W×D): | 3.41in×18.97 In×27.85 In | ||
| Highlight: | Dell PowerEdge R760XS 2U Rack Server,2U Rack Server |
||

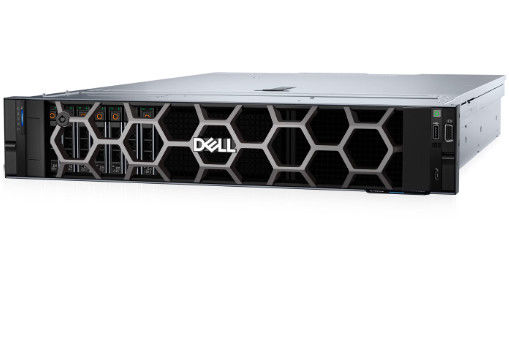

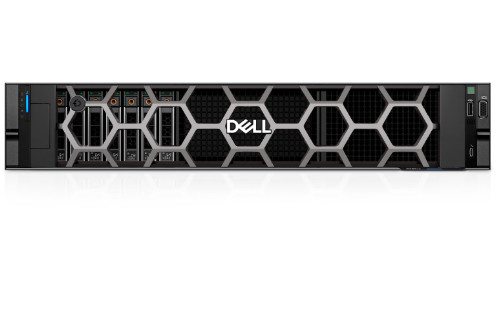

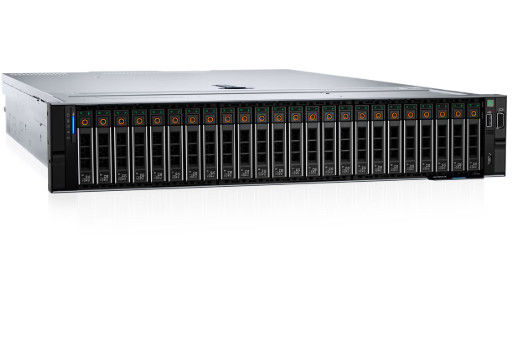

The new Dell PowerEdge R760xs is a 2U, two-socket rack server. Buy the best fit in scalable performance and large storage capability with this purpose-built 2U system. Focused on delivering the latest technology to power the most popular applications and workloads used by businesses today, including virtual desktop infrastructure (VDI), virtual machines (VMs), and software-defined storage (SDS). All delivered in a thoughtfully crafted platform that will provide balanced compute that fits in your current infrastructure.
| FORM | Dell PowerEdge R760XS 2U Rack Server |
| Processor | Up to two 5th Generation Intel Xeon Scalable processor with up to 28 cores and 4th Generation Intel Xeon Scalable processor with up to 32 cores per processor |
| Memory | 16 DDR5 DIMM slots, supports RDIMM 1.5 TB max, speeds up to 5200 MT/s, supports registered ECC DDR5 DIMMs only |
| Drive Bays |
Front bays:
• 0 drive bay
• Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB
• Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 288 TB
• Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
• Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 121.6 TB
• Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe)
(HDD/SSD) max 244.48 TB
Rear bays:
• Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
(supported only with 12 x 3.5-inch SAS/SATA HDD/SSD
configuration)
|
| Power Supplies |
• 1800 W Titanium 200—240 VAC or 240 VDC
• 1400 W Titanium 100—240 VAC or 240 VDC
• 1400 W Platinum 100—240 VAC or 240 VDC
• 1400 W Titanium 277 VAC or HVDC (HVDC stands for HighVoltage DC, with 336V DC)
• 1100 W Titanium 100—240 VAC or 240 VDC
• 1100 W -(48V — 60V) DC
• 800 W Platinum 100—240 VAC or 240 VDC
• 700 W Titanium 200—240 VAC or 240 VDC
• 600 W Platinum 100—240 VAC or 240 VDC
|
| Embedded Management |
• iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Module
• Quick Sync 2 wireless module
|
| Dimensions |
• Height – 86.8 mm (3.41 inches)
• Width – 482 mm (18.97 inches)
• Depth – 707.78 mm (27.85 inches) – without bezel
721.62 mm (28.4 inches) – with bezel
• Weight – Max 28.6 kg (63.0 lbs.)
|
