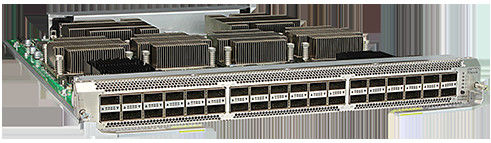

Name: CloudEngine 12800 and 12800E CE-L36CQ-FD1 36-Port 100GE Interface Card FD1 QSFP28
Brand: Beijing Core-Net Techonology Co., Limited
SKU: CE-L36CQ-FD1
Price: 485.00 USD
Availability: InStock

Detail Information

Brand:

HUAWEI

Products Name:

CE-L36CQ-FD1

Dimensions (W*H*D):

433.0 Mm X 530.8 Mm X 45.7 Mm

Warranty:

1 Year

Highlight:

12800E CE-L36CQ-FD1 Interface Card

CloudEngine 12800E CE-L36CQ-FD1

12800 CE-L36CQ-FD1 Interface Card

Product Description

Overview

The CE-L36CQ-FD1 provides a maximum of 36 100GE, 36 40GE, 144 25GE, or 144 10GE optical ports for data access and processing.

The CE-L36CQ-FD1 can be installed in:

Slots 1 to 4 of the CE12804 chassis, as shown in Slot layout in the CE12804 chassis

Slots 1 to 8 of the CE12808 chassis, as shown in Slot layout in the CE12808 chassis

Slots 1 to 12 of the CE12812 chassis, as shown in Slot layout in the CE12812 chassis

Slots 1 to 16 of the CE12816 chassis, as shown in Slot layout in the CE12816 chassis

Slots 1 to 4 of the CE12804S chassis, as shown in Slot layout in the CE12804S chassis

Slots 1 to 8 of the CE12808S chassis, as shown in Slot layout in the CE12808S chassis

NOTE

The CE-L36CQ-FD1 and CE-L36CQ-FD cards look the same except that they have different card name labels. The CE-L36CQ-FD is used as an example.

When using 2200 W DC power modules working in N+N backup mode, the CE12804 chassis, CE12808 chassis, and CE12812 chassis support a maximum of 3, 6, and 10 CE-L36CQ-FD/CE-L36CQ-FG/CE-L36CQ-FD1/CE-L36CQ-SD cards respectively, limited by the output power of the power modules.

Specifications

Item	Description
CPU	Eight-core, 1.5 GHz clock speed
DDR3/DDR4	DDR4, standard 8 GB
Flash	Standard 128 MB
Physical specifications	Dimensions (W x D x H): 433.0 mm x 530.8 mm x 45.7 mm (17.05 in. x 20.90 in. x 1.80 in.) Weight:9.6 kg (21.16 lb) Typical power consumption: 694 W Maximum power consumption: 922 W Typical heat dissipation: 2370 BTU/hour Maximum heat dissipation: 3148 BTU/hour
Environment parameters	Operating temperature: 0°C to 40°C (32°F to 104°F) Storage temperature: -40°C to +70°C (-40°F to +158°F) Operating relative humidity: 5% RH to 85% RH (noncondensing)
Certification	Safety standards compliance EMC standards compliance Environmental standards compliance

FAQ

1. who are we?

We are based in Beijing, China, start from 2002,sell to Mid East(30.00%),Western Europe(25.00%),North America(20.00%),Eastern Europe(10.00%),South Asia(5.00%),Southeast Asia(5.00%),Domestic Market(3.00%),Oceania(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment;

3.what can you buy from us?

Router switch server and any telecom equipment

4. why should you buy from us not from other suppliers?

Corenet Int'l Co., Ltd. - Your partner and expert for global IT solutions. As a tech company, Corenet is committed to both System Integration and IT distribution. We supply networking hardware like switches, routers, servers, storage and modules.

5. what services can we provide?

Accepted Delivery Terms: FOB,CIF,EXW,DDP； Accepted Payment Currency:USD,EUR,HKD,GBP,CNY; Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow; Language Spoken:English,Chinese,Russian,Korean

Tag:

Place of Origin:	China
Brand Name:	HUAWEI
Certification:	all
Model Number:	CE-L36CQ-FD1

Minimum Order Quantity:	1
Price:	chat
Packaging Details:	Carton
Delivery Time:	5-8work days
Payment Terms:	T/T
Supply Ability:	50 pieces per week
