| Place of Origin: | China |
|---|---|
| Brand Name: | Cisco |
| Certification: | ALL |

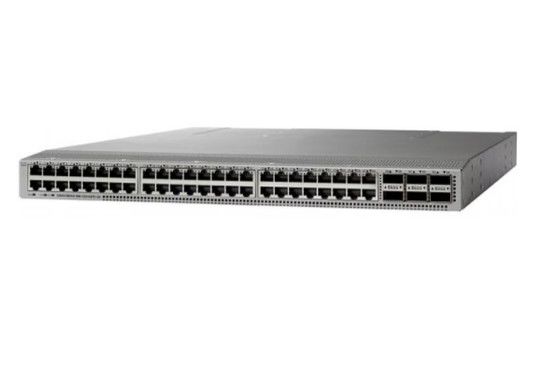

| Model Number: | N9K-C93108TC-EX |
| Minimum Order Quantity: | 2 pieces |
| Price: | Ask |
| Packaging Details: | New Original Packing |
| Delivery Time: | To be negotiated |
| Payment Terms: | Western Union, T/T, MoneyGram |
| Supply Ability: | 50 pcs per week |
| Product Type: | Data Center Switches | Series: | Cisco Nexus 9000 Series Switches |
|---|---|---|---|
| Weight: | 17.2 Lb (7.8 Kg) | ||
| Highlight: | Cisco Nexus 9300-EX Series Switches,N9K-C93108TC-EX |
||
Switch models
Table 1. Cisco Nexus 9300-EX Series Switches
| Model | Description |
| Cisco Nexus 93180YC-EX | 48 x 1/10/25-Gbps fiber ports and 6 x 40/100-Gbps Quad Small Form-Factor Pluggable 28 (QSFP28) ports |
| Cisco Nexus 93108TC-EX | 48 x 100M/1/10GBASE-T ports and 6 x 40/100-Gbps QSFP28 ports |
| Cisco Nexus 93180LC-EX | Up to 32 x 40/50-Gbps QSFP+ ports OR 18 x 100-Gbps QSFP28 ports |
Product specifications
The Cisco Nexus 9300-EX series offer industry-leading density and performance with flexible port configurations that can support existing copper and fiber cabling (Tables 2).
Table 2. Cisco Nexus 9300-EX Series Switch specifications
| Feature | Cisco Nexus 93180YC-EX | Cisco Nexus 93108TC-EX | Cisco Nexus 93180LC-EX |
| Ports | 48 x 1/10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports | 48 x 100-Mbps/1/10GBASE-T and 6 x 40/100-Gbps QSFP28 ports | Up to 32 x 40/50-Gbps QSFP+ ports OR 18 x 100-Gbps QSFP28 ports |
| CPU | 4 cores | 4 cores | 4 cores |
| System memory | 24 GB | 24 GB | 24 GB |
| SSD drive | 64 GB | 64 GB | 64 GB |
| System buffer | 40 MB | 40 MB | 40 MB |
| Management ports | 2 ports: 1 RJ-45 and 1 SFP | 2 ports: 1 RJ-45 and 1 SFP | 2 ports: 1 RJ-45 and 1 SFP |
| USB ports | 1 | 1 | 1 |
| RS-232 serial ports | 1 | 1 | 1 |
| Power supplies (up to 2) | 500W AC, 650W AC, 930W DC, or 1200W HVAC/HVDC | 500W AC, 650W AC, 930W DC, or 1200W HVAC/HVDC | 500W AC, 930W DC, or 1200W HVAC/HVDC |
| Typical power* (AC/DC) | 210W | 290W | 220W |
| Maximum power* (AC/DC) | 470W | 499W | 500W |
| BTU/hr | 1604 | 1703 | 1706 |
| Input voltage (AC) | 100 to 240V | 100 to 240V | 100 to 240V |
| Input voltage (high-voltage AC [HVAC]) |
200 to 277V | 200 to 277V | 200 to 277V |
| Input voltage (DC) | –48 to –60V | –48 to –60V | –48 to –60V |
| Input voltage (high-voltage DC [HVDC]) |
–240 to –380V | –240 to –380V | –240 to –380V |
| Frequency (AC) | 50 to 60 Hz | 50 to 60 Hz | 50 to 60 Hz |
| Fans | 4 | 4 | 4 |
| Airflow | Port-side intake and exhaust | Port-side intake and exhaust | Port-side intake and exhaust |
| Physical dimensions (H x W x D) |
1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm) |
1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm) |
1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm) |
| Acoustics | 48.5 dBA at 40% fan speed, 64.9 dBA at 70% fan speed, and 77.8 dBA at 100% fan speed | 48.6 dBA at 40% fan speed, 65.2 dBA at 70% fan speed, and 76.5 dBA at 100% fan speed | 49.9 dBA at 50% fan speed, 66 dBA at 70% fan speed, and 73.9 dBA at 100% fan speed |
| RoHS compliance | Yes | Yes | Yes |
| MTBF | 390,330 hours | 366,130 hours | 323,440 hours |
| Minimum ACI image | ACI-N9KDK9-11.3 | ACI-N9KDK9-12.0 | ACI-N9KDK9-12.2(1n) |
| Minimum NX-OS image | NXOS-703I4.2 | NXOS-703I4.3 | NXOS-703I6.1 |
