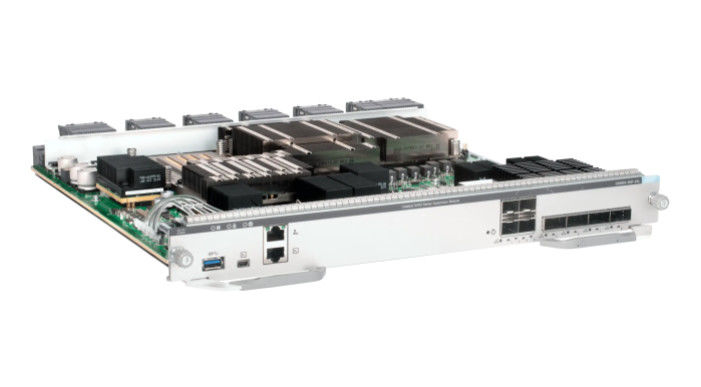

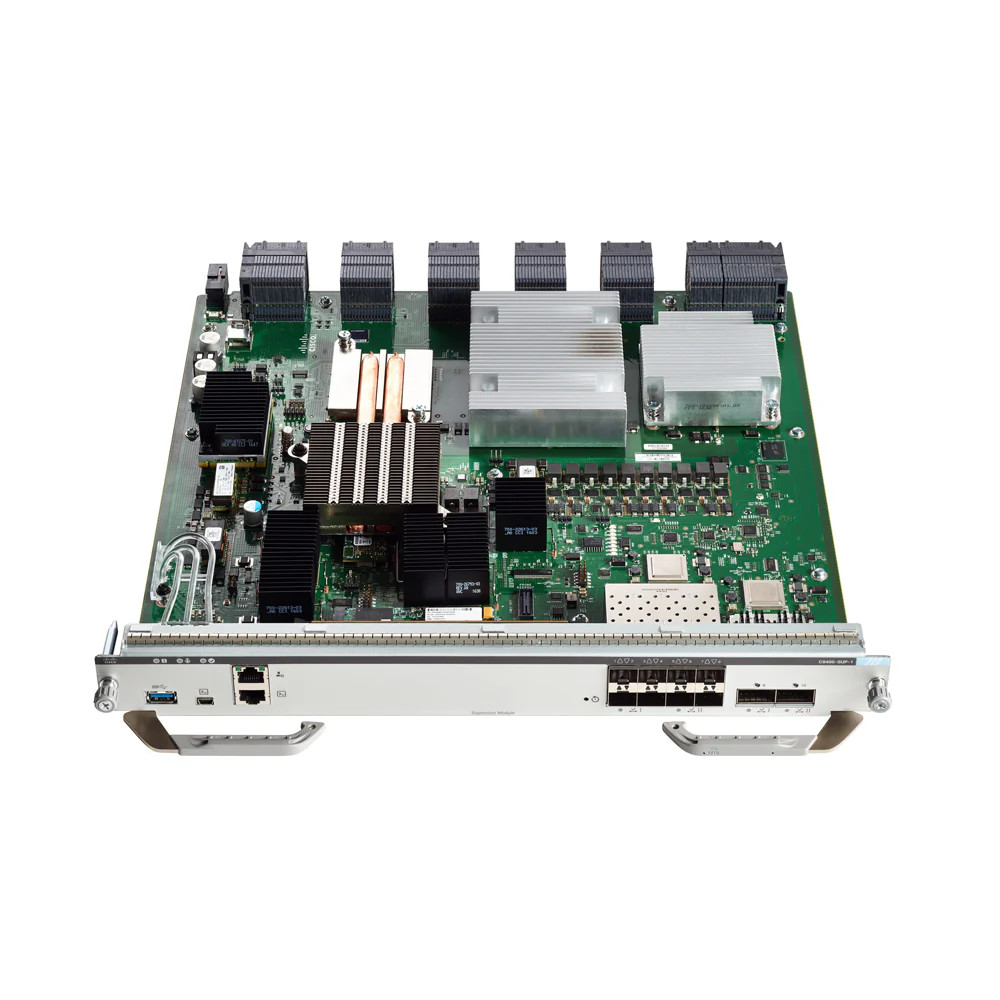

Cisco Catalyst 9400 Series Supervisor-2XL Bundle Select Opti

Device Type

Control processor

Built-in Devices

RFID tag

Width

14.9 in

Depth

14.6 in

Height

1.6 in

Weight

11.46 lbs

Processors Installed

2.4 GHz

RAM

16 GB

Flash Memory

10 GB

Hard Drive

SSD 960 GB

Form Factor

Plug-in module

Connectivity Technology

Wired

Data Link Protocol

Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet

Network / Transport Protocol

IPv4, IPv6

Routing Protocol

BGP-4, RIP-1, RIP-2, EIGRP, PIM-SM, static IP routing, OSPFv3, PIM-SSM, RIPng, MPLS, MSTP, RSTP, STP, LISP, IS-ISv4

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, HTTP, CLI, NETCONF, RESTCONF, YANG

Performance

Bandwidth: 480 Gbps ¦ Switching capacity: 9.6 Tbps ¦ Forwarding rate: 3 Bpps

Capacity

MAC addresses: 64000 ¦ IPv4 routes (ARP entries): 256000 ¦ FNF entries (IPv4): 384000 ¦ FNF entries (IPv6): 192000 ¦ VLAN IDs: 4096 ¦ PVST instances: 300 ¦ STP Virtual Ports for PVST: 13000 ¦ STP Virtual Ports for MST: 13000 ¦ Switched virtual interfaces (SVIs): 1000 ¦ Jumbo frame size: 9216 ¦ IPv4 routing entries: 256000 ¦ IPv6 routing entries: 256000 ¦ Layer 2 multicast routes: 32000 ¦ Layer 3 multicast routes: 32000 ¦ QoS hardware entries: 16000 ¦ Security ACL hardware entries: 16000 ¦ Packet buffer size: 108 MB

Status Indicators

Status

Features

NAT support, VPN support, PAT support, Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Energy Efficient Ethernet, Management Information Base (MIB), Virtual Routing and Forwarding (VRF), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, Virtual Private LAN Service (VPLS), Ethernet over MPLS (EoMPLS), Blue Beacon LED, secure boot, Committed Information Rate (CIR), image signing, Cisco Trust Anchor module, Cisco Unified Access Data Plane (UADP) 3.0, Secure Unique Device Identification (SUDI)

Encryption Algorithm

256-bit AES

Compliant Standards

IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3bt

Interfaces

1 x console - RJ-45 ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x USB 3.0 - Type A ¦ 1 x management (mini-USB) - Type B ¦ 4 x 40Gb Ethernet/100Gb Ethernet - SFP+ ¦ 4 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - QSFP

MTBF

304,315 hours

Compliant Standards

CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, EN 300 386 V1.6.1, EN 55022 Class A, EN 300 386, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317

Power Consumption Operational

650 Watt

Service & Support

Limited warranty - replacement - lifetime - response time: next business day

Min Operating Temperature

23 °F

Max Operating Temperature

113 °F

Humidity Range Operating

10 - 95% (non-condensing)

Designed For

P/N: C9404R, C9404R=, C9404R-10A, C9404R-1A, C9404R-48U-BDL-EDU, C9404R-48U-BNDL-1A, C9404R-48U-BNDL-1E, C9404R-48U-BNDL-A, C9404R-48U-BNDL-E, C9404R-RF, C9404R-WS, C9407R, C9407R=, C9407R-10A, C9407R-1A, C9407R-96U-BDL-EDU, C9407R-96U-BNDL-1A, C9407R-96U-BNDL-1E, C9407R-96U-BNDL-A, C9407R-96U-BNDL-E, C9407R-96U-STK-EDU, C9407R-P, C9407R-RF, C9407R-WS, C9410R, C9410R=, C9410R-1A, C9410R-96U-BDL-EDU, C9410R-96U-BNDL-1A, C9410R-96U-BNDL-1E, C9410R-96U-BNDL-A, C9410R-96U-BNDL-E, C9410R-P, C9410R-RF, C9410R-WS
