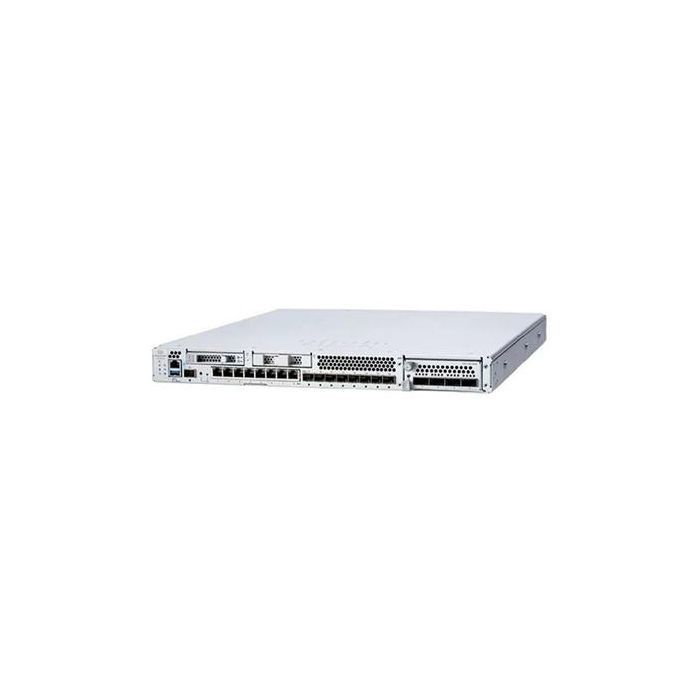

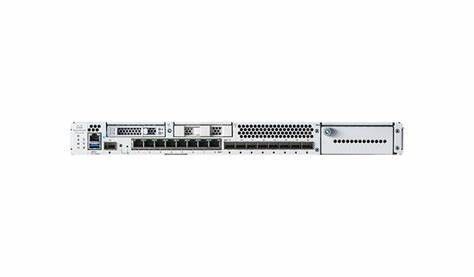

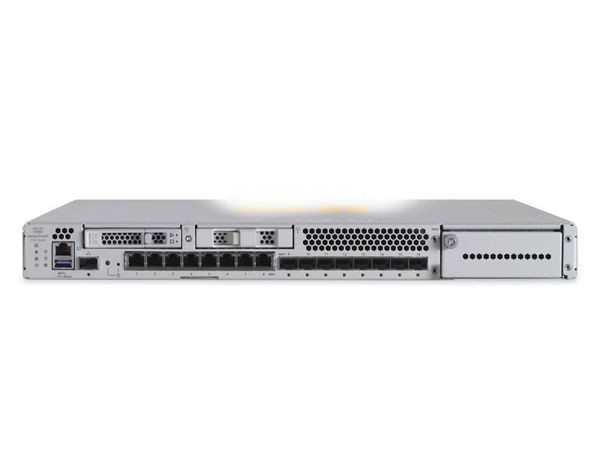

| Products Status: | Stock | Products Name: | FPR3110-ASA-K9 |
|---|---|---|---|
| Brand: | Cisco | Firewall: | 18G |
| Rack Units: | 1RU | Weight: | 10.5kg |
| Dimensions: | 4.4*43.3*50.8cm | Warranty: | 1 Year |
| Highlight: | 3110 ASA chassis Cisco Secure Firewall,FPR3110-ASA-K9 Cisco Secure Firewall,1 RU cisco asa firewall |
||
| Features | 3105 | 3110 | 3120 | 3130 | 3140 |
| Stateful inspection firewall throughput1 | 10.0 Gbps | 18.0 Gbps | 22.0 Gbps | 42.0 Gbps | 49.0 Gbps |
| Stateful inspection firewall throughput (multiprotocol)2 | 9.0 Gbps | 15.0 Gbps | 17.0 Gbps | 39.0 Gbps | 43.0 Gbps |
| Concurrent firewall connections | 1.5 million | 2 million | 4 million | 6 million | 10 million |
| New connections per second | 150,000 | 300,000 | 500,000 | 875,000 | 1,100,000 |
| IPsec VPN throughput (450B UDP L2L test) |
5.5 Gbps | 8 Gbps | 10 Gbps | 14 Gbps | 17 Gbps |
| Projected IPsec VPN throughput (450B UDP L2L test) with VPN Offload (ASA 9.18) |
7.0 Gbps | 12.0 Gbps | 15.4 Gbps | 28.0 Gbps | 33.0 Gbps |
| Maximum VPN Peers | 2,000 | 3,000 | 7,000 | 15,000 | 20,000 |
| Security contexts (included; maximum) | 2; 100 | 2; 100 | 2; 100 | 2; 100 | 2; 100 |
| High availability | Active/active and active/ standby | Active/active and active/ standby | Active/active and active/ standby | Active/active and active/ standby | Active/active and active/ standby |
| Clustering | 8 | 8 | 8 | 8 | 8 |
| Scalability | VPN Load Balancing | ||||
| Centralized management | Centralized configuration, logging, monitoring, and reporting are performed by Cisco Security Manager or alternatively in the cloud with Cisco Defense Orchestrator | ||||
| Adaptive Security Device Manager | Web-based, local management for small-scale deployments | ||||
![]()
