| Place of Origin: | China |
|---|---|
| Brand Name: | HUAWEI |
| Certification: | ce |
| Model Number: | S5735-S48T4XE-V2 |
| Minimum Order Quantity: | 1 pieces |
| Packaging Details: | BOX |
| Delivery Time: | 3-6days |
| Payment Terms: | L/C, T/T |
| Private Mold: | NO | Products Status: | Stock |
|---|---|---|---|

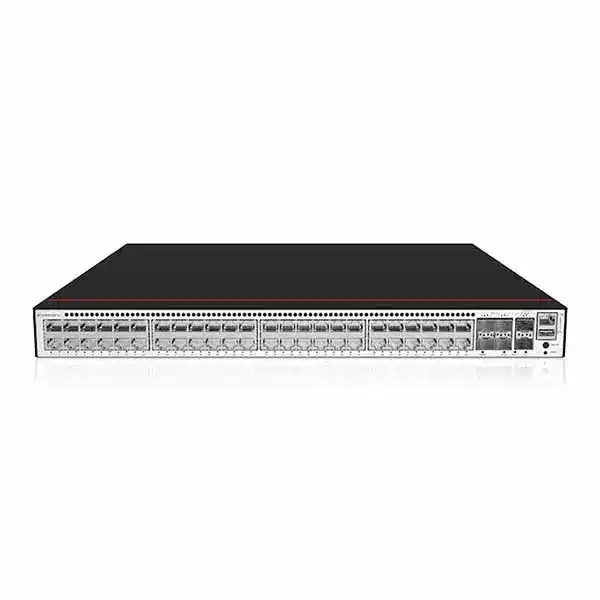

| Product Code: | S5735-S48T4XE-V2 | Fixed Ports: | 48*10/100/1000BASE-T Ports, 4*10GE SFP+ Ports, 2*12GE Stack Ports |
| Forwarding Performance: | 168 Mpps | Switching Capacity: | 224 Gbps/520 Gbps |
| Highlight: | S5735 S48T4XE V2,HUAWEI S5735 S48T4XE V2 |
||
| Product Model | CloudEngine S5735-S24T4XE-V2 | CloudEngine S5735-S24P4XE-V2 | CloudEngine S5735-S24U4XE-V2 | CloudEngine S5735-S48T4XE-V2 | CloudEngine S5735-S48P4XE-V2 | CloudEngine S5735-S48U4XE-V2 |
|---|---|---|---|---|---|---|
| Forwarding Performance | 132 Mpps | 132 Mpps | 132 Mpps | 168 Mpps | 168 Mpps | 168 Mpps |
| Switching Capacity2 | 176 Gbps/520 Gbps | 176 Gbps/520 Gbps | 176 Gbps/520 Gbps | 224 Gbps/520 Gbps | 224 Gbps/520 Gbps | 224 Gbps/520 Gbps |
| Fixed Ports | 24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports, 2 stack ports | 48 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports, 2 stack ports | ||||
| PoE | - | Supported,PoE+ | Supported,90W PoE++ | - | Supported,PoE+ | Supported,90W PoE++ |
| Power supply type | 1+1 power supply backup | 3 power supplies, N+1 power supply backup | 3 power supplies, N+1 power supply backup | 1+1 power supply backup | 3 power supplies, N+1 power supply backup | 3 power supplies, N+1 power supply backup |
| MAC Features | MAC address auto-learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses Interface-based MAC address learning limiting |
|||||
| VLAN | 4094 VLANs Voice VLAN MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports |
|||||
| IP Routing | Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, and VRRP6 | |||||
