| Place of Origin: | China |
|---|---|
| Brand Name: | HUAWEI |
| Certification: | ce |
| Model Number: | OceanStor Dorado 6800 |
| Minimum Order Quantity: | 2 pieces |
| Packaging Details: | BOX |
| Delivery Time: | 3-6days |
| Payment Terms: | L/C, T/T |
| Private Mold: | NO | Products Status: | Stock |
|---|---|---|---|
| Model Number: | OceanStor Dorado 6800V6 | ||
| Highlight: | OceanStor Dorado 6800V6 HUAWEI Storage Server,32TB HUAWEI Storage Server,HUAWEI Oceanstor Dorado 6800 V6 |
||

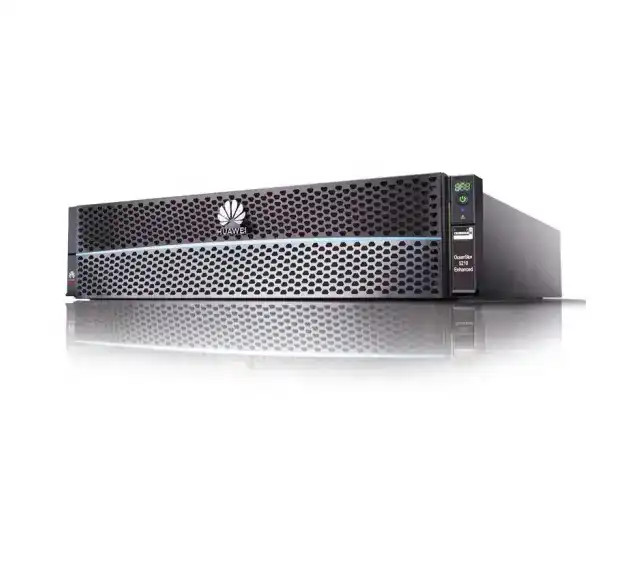

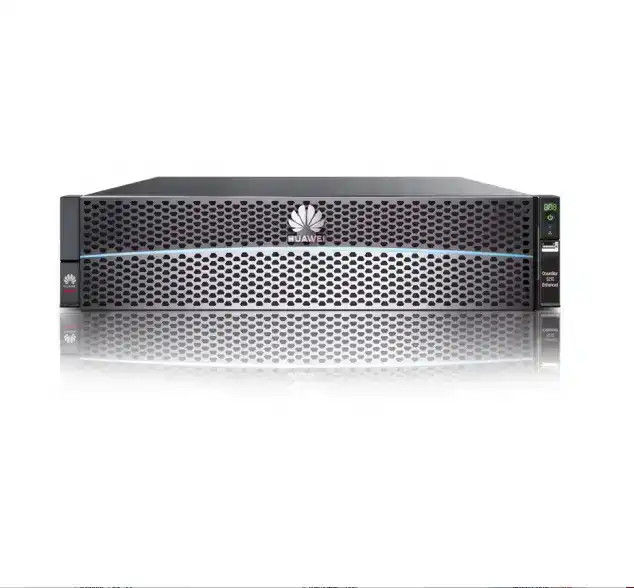

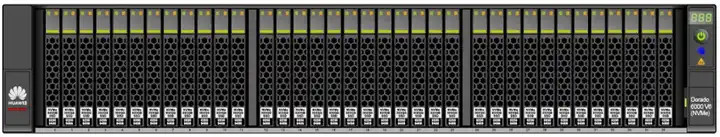

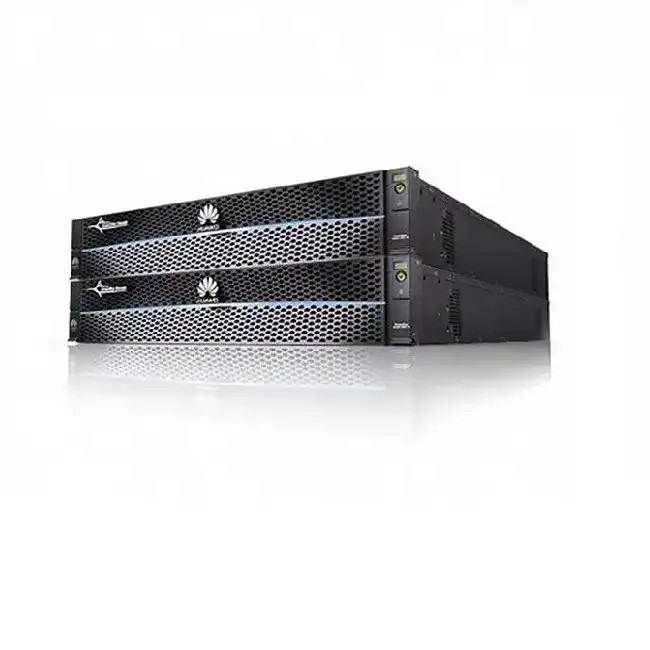

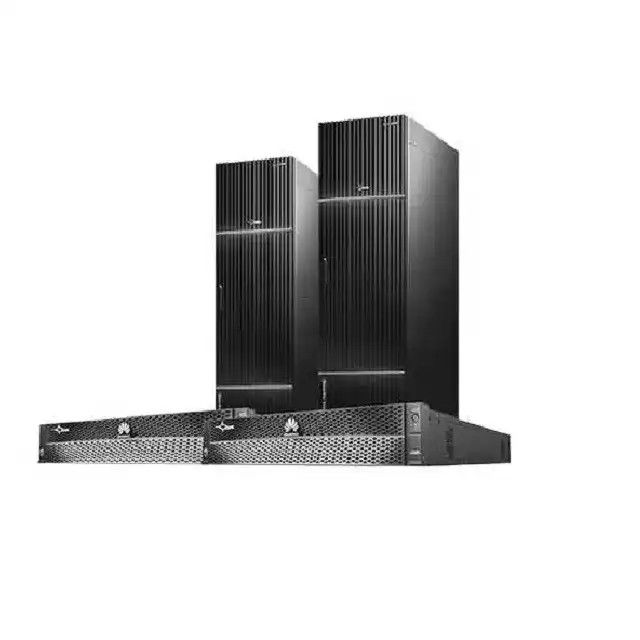

Huawei's OceanStor Dorado 6800 high-end entry-level all-flash storage system provides industry-leading performance, 6 9-level reliability (99.9999%) and intelligent acceleration to meet the increasing data service requirements of enterprise core businesses.
The OceanStor Dorado 6800 high-end storage system uses Huawei's new hardware platform and SmartMatrix's fully interconnected architecture, setting a new reliability benchmark in the industry. It can tolerate the failure of three out of four controllers without interrupting services. In addition, the storage system also uses FLASHLINK algorithm to accelerate the storage system, supports end-to-end NVMe architecture, and provides higher IOPS and lower latency data storage services.
OceanStor Dorado 6800 can meet the reliability and performance requirements of core business of large and medium-sized enterprises, and is widely used in government, finance, operators, manufacturing and other industries.
| model | OceanStor Dorado 6800 |
| Hardware specifications | |
| Controller architecture | SmartMatrix multi-controller architecture |
| Maximum cache (dual control, expands with controller) | 512GB~32TB |
| Supported storage protocols | FC, iSCSI, NFS, CIFS, FC-NVMe, NVMe Over RoCE, NDMP, S3 |
| Front-end channel port type | 8/16/32 Gbit/s FC/FC-NVMe, 10/25/40/100 GbE, 25 Gb NVMe over RoCE |
| Backend channel port type | 100G RDMA/SAS 3.0 |
| Maximum number of hot-swappable I/O modules/controller enclosure | 28 |
| Maximum number of front-end host interfaces/control box | 96 |
| Hard drive type | 1.92TB/3.84TB/7.68TB/15.36TB palm-sized NVMe SSD |
| 960GB/1.92TB/3.84TB/7.68TB/15.36TB SAS SSD | |
| Support SCM | 800GB/1.6TB SCM |
| Software specifications | |
| RAID support | RAID 5, RAID 6, RAID 10, RAID-TP, cross-frame RAID, etc. |
| value-added software | Intelligent online deduplication (SmartDedupe) |
| Intelligent online compression (SmartCompression) | |
| Smart thin provisioning (SmartThin) | |
| Snapshot (SAN&NAS) (HyperSnap) | |
| Clone (SAN&NAS) (HyperClone) | |
| Continuous Data Protection (SAN&NAS) (HyperCDP) | |
| Smart SCM cache acceleration (SmartCache) | |
| Smart data tiering (SmartTier) | |
| SmartMigration for NAS | |
| Storage and optical synergy SOCC (SAN) (HyperLink) | |
| Intelligent heterogeneous virtualization (SmartVirtualization) | |
| Smart LUN migration (SmartMigration) | |
| Intelligent Service Quality Control (SAN&NAS) (SmartQoS) | |
| Array active-active (SAN&NAS) (HyperMetro) | |
| Remote replication (SAN&NAS) (HyperReplication) | |
| Cloud Backup | |
| Quota Management (NAS) (SmartQuota) | |
| Smart Multi-Tenant (NAS) (SmartMulti-Tenant) | |
| Intelligent file classification (SmartMobility) | |
| CloudVxLAN (NAS) | |
| storage management software | Device management (DeviceManager) Multipath management (UltraPath) Remote maintenance management (DME IQ) |
