| Place of Origin: | China |
|---|---|
| Brand Name: | HUAWEI |
| Certification: | ce |
| Model Number: | H901GPHF |
| Minimum Order Quantity: | 2 pieces |
| Packaging Details: | BOX |
| Delivery Time: | 3-6days |
| Payment Terms: | L/C, T/T |
| Private Mold: | NO | Products Status: | Stock |
|---|---|---|---|
| Model Number: | H901GPHF | Product Description: | 16-port Advanced GPON OLT Interface Board |
| Product Series: | MA5800-X7 | Dimensions (H X W X D): | 442 Mm X 268.7 Mm X 263.9 Mm |
| Highlight: | Huawei SmartAX MA5800 H901GPHF,16 Port H901GPHF,SMARTAX MA5800 X7 H901GPHF |
||

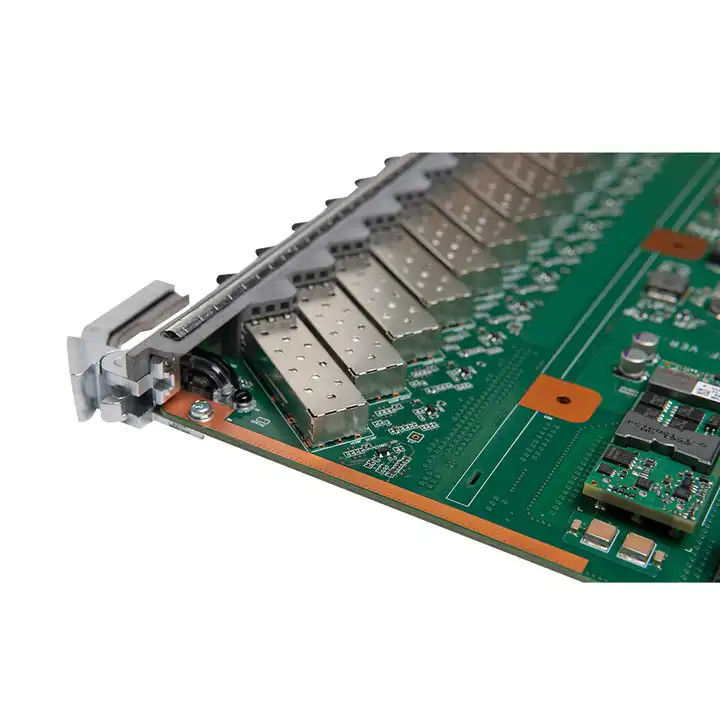

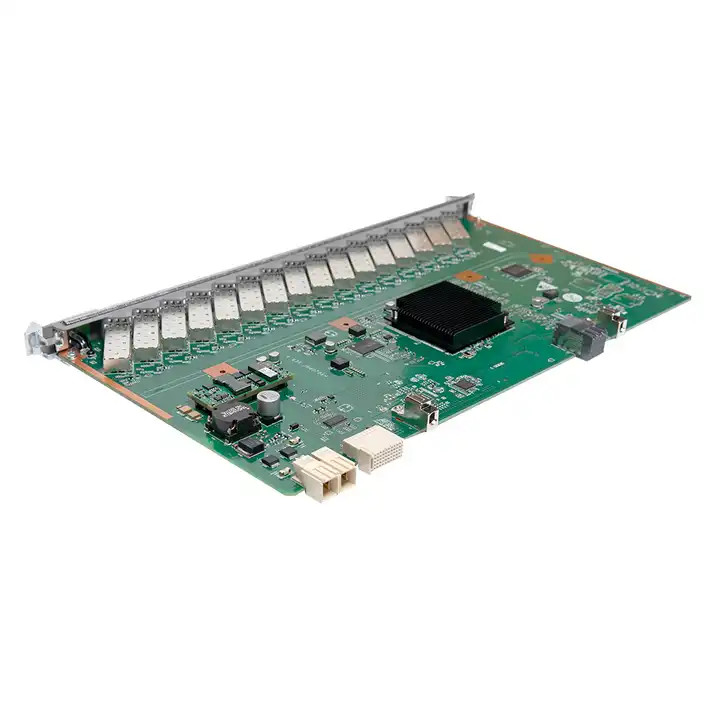

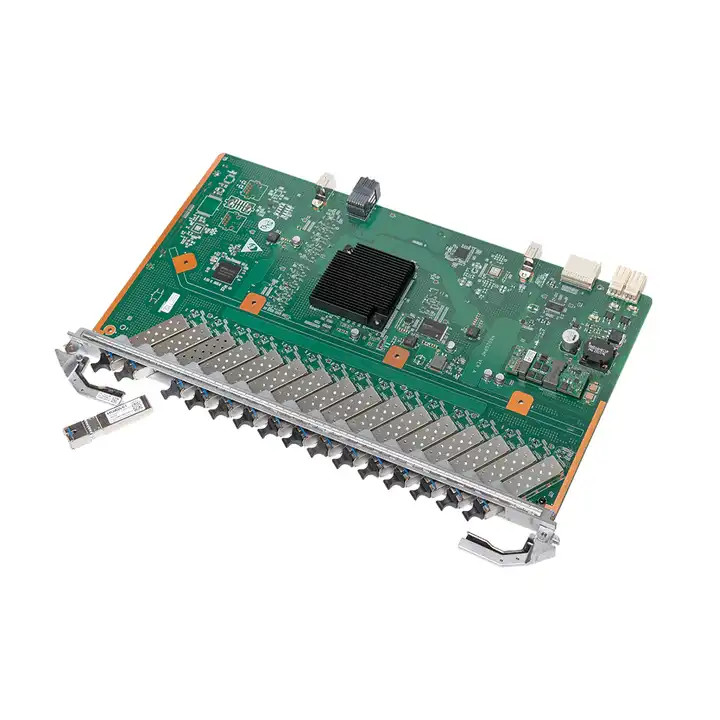

Huawei SmartAX MA5800 H901GPHF 16-port GPON OLT interface board
|
H901GPHF Specification
|
|
|
Part Number
|
03022SQW
|
|
Model
|
H901GPHF
|
|
Product Description
|
16-port Advanced GPON OLT Interface Board
|
|
Product Series
|

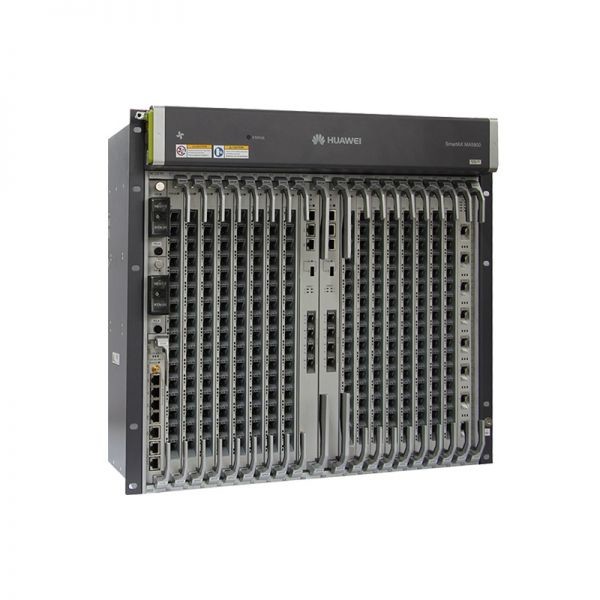

MA5800-X7
|
|
Dimensions (H x W x D)
|
442 mm x 268.7 mm x 263.9 mm
|
|
Maximum Number of Ports in a Subrack
|
112 x GPON/EPON
336 x GE/FE
56 x 10G GPON/10G EPON
56 x 10G GE
224 x E1
|
|
Switching Capacity of the System
|
7 Tbit/s
|
|
Maximum Number of MAC Addresses
|
262,143
|
|
Maximum Number of ARP/Routing Entries
|
64K
|
|
Ambient Temperature
|
-40°C to 65°C
Note: The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. The 65°C temperature refers to the highest temperature measured at the air intake vent
|
|
Working Voltage Range
|
-38.4V DC to -72V DC
|
|
Layer 2 Features
|
VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option82
|
|
Layer 3 Features
|
Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF
|
|
MPLS & PWE3
|
MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switching
|
|
IPv6
|
IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relay
|
|
Multicast
|
IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicast
|
|
QoS
|
Traffic classification, priority processing, trTCM-based traffic policing, WRED, traffic shaping, HqoS, PQ/WRR/PQ + WRR, and ACL
|
|
System Reliability
|
GPON type B/type C protection, 10G GPON type B protection, BFD, ERPS (G.8032), MSTP, intra-board and inter-board LAG, In-Service Software Upgrade (ISSU) of the control board, 2 control boards and 2 power boards for redundancy protection, in-service board fault detection and rectification, and service overload control
|
