| Place of Origin: | China |
|---|---|
| Brand Name: | Cisco |
| Certification: | CE ROHS |
| Model Number: | C9K-PWR-650WAC-R |
| Minimum Order Quantity: | 1 |
| Highlight: | C9500 Cisco Power Supplies,650W Cisco Power Supplies,Cisco 9500 Power Supply C9K-PWR-650WAC-R |
||
|---|---|---|---|

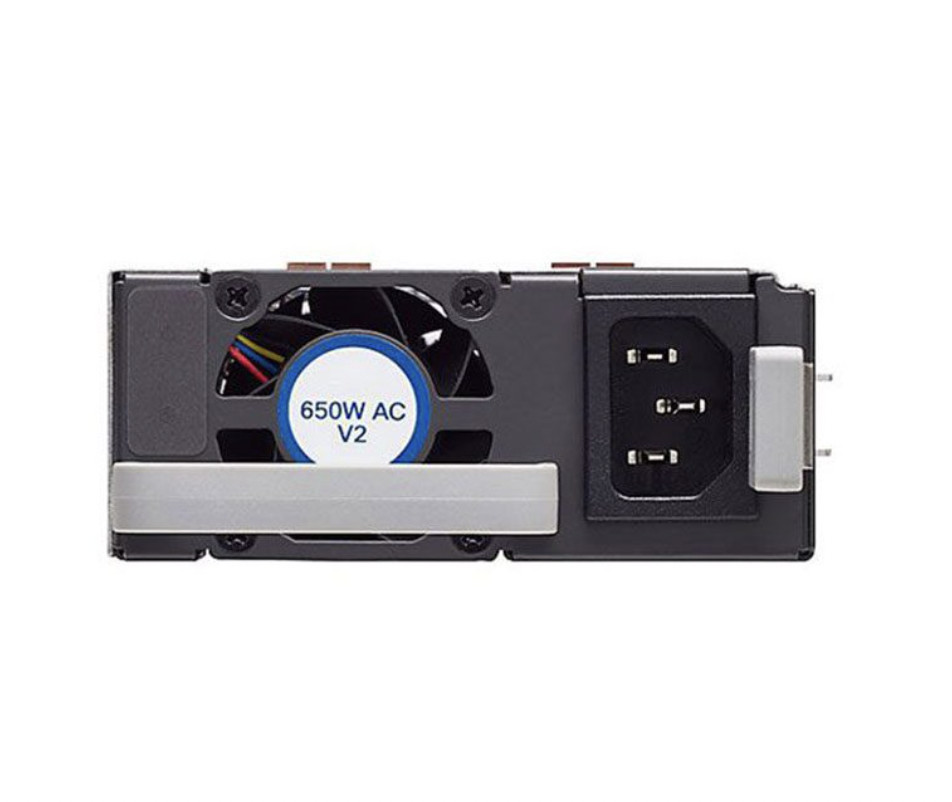

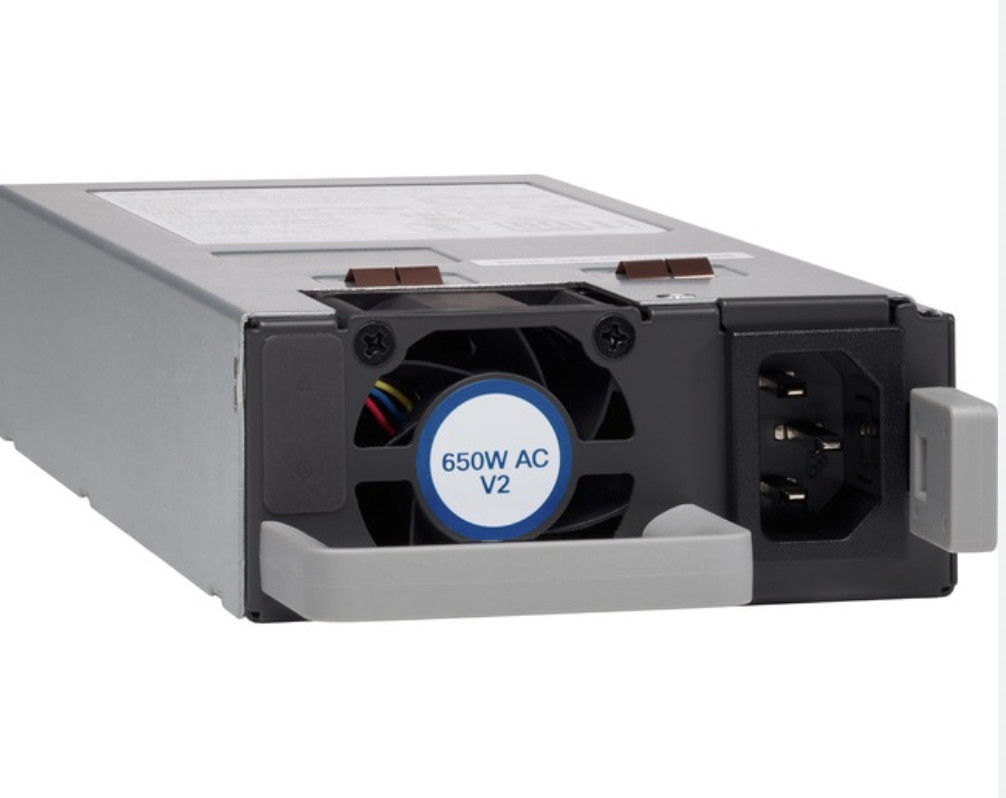

Cisco c9500 switch 650W AC Alternate PSU On C9500 C9K-PWR-650WAC-R Power Supply Module
| Technical Specifications | |
| Table 1. Technical Specifications of the Alternate Power Supply Unit | |
| Characteristic | Specification |
| AC input voltage | Nominal range: 100 and 240 VAC (Range: 90-132 VAC, 180-264 VAC) |
| AC input frequency | Nominal range: 50 to 60 Hz (Range: 47-63 Hz) |
| Maximum AC input current | 7.6 A at 90 - 132 VAC, 3.65 A at 180 - 264 VAC |
| Maximum input volt Amperes | 760 VA at 100 VAC |
| Maximum output power per power supply | 650 W |
| Maximum in-rush current | 11 A (sub-cycle duration) |
| Maximum hold-up time | 12 ms at 650 W |
| Power supply output voltage | 12 VDC |
| Power supply standby voltage | 12 VDC |
| Efficiency rating | Climate Savers Platinum Efficiency (80Plus Platinum certified) |
| Form factor | RSP1 |
