| Place of Origin: | Beijing, China |
|---|---|
| Brand Name: | Dell |
| Model Number: | MX5108n, MXG610s, MX9116n, MX7116n |
| Minimum Order Quantity: | 2 pieces |
| Packaging Details: | New Original Packing |
| Supply Ability: | 100 Piece/Pieces per Quarter |
| Private Mold: | Yes | Products Status: | Stock |
|---|---|---|---|
| Type: | Rack | Processor Main Frequency: | 3.8GHZ |
| Processor Type: | INTEL | ||
| Highlight: | MX9116n Dell EMC Storage Server,MX7116n Dell EMC Storage Server,Dell EMC poweredge mx5108n |
||
|
PowerEdge Architecture
|

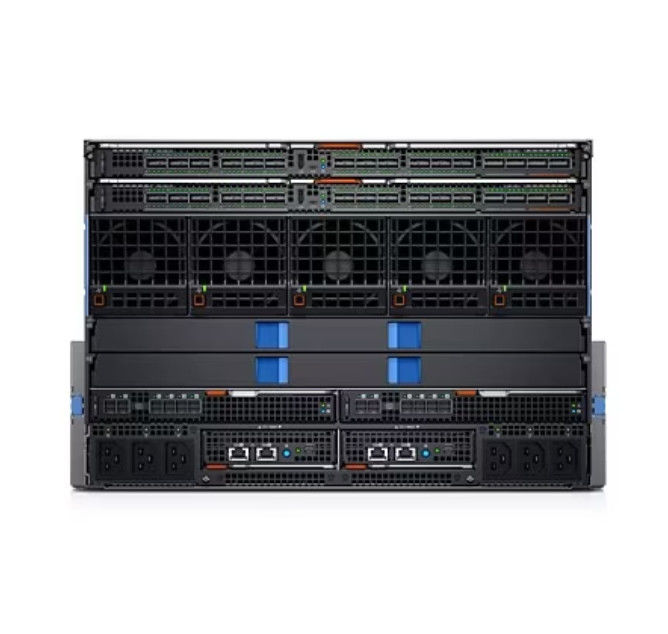

PowerEdge MX
|
PowerEdge FX2/PowerEdge FX2S
|
PowerEdge VRTX
|
|
Form factor
|
7U enclosure with 8 slots
|
Full-width, 2U enclosure
|
Tower or 5U rack modular chassis
|
|
Description
|
Modular chassis that accommodates a variety of
compute and storage sled combinations, connected by high-speed fabrics, sharing power, cooling and managed by embedded OpenManage Enterprise – Modular Edition systems management |
An industry standard 2U rack-mount chassis that
supports shared, redundant power and cooling, I/O fabric and management infrastructure and accommodates compact, customizable blocks of server storage and networking. |
Integrates servers, storage, networking and
management into a quiet data center under your desk |
|
I/O slots
|
2 USB 2.0 Type A or KVM control
(keyboard and mouse only) 1 Mini Display Port connector for video |
FX2s: Supports up to 8 low-profile/half-length
PCIe 3.0 modules |
Up to 8 PCIe slots
|
|
Server Sleds
|
Up to 8 PowerEdge MX740c
Up to 4 PowerEdge MX840c |
Up to 8 FC430
Up to 4 FC640 Up to 2 FC830 Up to 1 FC830 mixed with up to 2 FC640 |
Up to 4 M640
Up to 2 M830 |
|
Storage Sleds
|
Up to 7 PowerEdge MX5016s
|
FX2S:
Up to 2 FD332 mapped to 4 FC430 Up to 3 FD332 mapped to 1 FC640 Up to 2 FD332 mapped to 2 FC640 Up to 2 FD332 mapped to 1 FC830 |
Internal: Up to 12 x 3.5” or 25 x 2.5” drives
(SED available) External: Up to four MD1200 (12 x 3.5” drives) or MD1220 (24 x 2.5” drives) |
|
Power Supplies
|
Up to 6 PSUs; Platinum rated – 3000W output with high
line AC input; N+1 or Grid redundancy support |
Hot-plug PSUs: Platinum rated – 2400 W, 2000 W,
or 1600WAC in 1+1 redundant or ROA or 2+0 non-redundant configurations |
Supports up to four 1100 W or 1600 W AC
power supply units (PSU) in 3+1 and 2+2 redundant configurations |
|
Fans
|
5 80 mm rear and 4 60mm front hot-swap fans
|
8 hot-swappable fans provide cooling to the
I/O components in the system |
6 hot-pluggable, redundant fan modules
and 4 blower modules |
|
I/O and Ports
|
Up to 2 pairs of redundant general-purpose switch or
pass-through modular bays (Fabrics A and B); redundant pair of storage specific switch bays (Fabric C) Up to 25Gbps Ethernet, 32Gbps Fibre Channel, 12Gbps SAS |
Choice of 3 Dell EMC modules: FN410s 4-ports SFP+,
FN410t 4-port 10Gb Base-T, FN2210s 4-port Combination of 2 Fibre Channel and 2 Ethernet ports, or 2 pass-through modules. |
Internal 1GbE 24-port switch
Internal 10GbE switch Internal 1GbE 8-port pass-through module |
|
Embedded
Management |
OpenManage Enterprise – Modular Edition
(OME-Modular); running on up to 2 redundant MX9002m management modules Quick Sync 2 Bluetooth Low Energy (BLE)/ wireless module option |
One Chassis Management Controller (CMC)
|
Chassis Management Controller (CMC)
|
