| Place of Origin: | China |
|---|---|
| Brand Name: | Dell |
| Certification: | CE 3C ROHS |
| Model Number: | R760 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | New Original Packing |
| Supply Ability: | 100 Piece/Pieces per Quarter |
| Type: | Rack | Processor Type: | 4410Y DDR5 |
|---|---|---|---|
| Highlight: | 2G DDR5 Dell EMC Storage Server,DDR5 R760 Dell EMC Storage Server,EMC DDR5 dell poweredge r760 |
||
|
Feature
|
Technical Specifications
|
|
|
Processor
|
Up to two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor and with optional Intel® QuickAssist
Technology |
|
|
Memory
|
• 32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 4800 MT/s
• Supports registered ECC DDR5 DIMMs only |
|
|
Storage controllers
|
• Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB • External HBA (non-RAID): HBA355e • Software RAID: S160 |
|
|
Drive Bays
|
Front bays:
• Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB |
|
|
Power Supplies
|
• 2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
• 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant • 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant • 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant • 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant • 1100 W LVDC -48 — -60 VDC, hot swap redundant • 800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant • 700 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant |
|
|
Cooling Options
|
• Air cooling
• Optional Direct Liquid Cooling (DLC) Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate. |
|
|
Fans
|
• Standard (STD) fans/High performance Silver (HPR) fans/ High performance Gold (VHP) fans
• Up to 6 hot plug fans |
|
|
Dimensions
|
• Height – 86.8 mm (3.41 inches)
• Width – 482 mm (18.97 inches) • Depth – 772.13 mm (30.39 inches) with bezel 758.29 mm (29.85 inches) without bezel |
|
|
Form Factor
|
2U rack server
|
|
|
Embedded Management
|
• iDRAC9
• iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless module |
|
|
Bezel
|
Optional LCD bezel or security bezel
|
|
|
OpenManage Software
|
• CloudIQ for PowerEdge plug in
• OpenManage Enterprise • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin |
|
|
Mobility
|
OpenManage Mobile
|
|
|
OpenManage Integrations
|
• BMC Truesight
• Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager |
|
|
Security
|
• Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secure Erase • Secured Component Verification (Hardware integrity check) • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
|
|
Embedded NIC
|
2 x 1 GbE LOM card (optional)
|
|
|
Network options
|
1 x OCP card 3.0 (optional)
Note: The system allows either LOM card or an OCP card or both to be installed in the system. |
|
|
GPU Options
|
Up to 2 x 350 W DW and 6 x 75 W SW
|
|
|
Ports
|
Front Ports
• 1 x iDRAC Direct (Micro-AB USB) port • 1 x USB 2.0 • 1 x VGA |

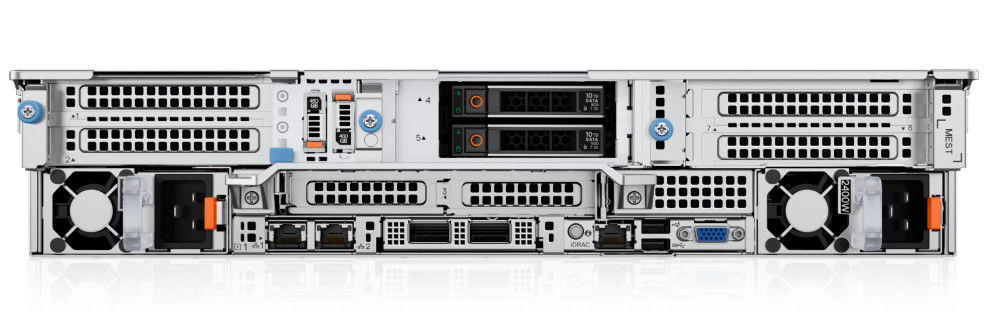

Rear Ports
• 1 x Dedicated iDRAC Ethernet port • 1 x USB 2.0 • 1 x USB 3.0 • 1 x VGA • 1 x Serial (optional) • 1 x VGA (optional for Direct Liquid Cooling configuration) |
|
|
Internal Ports
• 1 x USB 3.0 (optional) |
|
|
PCIe
|
Up to eight PCIe slots:
• Slot 1: 1 x8 Gen5 or 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length • Slot 2: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length or 1 x16 Gen5 Full height, Full length • Slot 3: 1 x16 Gen4 Low profile, Half length • Slot 4: 1 x8 Gen4 Full height, Half length • Slot 5: 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length • Slot 6: 1 x16 Gen4 Low profile, Half length • Slot 7: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length • Slot 7 SNAPI: 1 x16 Gen5 Full height, Half length • Slot 8: 1 x8 Gen5 or 1 x8 Gen4 Full height, Half length |
|
|
Operating System and Hypervisors
|
• Canonical Ubuntu Server LTS
• Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi For specifications and interoperability details, see Dell.com/OSsupport. |
|
|
OEM-ready version available
|
From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information,
visit Dell.com -> Solutions -> OEM Solutions. |
|
