NVIDIA Mellanox MCX75310AAS-HEAT Network Adapter with PCIe Gen 4.0/5.0 Single OSFP Infiniband and Ethernet and Secure Boot Enabled

Basic Information

Place of Origin:	China
Brand Name:	NVIDIA Mellanox
Model Number:	MCX75310AAS-HEAT

Minimum Order Quantity:	1/set
Delivery Time:	2-3 work days
Payment Terms:	T/T
Supply Ability:	50pcs per week

Get Best Price Contact Now

Detail Information

Adapter Card Size:	Pcie Half Height, Half Length 2.71 In. X 6.6 In. (68.90mm X 167.65 Mm)	Interfaces:	Pci Express Interface: Gen 4.0/5.0: Serdes @ 16/32gt/s, X16 Lanes (gen 3.0 Compatible)
Networking Port :	Single Osfp Infiniband And Ethernet	Capabilities:	Secure Boot Enabled, Crypto Enabled
Temperature:	Operational: 0°c To 55°c Non-operational: -40°c To 70°c	Humidity:	Operational: 10% To 85% Relative Humidity Non-operational: 10% To 90% Relative Humidity
Highlight:	PCIe Gen 4.0/5.0 Network Adapter , Single OSFP Infiniband and Ethernet NIC , Secure Boot Enabled ConnectX Adapter

Product Description

NVIDIA Mellanox MCX75310AAS-HEAT

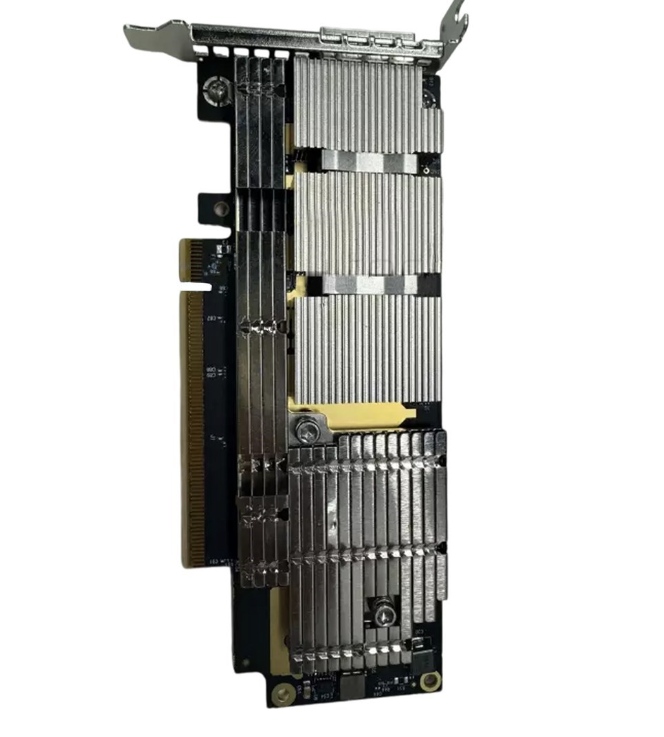

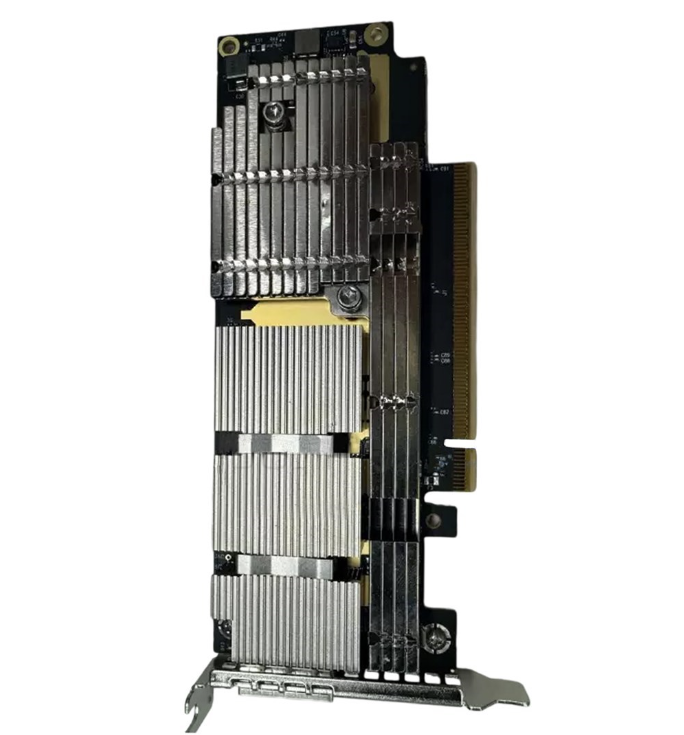

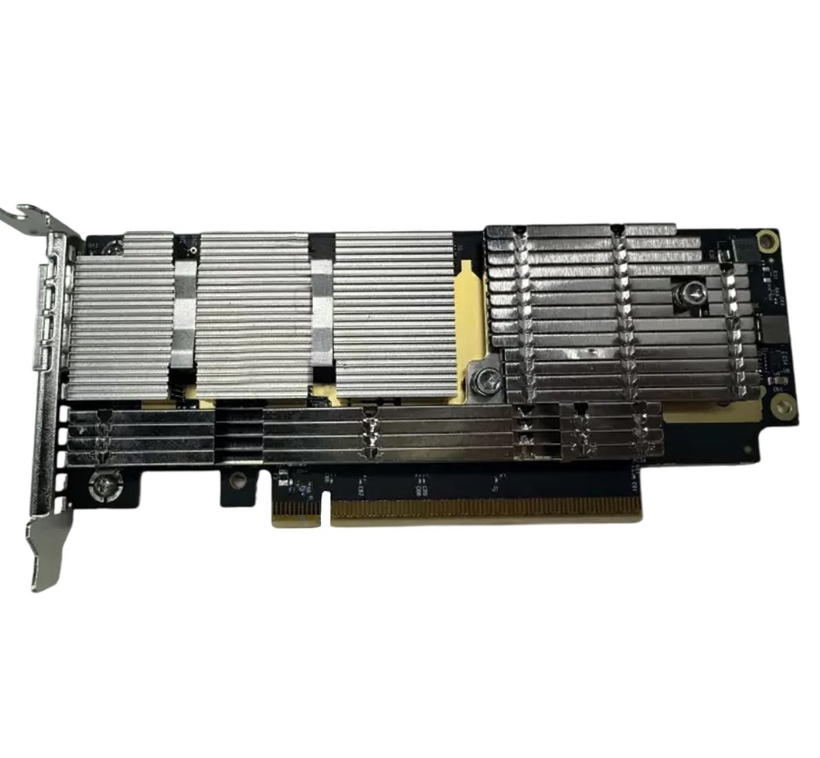

NVIDIA Mellanox MCX75310AAS-HEAT Network Adapter
NVIDIA Mellanox ConnectX Ethernet NICs deliver exceptional network performance for low-latency, high-throughput applications. These adapters support one, two, or four ports at speeds ranging from 10 to 400 gigabits per second (Gb/s) Ethernet.

Product Specifications

Adapter Card Size	PCIe Half Height, Half Length 2.71 in. x 6.6 in. (68.90mm x 167.65 mm)
Interfaces	PCI Express Gen 4.0/5.0: Serdes 16/32GT/s, x16 lanes (Gen 3.0 compatible)
Networking Port	Single OSFP Infiniband and Ethernet
Data Rate	Infiniband (default mode): NDR200/HDR/HDR100/EDR/FDR/SDR Ethernet: 200/100/50/40/10/1 Gb/s Ethernet
Protocol Support	Infiniband: IBTA v1.5a Auto-negotiation: Ndr200 (2 Lanes X 100gb/s Per Lane) Port, Hdr (50gb/s Per Lane) Port, Hdr100 (2 Lanes X 50gb/s Per Lane), Edr (25gb/s Per Lane) Port, Fdr (14.0625gb/s Per Lane), 1x/2x/4x Sdr (2.5gb/s Per Lane) Ethernet: 200gaui-4 C2m, 200gbase-cr4, 100gaui-2 C2m, 100gbase-cr4, 100gbase-cr2, 100gbase-cr1, 50gaui-2 C2m, 50gaui-1 C2m, 50gbase-cr, 50gbase-r2, 40gbase-cr4, 40gbase-r2, 25gbase-r, 10gbase-r, 10gbase-cx4, 1000base-cx, Caui-4 C2m, 25gaui C2m, Xlaui C2m, Xlppi, Sfi
Capabilities	Secure Boot Enabled, Crypto Disabled
Electrical and Thermal Specifications	Voltage: 12V, 3.3VAUX Maximum Current: 100mA
Temperature	Operational: 0°C to 55°C Non-operational: -40°C to 70°C
Humidity	Operational: 10% to 85% Relative Humidity Non-operational: 10% to 90% Relative Humidity
