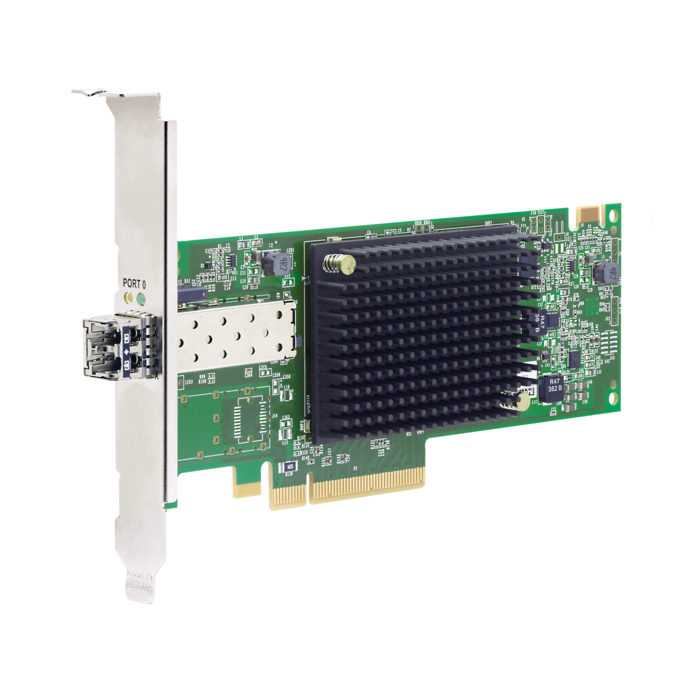

Broadcom LPe36000-M64 64GFC/32GFC FC Host Bus Adapter with PCIe Gen4x8 and XE601 I/O Controller

Broadcom LPe36000-M64 64GFC/32GFC FC Host Bus Adapter with PCIe Gen4x8 and XE601 I/O Controller
Broadcom LPe36000-M64 64GFC/32GFC FC Host Bus Adapter with PCIe Gen4x8 and XE601 I/O Controller
Basic Information
Place of Origin: China
Brand Name: Broadcom
Model Number: LPe36000-M64
Minimum Order Quantity: 1/set
Delivery Time: 2-3 work days
Payment Terms: T/T
Supply Ability: 50pcs per week
Get Best Price Contact Now
Detail Information
ECD Cable Support: 0.5m To 100m At 64GFC/32GFC On 50/125 µm OM4 MMF, 0.5m To 100m At 64GFC/32GFC On 50/125 µm OM5 MMF, 0.5m To 70m At 64GFC/32GFC On 50/125 µm OM3 MMF, 10 Km At 32GFC/16GFC On 9/125 µm Singlemode Fiber When Emulex Approved Longwave Transceivers Are Used OS Support: Additional Support Is Available From OEMs And Partners, Microsoft Windows, Oracle Linux, Oracle Linux With The Unbreakable Enterprise Kernel (UEK), Oracle Solaris, Red Hat Enterprise Linux, SUSE® Linux Enterprise Server, VMware VSphere, OpenEuler
Generation: Gen 7 (64/32GFC) Hardware Environment: AMD, Intel X64; AMD, Intel X86; ARMv8 64-bit; PowerPC
Host Bus Type: PCIe Gen4x8 I/O Controller: XE601
Operating Humidity: 5% To 95% Non-condensing Physical Dimensions: Short, Low Profile PCIe Card, 167.64mm X 68.91mm (6.60” X 2.71”), Standard Bracket (low Profile Bracket Ships In Box)
Storage Temperature: -20° To 85°C (-4° To 185°F) Optical Data Rates: 64GFC (28.9 GBaud PAM4), 32GFC (28.05 GBaud NRZ), 16GFC (14.025 GBaud NRZ), Automatically Detected
Highlight:

64GFC/32GFC FC Host Bus Adapter

,

PCIe Gen4x8 Fibre Channel HBA

,

XE601 I/O Controller Emulex HBA

Product Description

Broadcom LPe36000-M64 FC Host Bus Adapter
Applications continue to grow in size and scale, driving enterprises toward advanced server technologies with hundreds of processor cores and high-performance storage solutions including low-latency NVMe all-flash arrays (AFAs). NVMe significantly enhances storage area network (SAN) performance, making high-speed networking technology selection crucial for achieving maximum system-wide performance.
Technical Specifications
Lifecycle Active
Distributor Inventory Yes
ECD Cable Support 0.5m to 100m at 64GFC/32GFC on 50/125 µm OM4 MMF, 0.5m to 100m at 64GFC/32GFC on 50/125 µm OM5 MMF, 0.5m to 70m at 64GFC/32GFC on 50/125 µm OM3 MMF, 10 km at 32GFC/16GFC on 9/125 µm singlemode fiber when Emulex approved longwave transceivers are used
OS Support Additional support is available from OEMs and partners, Microsoft Windows, Oracle Linux, Oracle Linux with the Unbreakable Enterprise Kernel (UEK), Oracle Solaris, Red Hat Enterprise Linux, SUSE® Linux Enterprise Server, VMware vSphere, openEuler
Generation Gen 7 (64/32GFC)
Hardware Environment AMD, Intel x64; AMD, Intel x86; ARMv8 64-bit; PowerPC
Host Bus Type PCIe Gen4 x8
Industry Standards FC-DA, FC-DA-2, FC-FS-1, FC-FS-2, FC-FS-3, FC-FS-4, FC-FS-5 (Class 3), FC-GS-1/2/3/4/5/6/7, FC-GS-8, FC-HBA, FC-LS-1, FC-LS-2, FC-LS-3, FC-LS-4, FC-LS-5 INCITS 569-202x rev 5.0, FC-MI, FC-NVMe-2, FC-NVMe/AM1, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PI-2, FC-PI-3, FC-PI-4, FC-PI-5, FC-PI-6, FC-PI-7, FC-SP-2, FC-TAPE, FCP-2/3, FCP-4, SBC-2, SBC-3, SPC-3, SPC-4, SSC-2, SSC-3, SSC-4
I/O Controller XE601
Operating Humidity 5% to 95% non-condensing
Operating Temperature 0°C to 55°C
Optical Data Rates 64GFC (28.9 GBaud PAM4), 32GFC (28.05 GBaud NRZ), 16GFC (14.025 GBaud NRZ), automatically detected
Optics Optics Short wave lasers with LC type connector optics
Ordering Part # LPe36000-M64
Physical Dimensions Short, low profile PCIe card, 167.64mm x 68.91mm (6.60" x 2.71"), Standard bracket (low profile bracket ships in box)
Ports 1
Regulatory Certifications Australia(RCM Class A), BSMI RoHS Compliant, China RoHS Compliant, EU (Low Voltage Directive), EU RoHS compliant, Europe CE Mark, Japan(VCCI Class A), Korea (KCC Class A), North America (FCC/ICES Class A, UL/CSA Recognized), Taiwan(BSMI Class A), UKCA Mark
Storage Temperature -20° to 85°C (-4° to 185°F)
Ordering Information
Optional Accessories
  • LP64-SW-OPT-1 64GFC Optic (short wave laser with LC connector SFP+ transceiver): 1 pack
  • LP64-SW-OPT-2 64GFC Optics (short wave laser with LC connector SFP+ transceiver): 2 pack
Package Contents
  • Quantity 1, low-profile Host Bus Adapter with optic/s
  • Quantity 1, standard bracket (installed)
  • Quantity 1, low-profile bracket
Broadcom LPe36000-M64 64GFC/32GFC FC Host Bus Adapter with PCIe Gen4x8 and XE601 I/O Controller 0
