| Place of Origin: | China |
|---|---|
| Brand Name: | Juniper |
| Model Number: | PTX10001-36MR-AC |
| Minimum Order Quantity: | 2 pieces |
| Price: | ask |
| Delivery Time: | To be negotiated |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 pieces per week |
| System Capacity: | 9.6 Tbps | Slot Capacity: | N/A |
|---|---|---|---|
| Chassis Per Rack: | 40 | Dimensions (W X H X D): | 17.3 X 1.75 X 25.5 In (44 X 4.45 X 64.8 Cm) |
| Maximum Weight: | 39.7 Lbs (18.0 Kg) | Mounting Front: | Rack Mount |
| Highlight: | PTX10001-36MR-AC Packet Transport Router,Advanced Packet Transport Router,High Speed Packet Transport Router |
||

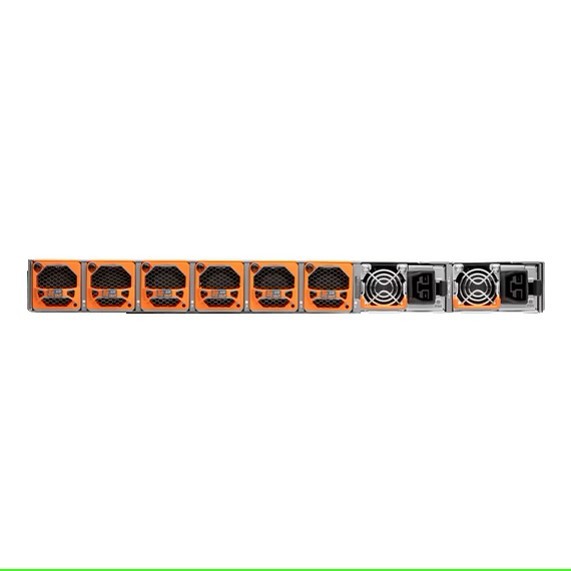

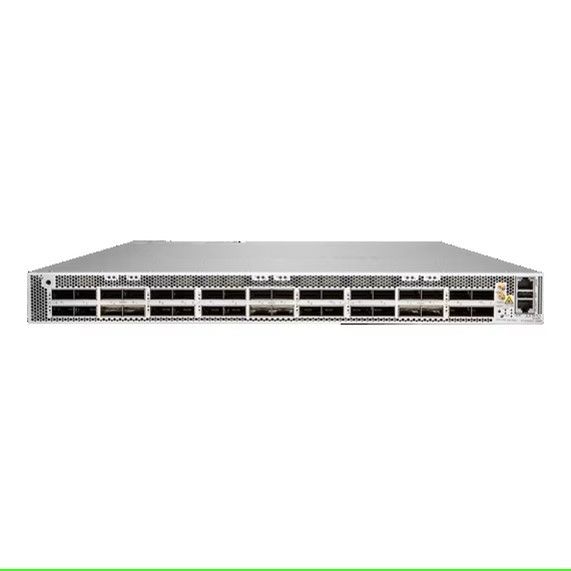

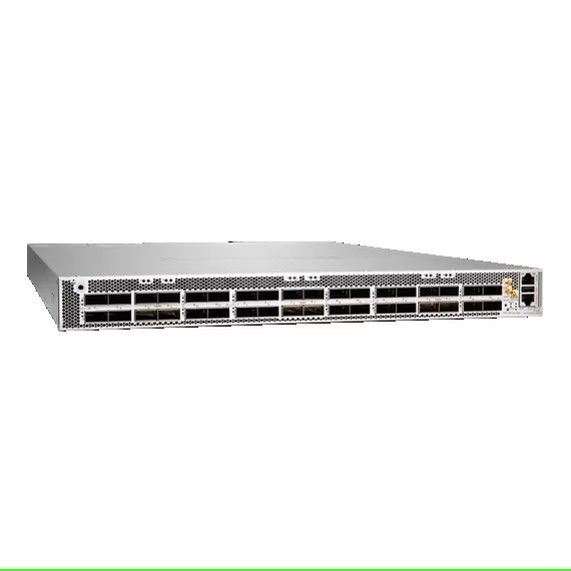

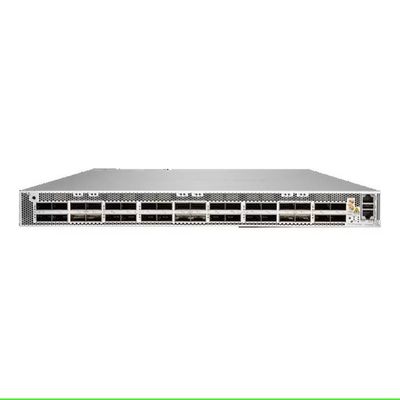

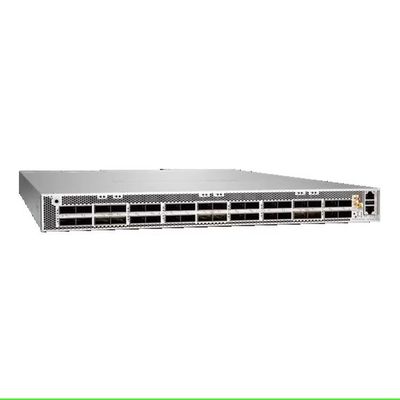

The PTX10001-36MR is a fixed-configuration router that supports 10-Gbps, 25-Gbps, 40-Gbps, 100-Gbps, and 400-Gbps port speeds in a single 1-U stackable platform.
Control operations are performed by the Routing Engine, which runs the Juniper Networks Junos OS Evolved operating system (Junos OS Evolved). The Routing Engine handles routing protocols, traffic engineering, policy, policing, monitoring, and configuration management. Junos OS Evolved is installed on the PTX10001-36MR router’s two internal 200-gigabyte M.2 SATA solid-state drives (SSDs). The Routing Engine is enhanced by a 2.1-GHz 12 core Intel CPU and 64 GB of RAM.
Forwarding operations are performed by the Packet Forwarding Engine, which uses Juniper Networks Triton silicon.
| System capacity | 9.6 Tbps |
|---|---|
| Slot Capacity | N/A |
| Chassis per rack | 40 |
| Dimensions (W x H x D) | 17.3 x 1.75 x 25.5 in (44 x 4.45 x 64.8 cm) |
| Port densities | 48 x 1/10/25GbE 8 x 40/100GbE |
| Maximum weight | 39.7 lbs (18.0 kg) |
| Mounting Front rack | rack mount |
| Rack units | 1U |
