| Place of Origin: | China |
|---|---|
| Brand Name: | Juniper |
| Certification: | ce |
| Model Number: | QFX5120-32C-AFI |
| Minimum Order Quantity: | 2 pieces |
| Packaging Details: | BOX |
| Delivery Time: | 3-6days |
| Payment Terms: | L/C, T/T |
| Private Mold: | NO | Products Status: | Stock |
|---|---|---|---|
| Model Number: | QFX5120-32C-AFI | Switching Capacity: | 124 (with Breakout Cable) |
| Max Load: | 515 W | Typical Load: | 380 W |
| Highlight: | QFX5120 32 port network switch,QFX5120 Network Switch,QFX5120 32 port network switch |
||

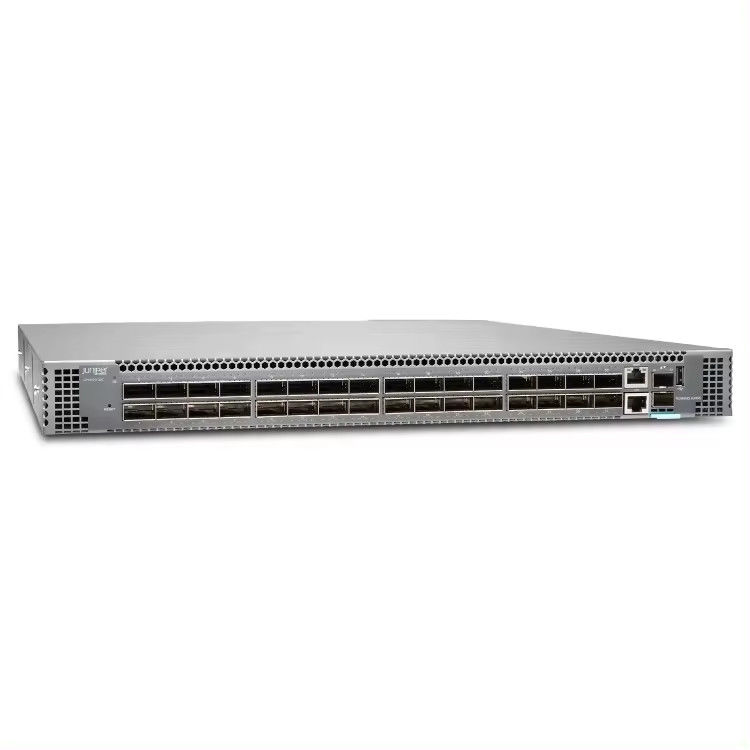

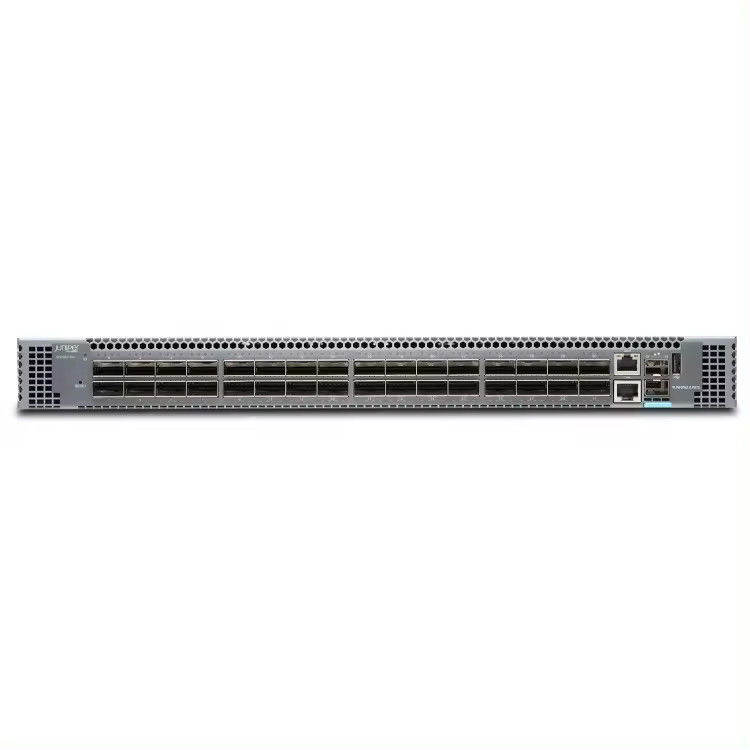

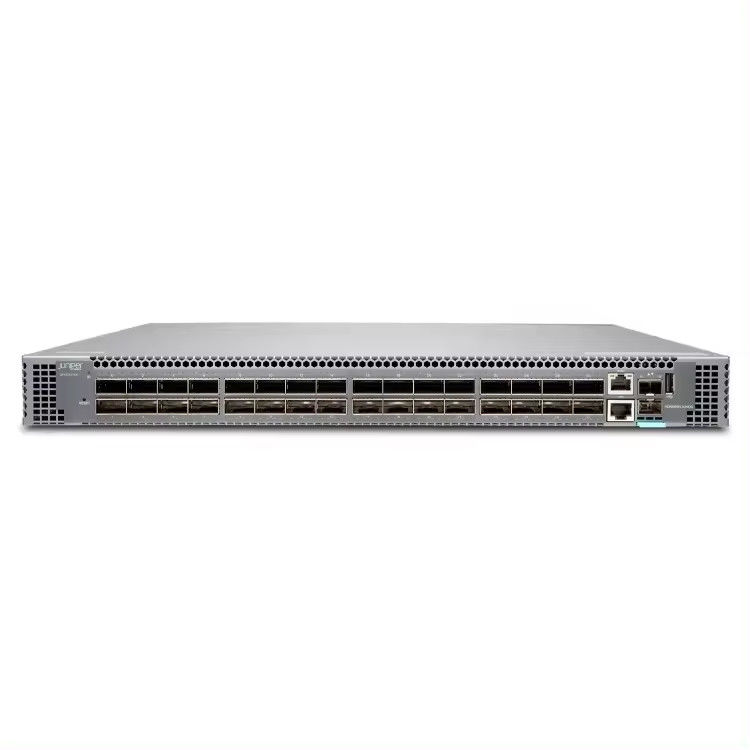

QFX5120-32C-AFI Juniper QFX5120-32C Ethernet Switch
|
Switching Capacity
|
124 (with breakout cable)
|
|
Weight
|
21.12 lb (9.58 kg)
|
|
Dimensions (HxWxD)
|
1.7 x 17.26 x 20.27 in (4.32 x 43.84 x 51.5 cm)
|
|
Power Consumption
|
* Max load: 515 W
* Typical load: 380 W |
|
Interface Options
|
* 2 management ports: 2 x RJ-45 ports
* 10GbE SFP+: 2 native ports plus 124 (with 4 x 10GbE breakout cable) * 25GbE SFP: 124 (with breakout cable) * 40GbE QSFP+: 32 (ports 0-30 can be configured as a 4 x 10GbE interface) * 100GbE QSFP28: 32 (ports 0-30 can be configured as a 4 x 25GbE interface) * SFP GbE optical and copper module * SFP+ 10GbE optical modules * SFP+ DAC cables: 1/3/5 m twinax copper and 1/3/5/7 m active twinax copper * SFP28 DAC cables: 1/3 m twinax copper * SFP28 Optics: SR, LR * QSFP+ to SFP+: 10GbE direct attach breakout copper (1/3 m twinax copper cable) |
|
Airflow
|
* Front-to-back (airflow out) for hot aisle deployment
* Back-to-front (airflow in) for cold aisle deployment |
|

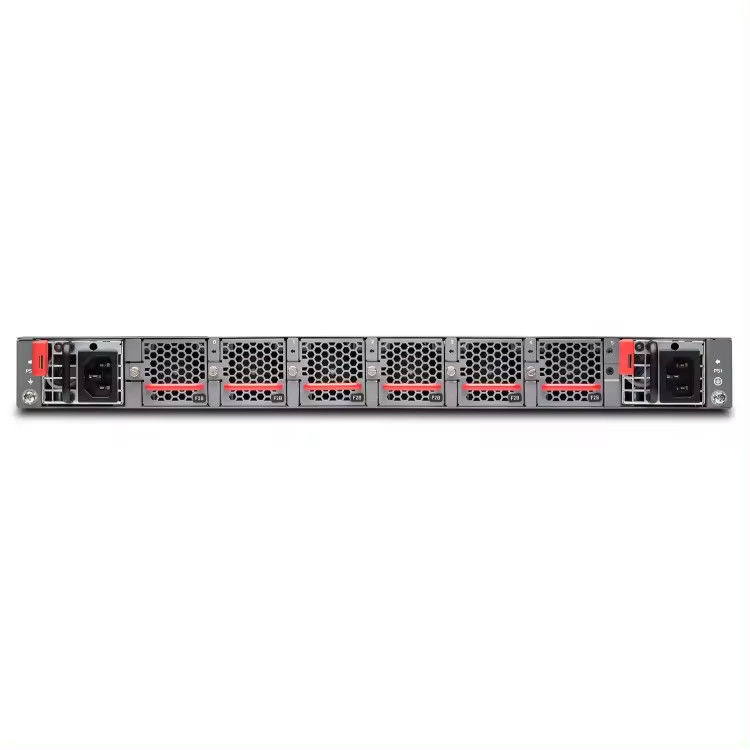

Power Supply and Fan Modules
|
* Dual redundant (1+1) and hot-pluggable 650 W AC/DC power supplies
* 100-240 V single phase AC power * -48 to -60 V DC power supply * Redundant 4+1 (QFX5120-48Y and QFX5120-48T) or 5+1 (QFX5120-32C) and hot-pluggable fan modules for front-to-back or back-to-front airflow |
