| Place of Origin: | Beijing, China |
|---|---|
| Brand Name: | Lenovo |
| Model Number: | 7D2VCTO1WW, 7D2WCTO1WW |
| Minimum Order Quantity: | 2 pieces |
| Packaging Details: | New Original Packing |
| Supply Ability: | 100 Piece/Pieces per Quarter |
| Type: | Rack | Processor Type: | AMD |
|---|---|---|---|
| Highlight: | AMD Lenovo Rack Server,EPYC Lenovo Rack Server,7D2VCTO1WW |
||
|

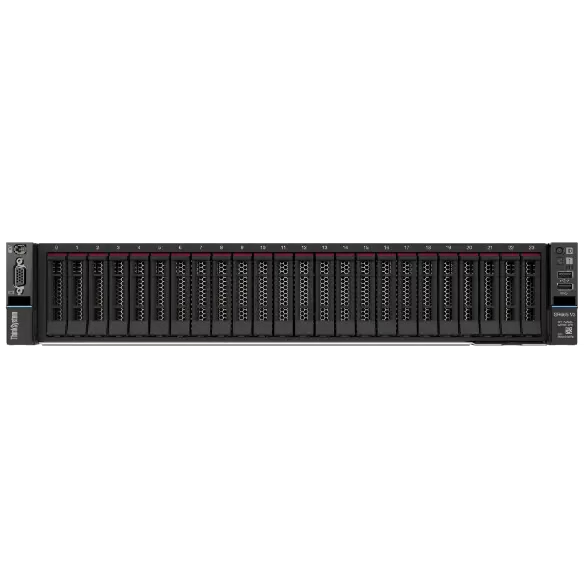

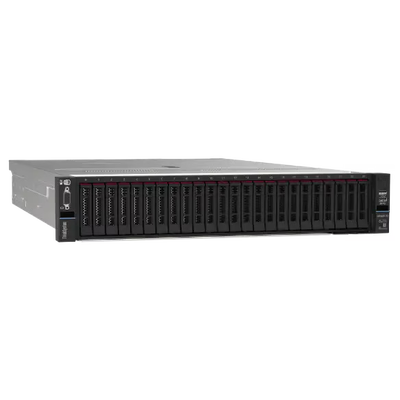

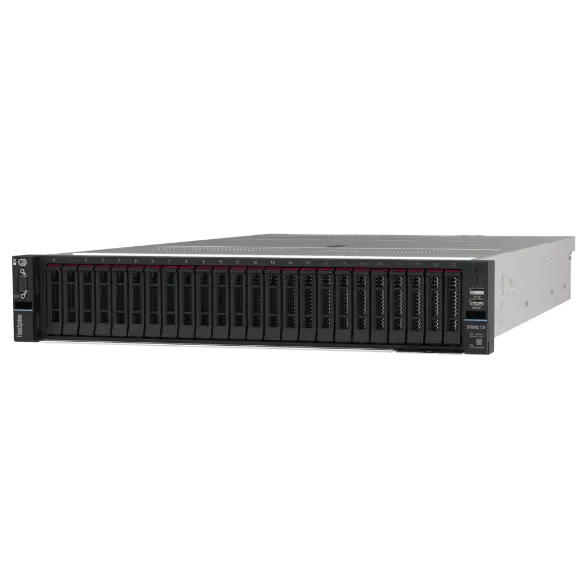

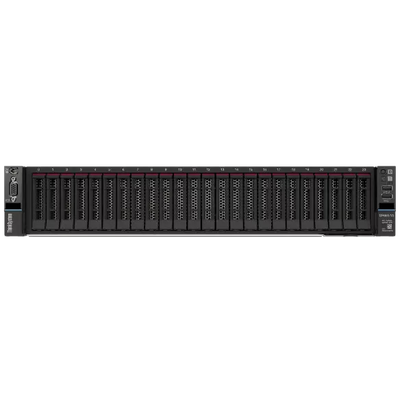

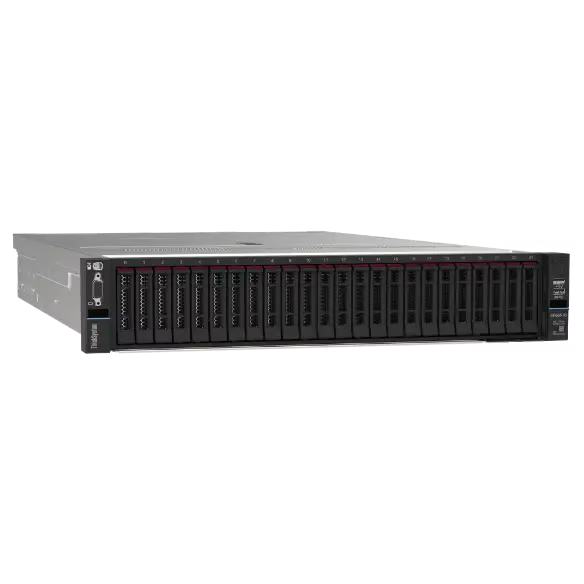

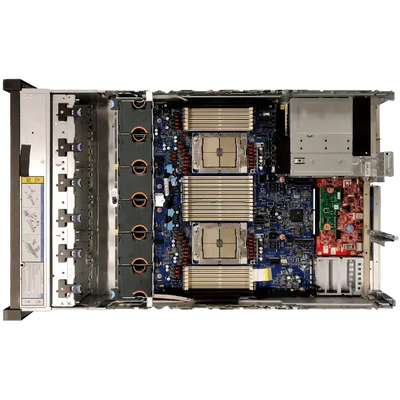

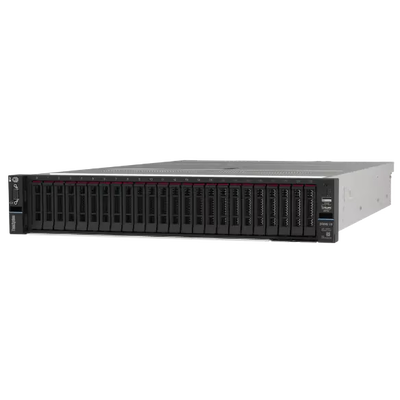

ThinkSystem SR665 utilizes AMD EPYC 2-Socket Rack Servers
|
|
|
Specifications
|
|
|
Product Name(s)
|
ThinkSystem SR665
|
|
Form Factor
|
2U rack server
|
|
Processors
|
Up to 2 AMD EPYC™ 7002 / 7003 Series Processors, up to 64C, 280W
|
|
Memory
|
32x DDR4 memory slots; Maximum 4TB using 128GB 3DS RDIMMs; up to 1DPC at 3200MHz, 2DPC at 3200MHz
|
|
Drive Bays
|
Up to 20x 3.5-inch or 40x 2.5-inch drives; Maximum of 32x NVMe drives with 1:2 connection
|
|
Expansion Slots
|
Up to 8x PCIe 4.0 slots, 1x OCP 3.0 adapter slot
|
|
GPU
|
Up to 8x single-width GPUs or 3x double-width GPUs
|
|
Network Interface
|
OCP 3.0 mezz adapter, PCIe adapters
|
|
Power
|
Dual redundant PSUs (up to 1800W Platinum)
|
|
Ports
|
Front: 1x USB 3.1 G1, 1x USB 2.0, 1x VGA (optional)
|
|

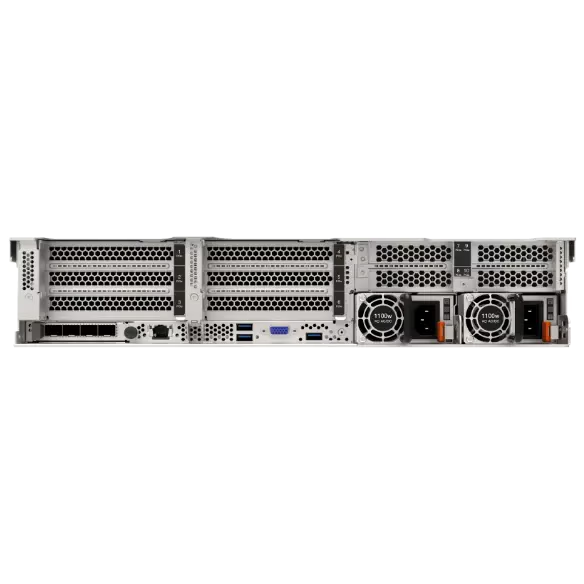

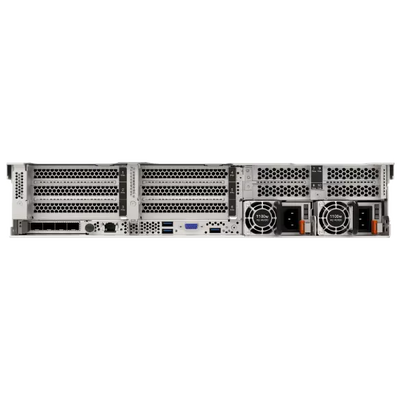

Rear: 3x USB 3.1 G1, 1x Serial port (optional) 1x RJ-45 (management)
|
|
|
System Management
|
Lenovo XClarity Controller
|
|
OS Support
|
Microsoft Windows Server, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, VMware ESXi
|
|
Limited Warranty
|
1- and 3-year customer replaceable unit and onsite services, next business day 9x5; optional service upgrades
|
|
Base CTO models
|
||
|
Machine Type/Model
|
Machine Type/Model
|
Description
|
|
General purpose
|
for HPC and AI
|
|
|
7D2VCTO1WW
|
7D2VCTOLWW
|
ThinkSystem SR665 – 3-year Warranty
|
|
7D2WCTO1WW
|
7D2WCTOLWW
|
ThinkSystem SR665 – 1-year Warranty
|
|
|
|
|
|
Chassis base feature codes
|
|
|
|
Feature code
|
Description
|
|
|
B8LZ
|
ThinkSystem 2U 2.5" Chassis with 8, 16 or 24 Bays
|
|
|
B8M0
|
ThinkSystem 2U 3.5" Chassis with 8 or 12 Bays
|
|
|
|
|
|
|
Motherboard feature codes (CTO orders)
|
|
|
|
Feature code
|
Description
|
|
|
B8L1
|
ThinkSystem SR665 MB
|
|
|
BF6Z
|
ThinkSystem SR665 2U Refresh MB
|
|
|
(required for EPYC 7003 processors and NVIDIA A100 GPU)
|
|
|
|
|
|
|
|
Backplanes for front drive bays
|
||
|
Feature code
|
|
Maximum supported
|
|
Front 3.5-inch drive backplanes
|
||
|
B8LP
|
ThinkSystem 2U 8x3.5" SAS/SATA Backplane
|
1
|
|
B8LT
|
ThinkSystem 2U 12x3.5" SAS/SATA Backplane
|
1
|
|
B8LK
|
ThinkSystem 2U 12x3.5" AnyBay Backplane
|
1
|
|
Front 2.5-inch drive backplanes
|
||
|
B8LU
|
ThinkSystem 2U 8x2.5" SAS/SATA Backplane
|
3
|
|
B8LM
|
ThinkSystem 2U/4U 8x2.5" AnyBay Backplane
|
1
|
|
BCQM
|
ThinkSystem 2U/4U 8x2.5" NVMe Backplane
|
3
|
|
Integrated Diagnostics Panel (for 2.5-inch configurations with 8 or 16 bays only)
|
||
|
BMJA
|
ThinkSystem 2U 16x2.5" Front Operator Panel v2
|
1
|
|
B8MS
|
ThinkSystem 2U 16x2.5" Front Operator Panel
|
1
|
