| Place of Origin: | Beijing, China |
|---|---|
| Brand Name: | Lenovo |
| Model Number: | ThinkSystem DM5100F |
| Minimum Order Quantity: | 2 pieces |
| Packaging Details: | New Original Packing |
| Supply Ability: | 100 Piece/Pieces per Year |
| Port: | Beijing | ||
|---|---|---|---|
| Highlight: | 7D3KCTO1WW Lenovo Rack Server,DM5100F Lenovo Rack Server,All Flash lenovo thinksystem dm5100f |
||
|

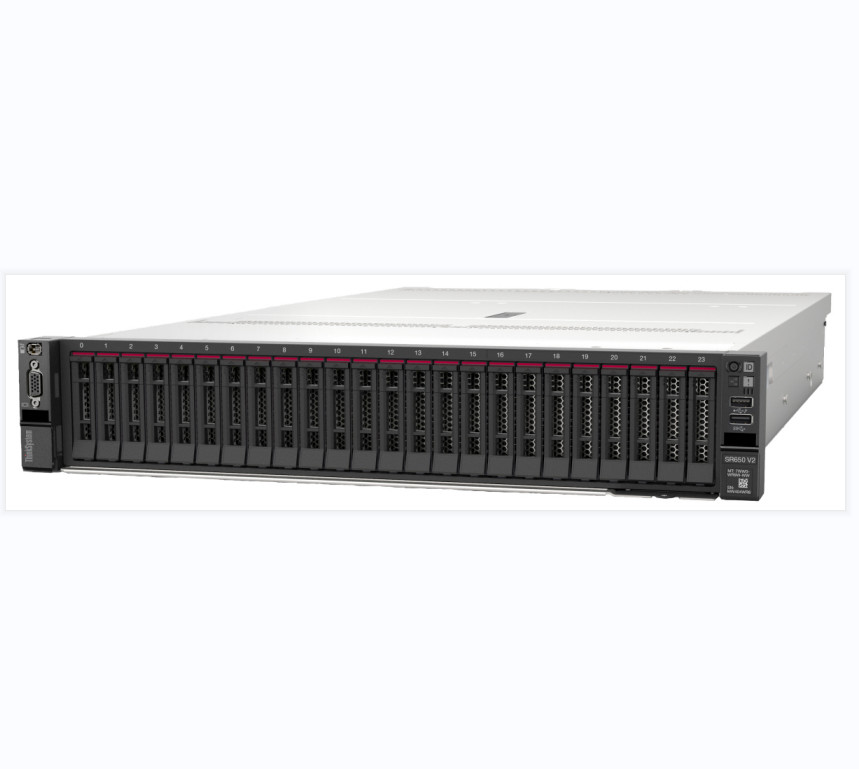

ThinkSystem DM5100F system specifications
|
|
|
Attribute
|
Specification
|
|
Machine types
|
DM5100F controller enclosure: 7D3K
|
|
DM240N expansion enclosure: 7Y62
|
|
|
Form factor
|

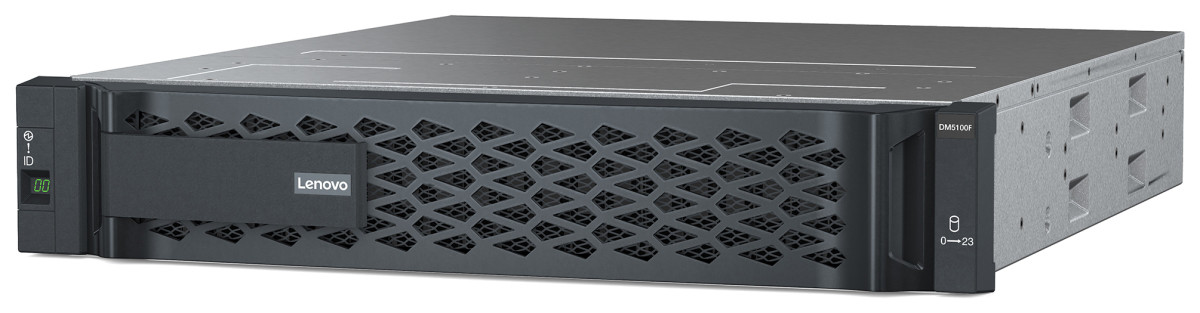

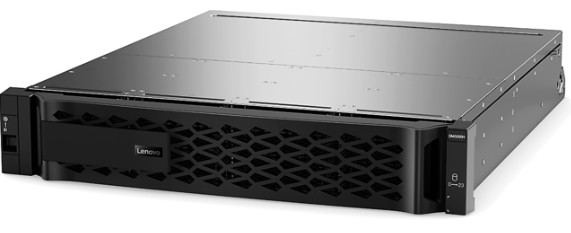

DM5100F: 2U rack mount
|
|
DM240N: 2U rack mount
|
|
|
Controller configuration
|
Dual active-active controller configuration (HA pair). Up to 6 HA pairs can be combined into a single SAN cluster, or up to 12 HA
pairs can be combined into a single NAS cluster. |
|
HA pair/cluster interconnect ports
|
4x 25 GbE SFP28 ports (DAC cables or SW fiber optics, LC). 2 ports per controller
|
|
RAID levels
|
RAID-4, RAID-DP, RAID-TEC
|
|
Controller memory
|
128 GB RAM per system (64 GB per controller). 16 GB battery-backed NVRAM per system (8 GB per controller) mirrored between the
controllers. |
|
Drive bays
|
Up to 48 SFF hot-swap NVMe drive bays (1x 24-drive DM5100F controller enclosure + 1x 24-drive DM240N expansion enclosure)
|
|
Drive technology
|
NVMe SSDs
|
|
Drive expansion connectivity
|
Each DM5100F controller supports one 2-port 100GbE HIC and must be installed in port1 only for connectivity to a single DM240N
expansion enclosure. |
|
Drives
|
1.92 TB, 3.84 TB, 7.68 TB, and 15.36 TB NVMe SSDs (1 DWD).
|
|
Storage capacity
|
Up to 737 TB by using 48x 15.36 TB drives
|
|
Storage protocols
|
NAS (File access): NFS, CIFS/SMB.
|
|
SAN (Block access): iSCSI, FC, NVMe/FC
|
|
|
Host connectivity
|
Base ports (per controller enclosure):
|
|
2x 10GBASE-T ports
|
|
|
Optional ports via HIC adapters (2 per controller):
|
|
|
25GbE HIC, with 4x 10/25 GbE SFP28 ports (DAC cables or SW fiber optic cables, LC)
|
|
|
100GbE HIC, with 2x 100 GbE QSFP28 ports (DAC cables or SW fiber optic cables, MPO)
|
|
|
Fibre Channel HIC, with 4x 8/16/32 Gb FC SFP+ host ports, 32Gb transceivers included (SW fiber optic cables, LC)
|
|
|
The following host connectivity HIC combinations are supported in each controller:
|
|
|
25GbE + 25GbE
|
|
|
32Gb FC + 32Gb FC
|
|
|
25GbE + 32Gb FC
|
|
|
The following combinations of storage expansion HIC in port 1 and host HIC in port 2 are supported in each controller:
|
|
|
100GbE (port 1) + 25GbE (port 2)
|
|
|
100GbE (port 1) + 32Gb FC (port 2)
|
|
|
Note: The DM5100F is not supported direct-attach to a host. Host connectivity is only supported via an Ethernet or Fibre Channel
switch. |
|
|
Category 1 Host operating systems*
|
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
|
|
Category 2 Host operating systems**
|
Oracle Linux, Oracle VM, Citrix Hypervisor, CentOS, Ubuntu, Solaris. For version details, see the latest Category 2
Interoperability Matrix, available as a download from Lenovo Storage Interoperation Center (LSIC). |
|
Performance†
|
Up to 440,000 random read IOPS (8 KB blocks).
|
|
Configuration maximums‡
|
Maximum raw storage capacity: 737 TB
|
|
Maximum aggregate size: 400 TB
|
|
|
Maximum number of FlexVol volumes per controller: 1000
|
|
|
Maximum FlexVol volume size: 100 TB
|
|
|
Maximum number of LUNs per controller: 8192
|
|
|
Maximum number of LUNs per FlexVol volume: 512
|
|
|
Maximum LUN size: 16 TB
|
|
|
Maximum number of drives in a RAID group (data + parity drives):
|
|
|
RAID 4: 14 (13 + 1 NVMe SSDs)
|
|
|
RAID-DP: 28 (26 + 2 NVMe SSDs)
|
|
|
RAID-TEC: 29 (26 + 3 NVMe SSDs)
|
|
|
Maximum number of initiators per controller: 2048
|
|
|
Maximum number of snapshots per FlexVol volume: 1023
|
|
|
Cooling
|
Redundant cooling with the fans that are built into power supplies (DM5100F and DM240N enclosures).
|
|
Power supply
|

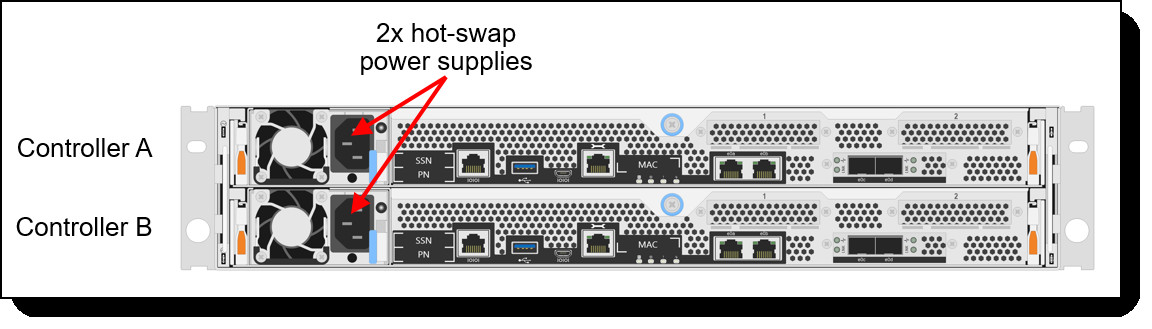

DM5100F: Two redundant hot-swap 1600 W Platinum AC power supplies. 200-240V supply.
|
|
DM240N: Two redundant hot-swap 1600 W Platinum AC power supplies. 200-240V supply.
|
|
|
Hot-swap parts
|
Controllers, I/O modules, drives, power supplies, and transceivers and DAC cables.
|
|

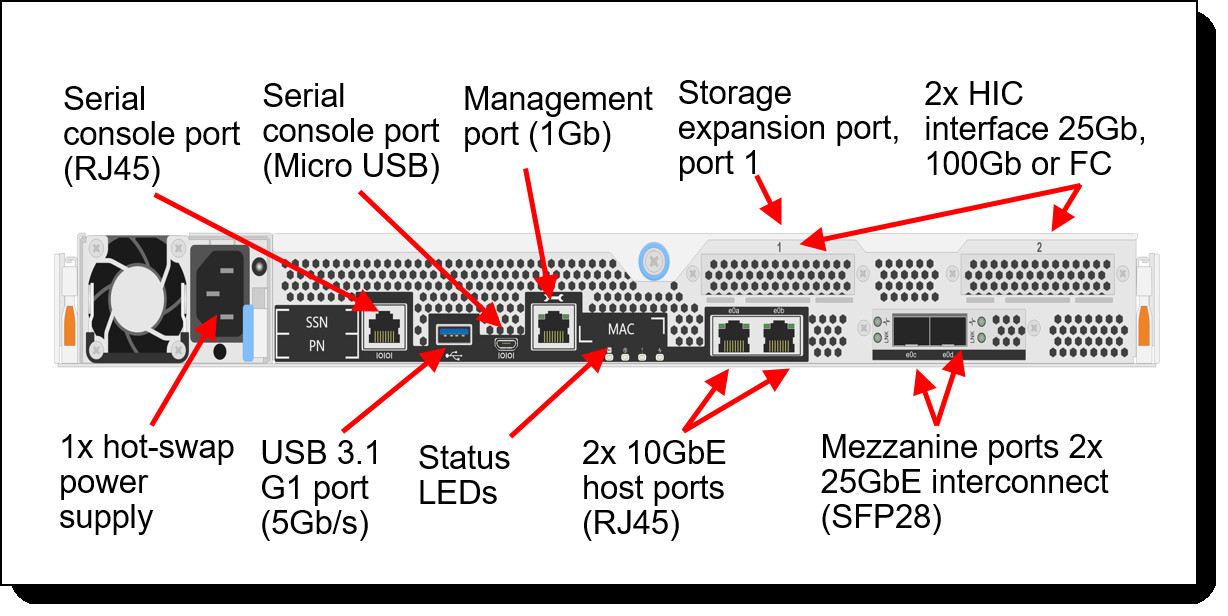

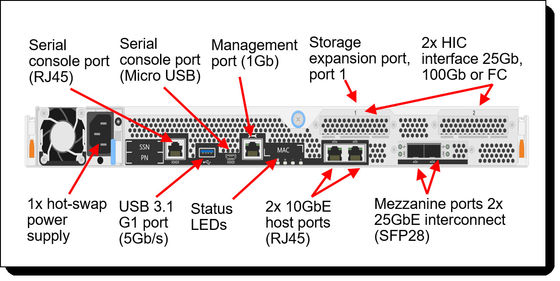

Management ports
|
1x 1 GbE port (UTP, RJ-45) per controller for out-of-band management.
|
|
2x Serial console ports (RJ-45 and Micro-USB) for system configuration.
|
|
|
Management interfaces
|
ThinkSystem Storage Manager web-based GUI; SSH CLI; Serial console CLI; SNMP, email, and syslog alerts; optional Lenovo XClarity.
|
|
Security features
|
Secure Socket Layer (SSL), Secure Shell (SSH), user level security, role-based access control (RBAC), LDAP authentication.
|
|
Warranty and support
|
Three-, four-, or five-year customer-replaceable unit and onsite limited warranty with selectable service levels: 9x5 service
coverage next business day (NBD) onsite response (Foundation) or 24x7 service coverage with 4-hour onsite response (Essential). Premier Support is also available. Software support is included in the Foundation or Essential Service for the duration of the warranty period. |
|
Dimensions
|
DM5100F enclosure:
|
|
Height: 87 mm (3.4 in.)
|
|
|
Width with flange: 483 mm (19 in.)
|
|
|
Width without flange: 447 mm (17.6 in.)
|
|
|
Depth: 543 mm (21.4 in.)
|
|
|
DM240N expansion enclosure:
|
|
|
Height: 87 mm (3.4 in.)
|
|
|
Width with flange: 483 mm (19 in.)
|
|
|
Width without flange: 447 mm (17.6 in.)
|
|
|
Depth: 543 mm (21.4 in.)
|
|
|
Weight
|
DM5100F enclosure: (fully configured): 24.6 kg (54.3 lb)
|
|
DM240N expansion enclosure (fully configured): 30.2 kg (66.6 lb)
|
|
