| Facteur de forme: | serveur du support 4U | Processeur: | Deux ou quatre processeurs Intel® Xeon® Scalable de 4e génération, jusqu'à 350 W |
|---|---|---|---|
| Appui de GPU: | Jusqu'à 2 GPU double largeur de 350 W ou 4 GPU simple largeur de 75 W | Mémoire: | Jusqu'à 16 To de mémoire TruDDR5 dans 64 emplacements ; Vitesses de mémoire jusqu'à 4800 MHz |
| Baies d'entraînement: | Jusqu'à 24 disques 2,5" ; prend en charge jusqu'à 24 disques NVMe à connexion directe ; | Emplacements d'extension: | Jusqu'à 12x (8x Gen5 + 4x Gen4) ou 7x (6x Gen5 + 1x Gen4) ou 12x Gen4 ou 9x Gen4 emplacements d& |
| Interface réseau: | 2 emplacements OCP 3.0 dédiés prenant en charge 1GbE, 10GbE, 25GbE ou 100GbE | Pouvoir: | 2x alimentations remplaçables à chaud Platinum ou Titanium ; Redondance N+N prise en charge |
| La gestion du système: | Contrôleur Lenovo XClarity; prise en charge du poisson rouge | ||

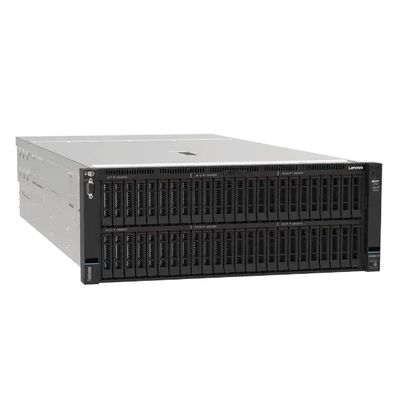

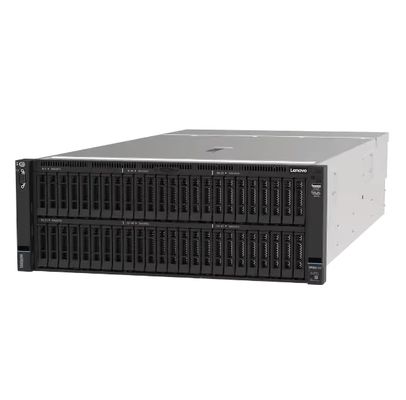

| Mettre en évidence: | 4th Gen Intel Xeon Scalable Lenovo ThinkSystem SR860 V3,16TB TruDDR5 Memory Lenovo Rack Server,24x NVMe Drives 4U Rack Server |
||
| Form Factor | 4U |
|---|---|
| Processor | Two or four 4th Gen Intel® Xeon® Scalable processors, up to 350W Mesh topology with 3x UPI links; With Up to 4x QAT, DLB, IAA and DSA Accelerators |
| GPU Support | Up to 4x double-width 350W GPUs or 8x single-width 75W GPUs |
| Memory | Up to 16TB of TruDDR5 memory in 64x slots; Memory speeds up to 4800MHz |
| Drive Bays | Up to 48x 2.5" drives; Supports up to 24x direct connection NVMe drives; 2x 7mm or 2x M.2 drives for boot |
| Expansion | Up to 16x (12x Gen5 + 4x Gen4) or up to 18x Gen4 or 4x Gen4 PCIe expansion slots Front: VGA, 1x USB 3.1, 1x USB 2.0 Rear: 2x USB 3.1, Serial port, VGA port, 1GbE dedicated management port |
| Network Interface | 2 Dedicated OCP 3.0 slot supporting 1GbE, 10GbE, 25GbE or 100GbE |
| Power | Up to 4x Platinum or Titanium hot-swap power supplies; N+N redundancy supported |
| High Availability | PFA; hot-swap/redundant drives and power supplies; redundant fans; internal light path diagnostic LEDs; front-access diagnostics via dedicated USB port; optional External Diagnostics Panel Handset with LCD display |
| HBA/RAID Support | Support for ThinkSystem PCIe RAID/HBA cards |
| System Management | Lenovo XClarity Controller; Redfish support |
