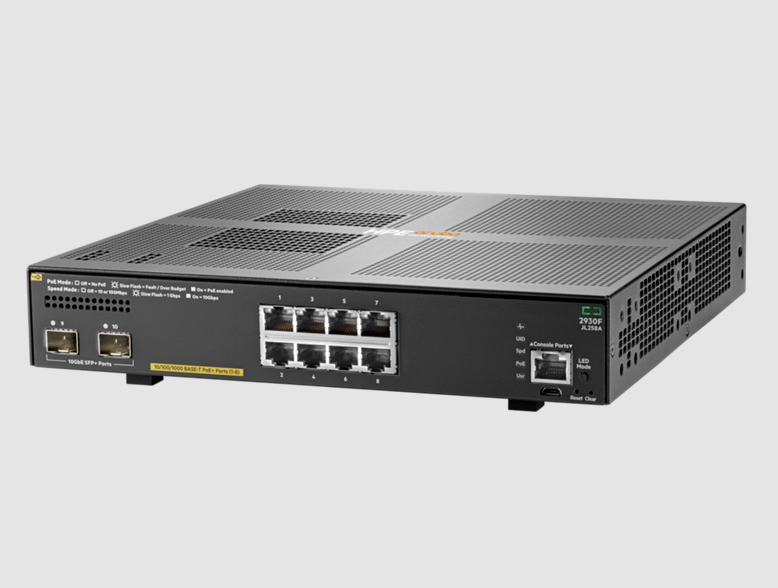

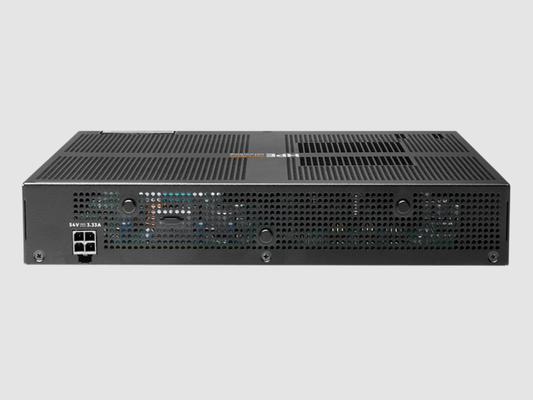

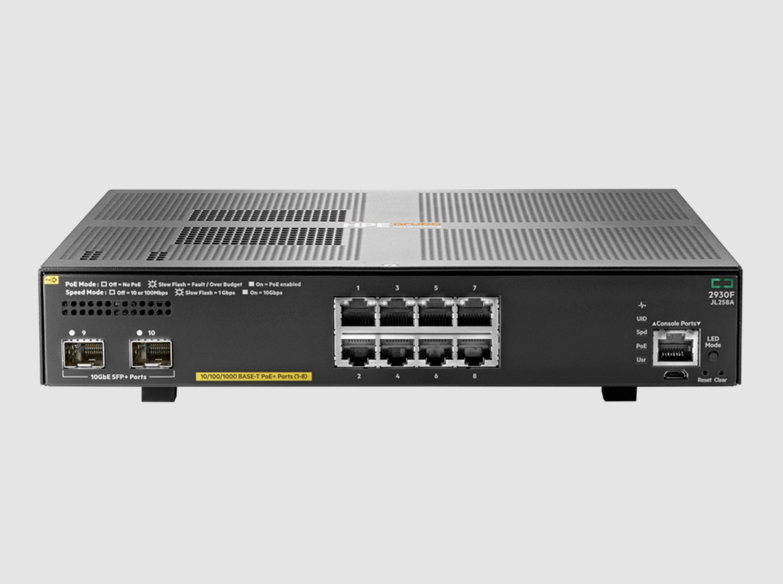

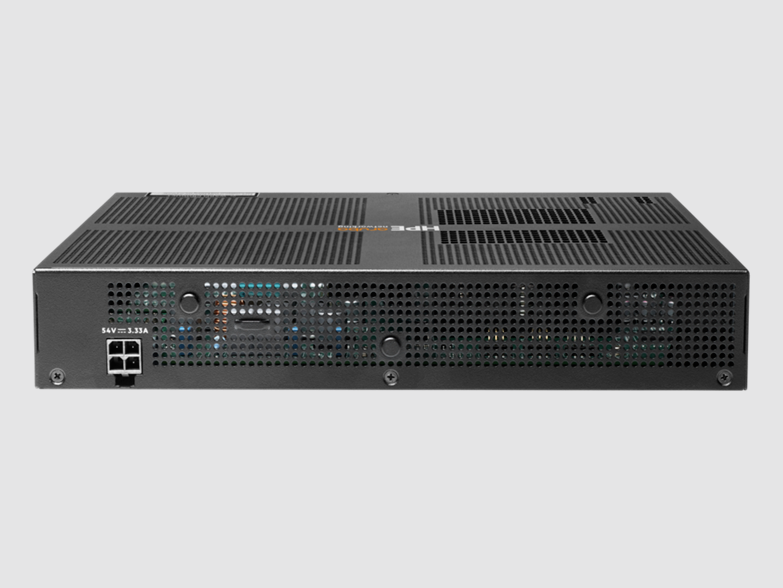

Aruba JL258A Switch with 176 Gbps Switching Capacity 125W PoE+ and 41.7 Mpps Throughput

Aruba JL258A Switch with 176 Gbps Switching Capacity 125W PoE+ and 41.7 Mpps Throughput
Aruba JL258A Switch with 176 Gbps Switching Capacity 125W PoE+ and 41.7 Mpps Throughput Aruba JL258A Switch with 176 Gbps Switching Capacity 125W PoE+ and 41.7 Mpps Throughput Aruba JL258A Switch with 176 Gbps Switching Capacity 125W PoE+ and 41.7 Mpps Throughput

Large Image :  Aruba JL258A Switch with 176 Gbps Switching Capacity 125W PoE+ and 41.7 Mpps Throughput

Product Details:
Place of Origin: China
Brand Name: HPE
Model Number: JL258A
Payment & Shipping Terms:
Minimum Order Quantity: 1/set
Delivery Time: 2-3 work days
Payment Terms: T/T
Supply Ability: 50pcs per week
Contact Now

Aruba JL258A Switch with 176 Gbps Switching Capacity 125W PoE+ and 41.7 Mpps Throughput

Description
Power Consumption: 155W (maximum) Switching Capacity: 176 Gbps
Throughput: Up To 41.7 Mpps Power Supplies: Fixed Power Supply
Stacking Capabilities: 8-members PoE Capability: 125W PoE+
Dimensions: 4.39 X 25.4 X 25.4 Cm (1.73 X 10 X 10 In)
Highlight:

Aruba JL258A Switch 176 Gbps capacity

,

HPE Storage Server with PoE+

,

Aruba JL258A Switch 41.7 Mpps throughput

Power consumption 155W (maximum)
Heat dissipation 58.6 BTU/hr (61.8 kJ/hr)
Input voltage 90 - 264 VAC, rated
Ports

8x RJ-45 autosensing 10/100/1000 PoE+ ports

2x SFP+ 1/10GbE ports

PHY-less
Latency

1000 Mb Latency: < 3.8 µs

10 Gbps Latency: < 1.6 µs
Switching capacity 56 Gbps
Throughput Up to 41.7 Mpps
Memory and processor

Dual Core Arm® Cortex® A9 @ 1016 MHz

1 GB DDR3 SDRAM

Packet buffer size: 12.38 MB 4.5 MB Ingress/7.875 MB Egress

4 GB eMMC
PoE capability 125W PoE+
Dimensions 4.39 x 25.4 x 25.4 cm (1.73 x 10 x 10 in)
Latency

1 Gbps: 2.28 µSec

10 Gbps: 1.46 µSec
Switching capacity 176 Gbps
Stacking capabilities 8-members
Throughput Up to 130.9 Mpps
Description

48x ports 10/100/1000BASE-T Ports

4x 1G SFP ports

Supports PoE Standards IEEE

802.3af, 802.3at

1x USB-C Console Port

1x USB Type-A Host port
Power supplies Fixed power supply
Fans Fixed fans
Dimension

The HPE Aruba Networking 2930F Switch Series is designed for customers creating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach.

Aruba JL258A Switch with 176 Gbps Switching Capacity 125W PoE+ and 41.7 Mpps Throughput
