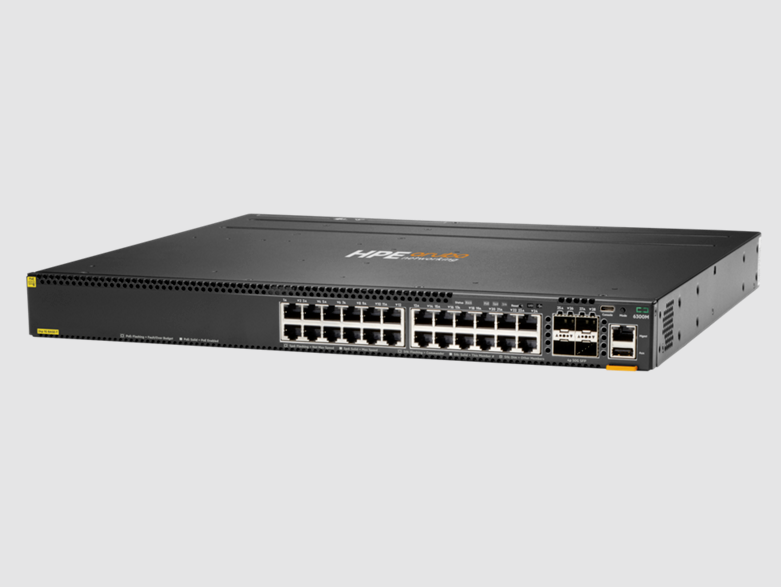

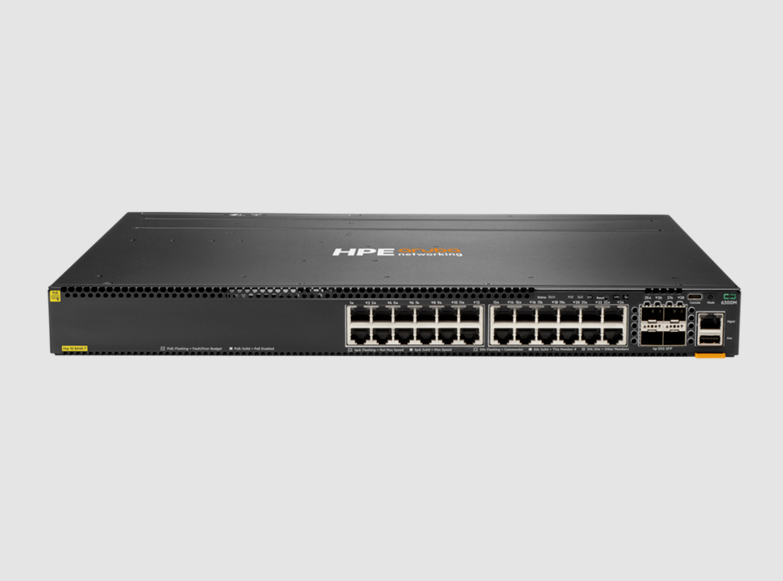

JL662A Aruba Networking CX 6300 Switch with 448 Gbps Switching Capacity 334 Mpps Throughput and 720W PoE Capability

Power consumption

With JL086A PSU:

Idle: 60W

100% Traffic Rate: 76W

With JL087A PSU:

Idle: 59W

100% Traffic Rate: 74W

With JL670A PSU:

Idle: 62W

100% Traffic Rate: 81W

Input voltage

JL670A PSU: 110V–120V/208V–240V

JL086A PSU: 100V–240V

JL087A PSU: 110V–240V

Ports

24 x 10/100/1000 BaseT PoE+ ports supporting up to 30W per port

4 x 1G/10G/25G/50G [4] SFP ports

Supports PoE standards IEEE 802.3af, 802.3at

1 x USB-C console port

1 x USB Type-A host port

1 x OOBM port

Latency

1 Gbps: 2.28 μs

10 Gbps: 1.46 μs

25 Gbps: 1.90 μs

50 Gbps: 3.49 μs

Switching capacity

448 Gbps

Stacking capabilities

Up to 10-members per stack.

Throughput

334 Mpps

Memory and processor

CPU: Dual-core Arm® Cortex-A9 @ 1.8GHz

Memory: 8 GB DDR4, 32 GB eMMC

Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration

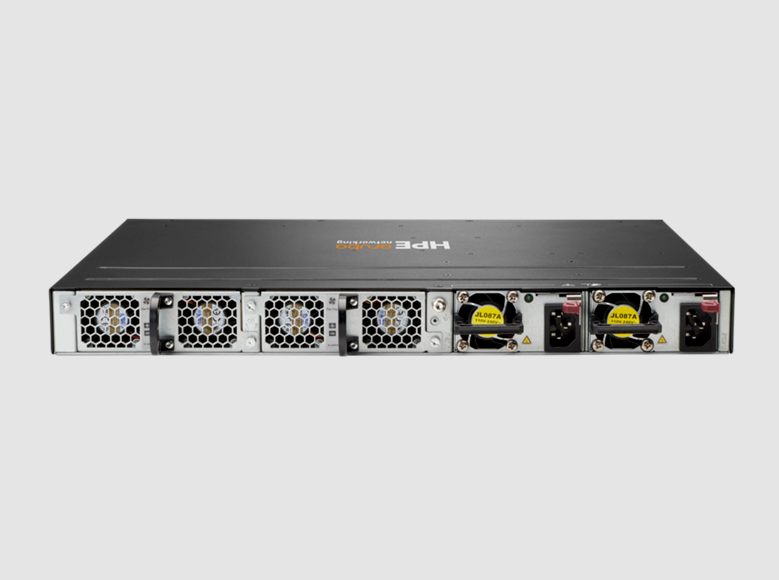

Power supply

2 field‑replaceable, hot‑swappable power supply slots 1 minimum power supply required (ordered separately).

Supported PSUs JL086A, JL087A and JL670A.

PoE capability

Maximum PoE power: 720W

Dimensions

4.4 x 44.2 x 38.5 cm (1.73 x 17.4 x 15.2 in)
