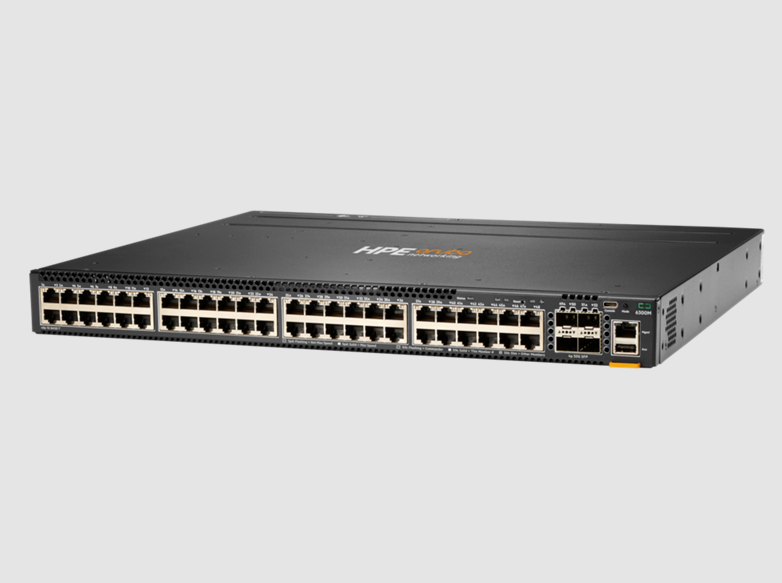

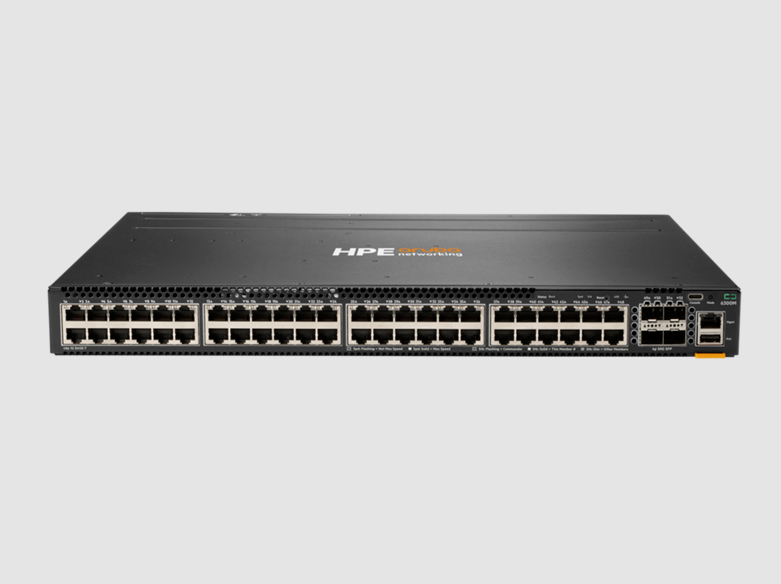

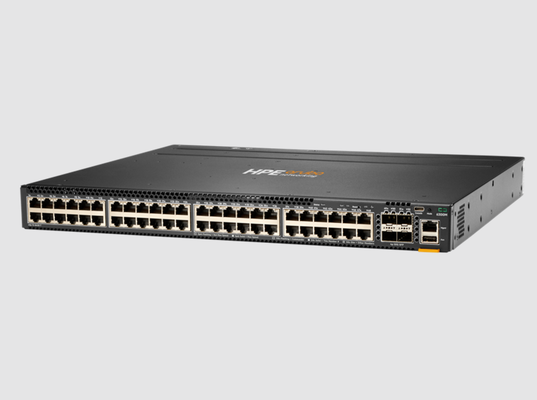

JL663A Aruba Networking CX 6300 Switch Series with 496 Gbps Switching Capacity 369 Mpps Throughput and Hot-swappable Power Supply

Idle: 56W

100% Traffic Rate: 75W

JL085A PSU: 100V–240V

48 x 10/100/1000 BaseT ports

4 x 1G/10G/25G/50G [4] SFP ports

1 x USB-C console port

1 x USB Type-A host port

1 x OOBM port

1 Gbps: 2.28 μs

10 Gbps: 1.46 μs

25 Gbps: 1.90 μs

50 Gbps: 3.49 μs

496 Gbps

Up to 10-members per stack.

369 Mpps

CPU: Dual-core Arm® Cortex-A9 @ 1.8GHz

Memory: 8 GB DDR4, 32 GB eMMC

Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration

2 field‑replaceable, hot‑swappable power supply slots 1 minimum power supply required (ordered separately).

Supports JL085A PSU.

32°F to 113°F (0°C to 45°C) up to 5000 ft. Derate ‑1°C for every 1000 ft from 5000 ft to 10000 ft. Can support excursion to 131°F (55°C) for short periods of time

4.4 x 44.2 x 38.5 cm (1.73 x 17.4 x 15.2 in)
