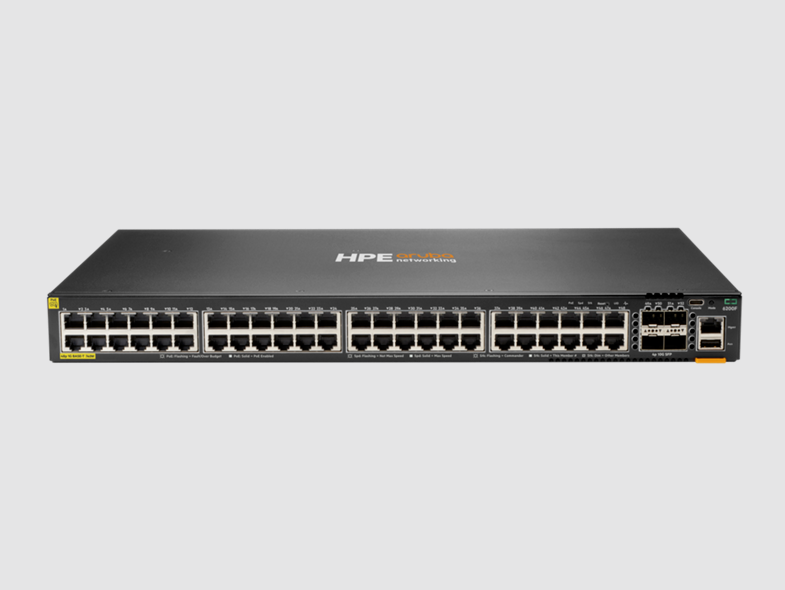

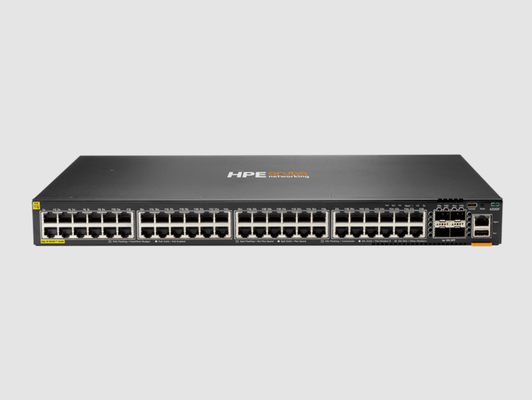

Aruba JL728A Network Switch with 48 PoE Ports 176 Gbps Switching Capacity and 740W Class 4 PoE Power

Power consumption

76W at 230 VAC

Input voltage

100V–120V/200V–240V

Ports

48 x 10/100/1000BASE-T Class 4 PoE ports

4 x 1/10G SFP ports

Supports PoE standards IEEE 802.3af, 802.3at

1 x USB-C console port

1 x USB Type-A host port

1 x OOBM

1 x Bluetooth adapter to be used with CX Mobile app

Latency

1 Gbps: 2.28 μSec

10 Gbps: 1.46 μSec

Switching capacity

176 Gbps

Stacking capabilities

8-members

Throughput

Up to 130.9 Mpps

Memory and processor

CPU: Quad-core Arm® Cortex-A72 at 1.8 GHz

Memory: 8 GB DDR4

Flash: 16 GB eMMC

Power supply

Fixed power supply (950W)

Up to 740W of Class 4 PoE Power

Dimensions

4.39 x 44.2 cm x 32.7 cm (1.73 x 17.4 x 12.9 in)
