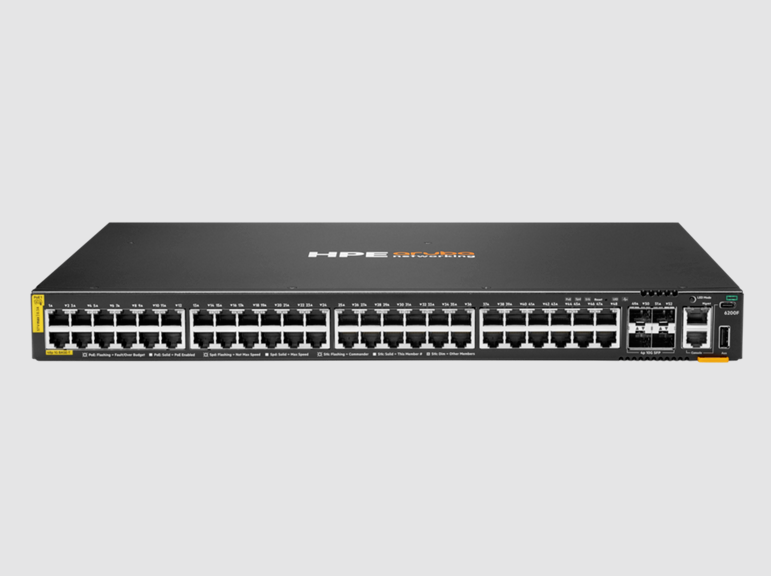

HPE Aruba Networking CX 6200 Switch with 130.9 Mpps Throughput 740W Class 4 PoE Power and 176 Gbps Switching Capacity

Basic Information

Place of Origin:	China
Brand Name:	HPE
Model Number:	JL728B

Minimum Order Quantity:	1/set
Delivery Time:	2-3 work days
Payment Terms:	T/T
Supply Ability:	50pcs per week

Get Best Price Contact Now

Detail Information

Power Consumption:	76W At 230 VAC	Input Voltage:	100V–120V/200V–240V
Latency:	1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec	Switching Capacity:	8-members
Throughput:	Up To 130.9 Mpps	Power Supply:	Fixed Power Supply Up To 740W Of Class 4 PoE Power
Dimensions:	4.39 X 44.2 Cm X 32.7 Cm (1.73 X 17.4 X 12.9 In)
Highlight:	HPE Aruba CX 6200 Switch with PoE , HPE CX 6200 Switch high throughput , HPE Aruba Switch 176 Gbps capacity

Product Description

The HPE Aruba Networking CX 6200 Switch Series is a next-generation family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. The CX 6200 series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high-speed uplinks.

Power consumption	76W at 230 VAC
Input voltage	100V–120V/200V–240V
Ports	48 x 10/100/1000BASE-T Class 4 PoE ports, supporting up to 30W per port 4 x 100M/1/10G SFP+ ports Supports PoE standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM 1 x RJ-45 console port
Latency	1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec
Switching capacity	176 Gbps
Stacking capabilities	8-members
Throughput	Up to 130.9 Mpps
Memory and processor	CPU: Quad-core Arm® Cortex-A72 at 1.8 GHz Memory: 8 GB DDR4 Flash: 16 GB eMMC
Power supply	Fixed power supply Up to 740W of Class 4 PoE Power
Dimensions	4.39 x 44.2 cm x 32.7 cm (1.73 x 17.4 x 12.9 in)
