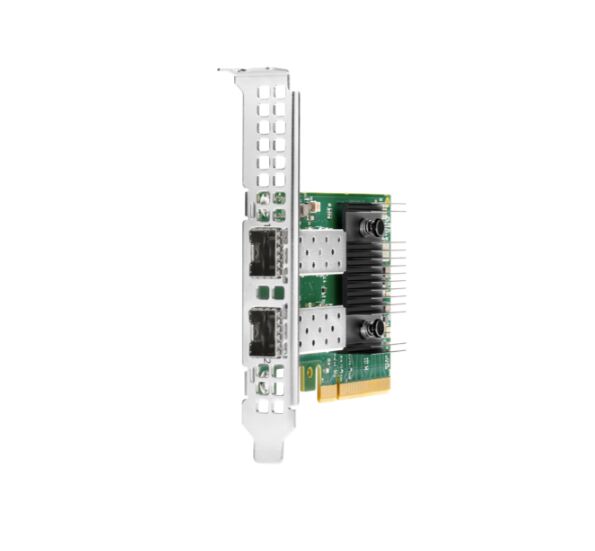

Name: MCX631102AS-ADAT Mellanox MCX631102AS‑ADAT Ethernet 10/25Gb 2‑port SFP28 Adapter
Brand: Beijing Core-Net Techonology Co., Limited
SKU: MCX631102AS-ADAT
Price: 2850.00 USD
Availability: InStock

MCX631102AS-ADAT Mellanox MCX631102AS‑ADAT Ethernet 10/25Gb 2‑port SFP28 Adapter

Large Image : MCX631102AS-ADAT Mellanox MCX631102AS‑ADAT Ethernet 10/25Gb 2‑port SFP28 Adapter

Product Details:

Brand Name:	Mellanox
Model Number:	MCX631102AS-ADAT

Payment & Shipping Terms:

Price:	N/A
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union
Supply Ability:	1000pcs/months

Contact Now

MCX631102AS-ADAT Mellanox MCX631102AS‑ADAT Ethernet 10/25Gb 2‑port SFP28 Adapter

Description

Highlight:

Mellanox MCX631102AS-ADAT Ethernet adapter

10/25Gb SFP28 network adapter

2-port Mellanox Ethernet adapter

Data rate10/25 Gb

Number of ports2

Bus typePCIe Gen4x8

Form factorStand up

Physical	Size: 3.79in. x 2.71in (96.30mm x 68.90mm)
	Connector: Dual SFP28 Ethernet (copper and optical)
Protocol Support	Data Rate	Ethernet	1/10/25 Gb/s
	Ethernet: 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR
	PCI Express Gen 3.0/4.0: SERDES @ 16.0GT/s, 8 lanes (2.0 and 1.1 compatible)
Power and Airflow ^(a)	Voltage: 12V
	Power	Cable	PCIe Gen 3.0	PCIe Gen 4.0
	Typical Power^(b)	Passive Cables	10.73W	11.53W
	Maximum Power	Passive Cables	12.14W	12.94W
	Voltage : 3.3Aux Maximum current: 100mA
	Airflow Requirements @ 55C^(c)	Cable Type	Hot Aisle - Heatsink to Port
		Passive Cable	300LFM
		Active 0.8W Cable	350LFM
		Active 1.5W Cable^(d)	400LFM
Environmental	Temperature	Operational	0°C to 55°C
		Non-operational	-40°C to 70°C^(e)
	Humidity	Operational	10% to 85% relative humidity
		Non-operational	10% to 90% relative humidity
	Altitude (Operational)	3050m
Regulatory	Safety	CB / cTUVus / CE
	EMC	CE / FCC / VCCI / ICES / RCM
	RoHS	RoHS compliant
