NVIDIA Mellanox MCX75310AAC-NEAT Ethernet NIC with 400Gb/s Ethernet PCIe Gen 5.0 and Secure Boot Enabled

Basic Information

Place of Origin:	China
Brand Name:	NVIDIA Mellanox
Model Number:	MCX75310AAC-NEAT

Minimum Order Quantity:	1/set
Delivery Time:	2-3 work days
Payment Terms:	T/T
Supply Ability:	50pcs per week

Get Best Price Contact Now

Detail Information

Adapter Card Size:	Pcie Half Height, Half Length 2.71 In. X 6.6 In. (68.90mm X 167.65 Mm)	Interfaces:	Pci Express Gen 4.0/5.0: Serdes 16/32gt/s, X16 Lanes (gen 3.0 Compatible)
Networking Port :	Single Osfp Infiniband And Ethernet	Capabilities:	Secure Boot Enabled, Crypto Enabled
Typical Power With Passive Cables In Pcie Gen 5.0 X16:	25.9w	Temperature:	Operational: 0°c To 55°c Non-operational: -40°c To 70°c
Altitude (operational):	3050m
Highlight:	Up to 4 GPUs Supermicro GPU Server , 2600W Redundant Power 2U Rackmount Server , AMD EPYC 7002/7003 Processors AS-2114GT-DPNR

Product Description

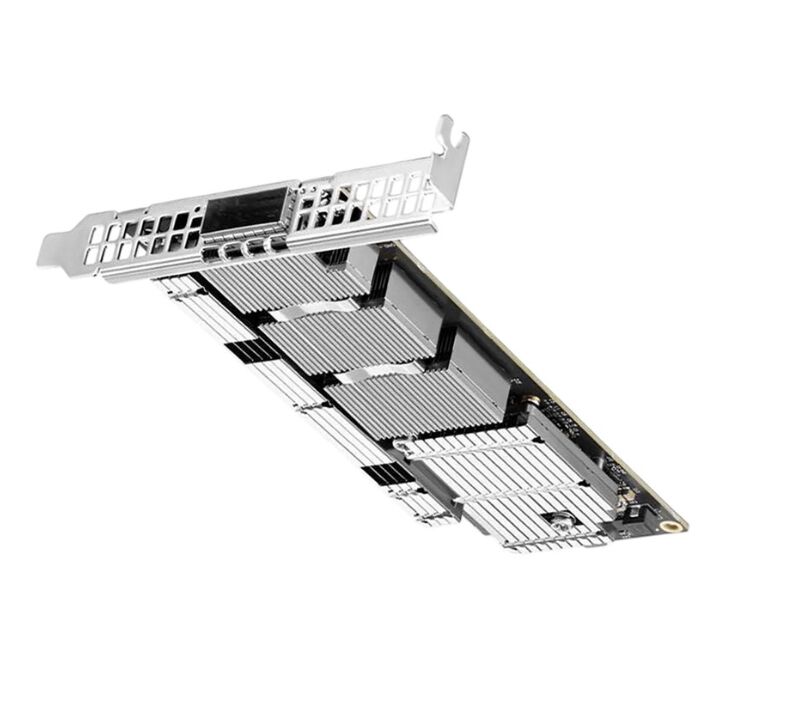

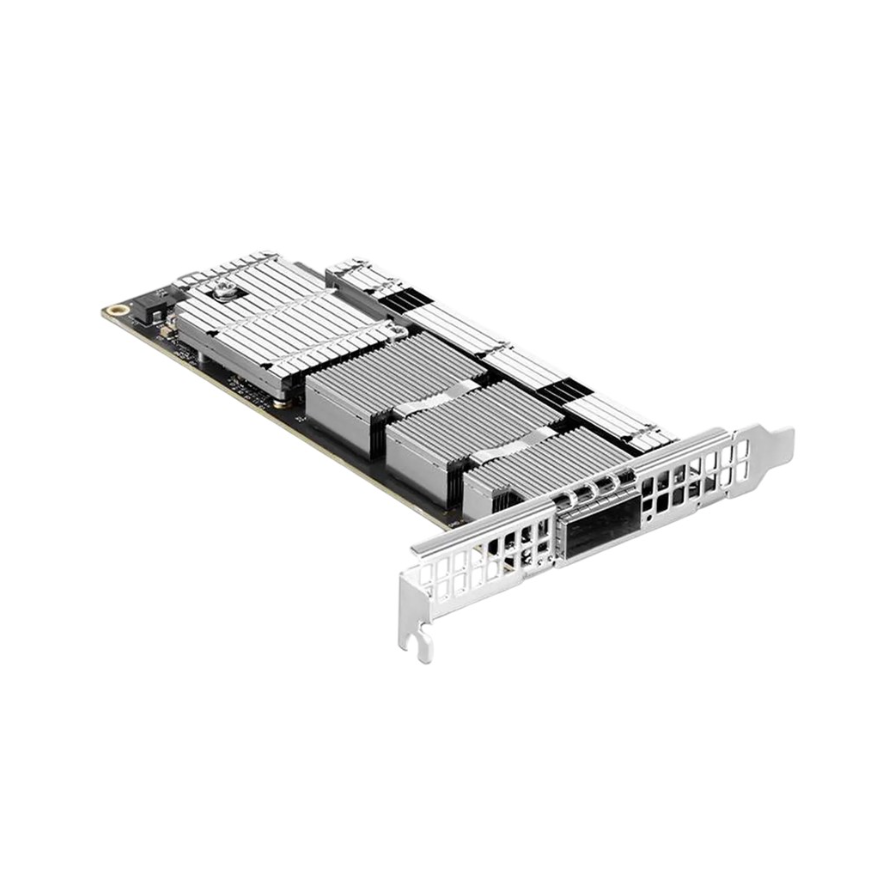

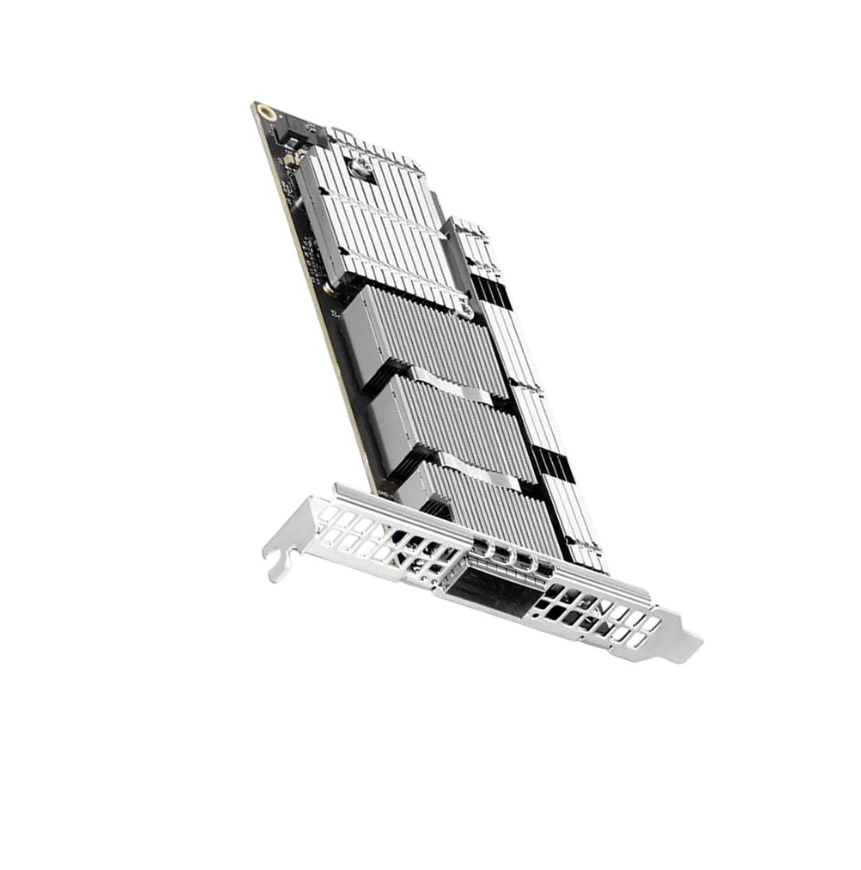

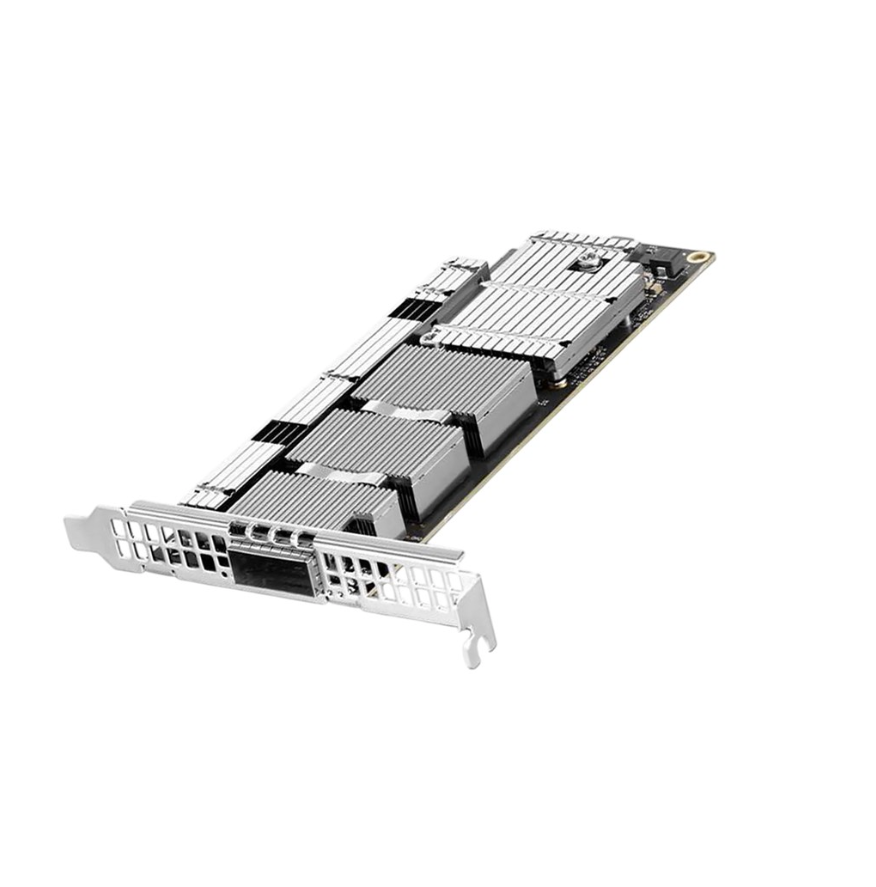

NVIDIA Mellanox MCX75310AAC-NEAT

ConnectX Ethernet NICs offer best-in-class network performance, serving low-latency, high-throughput applications with one, two, or four ports at 10, 25, 40, 50, 100, 200, and up to 400 gigabits per second (Gb/s) Ethernet speeds.

Product Specifications

Adapter Card Size	PCIe Half Height, Half Length 2.71 in. x 6.6 in. (68.90mm x 167.65 mm)
Interfaces	PCI Express Gen 4.0/5.0: SerDes 16/32GT/s, x16 lanes (Gen 3.0 compatible)
Networking Port	Single OSFP Infiniband and Ethernet
Data Rate	Infiniband (default mode): NDR/NDR200/HDR/HDR100/EDR/FDR/SDR Ethernet: 400/200/100/50/40/10/1 Gb/s Ethernet
Protocol Support	Infiniband: IBTA v1.5a Auto-negotiation: NDR (4 lanes x 100Gb/s per lane) port, NDR200 (2 lanes x 100Gb/s per lane) port, HDR (50Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane), EDR (25Gb/s per lane) port, FDR (14.0625Gb/s per lane), 1x/2x/4x SDR (2.5Gb/s per lane) Ethernet: Comprehensive protocol support including 400GAUI-4 C2M, 400GBASE-CR4, 200GAUI-4 C2M, 200GBASE-CR4, 100GAUI-2 C2M, 100GBASE-CR4, 100GBASE-CR2, 100GBASE-CR1, 50GAUI-2 C2M, 50GAUI-1 C2M, 50GBASE-CR, 50GBASE-R2, 40GBASE-CR4, 40GBASE-R2, 25GBASE-R, 10GBASE-R, 10GBASE-CX4, 1000BASE-CX, CAUI-4 C2M, 25GAUI C2M, XLAUI C2M, XLPPI, SFI
Capabilities	Secure Boot Enabled, Crypto Enabled
Electrical and Thermal Specifications	Voltage: 12V, 3.3VAUX \| Maximum Current: 100mA
Typical Power with Passive Cables in PCIe Gen 5.0 x16	25.9W
Temperature	Operational: 0°C to 55°C \| Non-operational: -40°C to 70°C
Humidity	Operational: 10% to 85% Relative Humidity \| Non-operational: 10% to 90% Relative Humidity
Altitude (Operational)	3050m
