Detail Information

Form Factor:	2U Rack Server	Processor:	Two Or Four 4th Gen Intel® Xeon® Scalable Processors, Up To 350W
GPU Support:	Up To 2x Double-width 350W GPUs Or 4x Single-width 75W GPUs	Memory:	Up To 16TB Of TruDDR5 Memory In 64x Slots; Memory Speeds Up To 4800MHz
Drive Bays:	Up To 24x 2.5" Drives; Supports Up To 24x Direct Connection NVMe Drives; 2x 7mm Or 2x M.2 Drives For Boot	Expansion Slots:	Up To 12x (8x Gen5 + 4x Gen4) Or 7x (6x Gen5 + 1x Gen4) Or 12x Gen4 Or 9x Gen4 Expansion Slots
Network Interface:	2 Dedicated OCP 3.0 Slots Supporting 1GbE, 10GbE, 25GbE Or 100GbE	Power:	2x Platinum Or Titanium Hot-swap Power Supplies; N+N Redundancy Supported
System Management:	Lenovo XClarity Controller; Redfish Support
Highlight:	4th Gen Intel Xeon Scalable processors Lenovo Rack Server , 16TB TruDDR5 memory Lenovo ThinkSystem SR850 V3 , 24x NVMe drives 2U Rack Server

Product Description

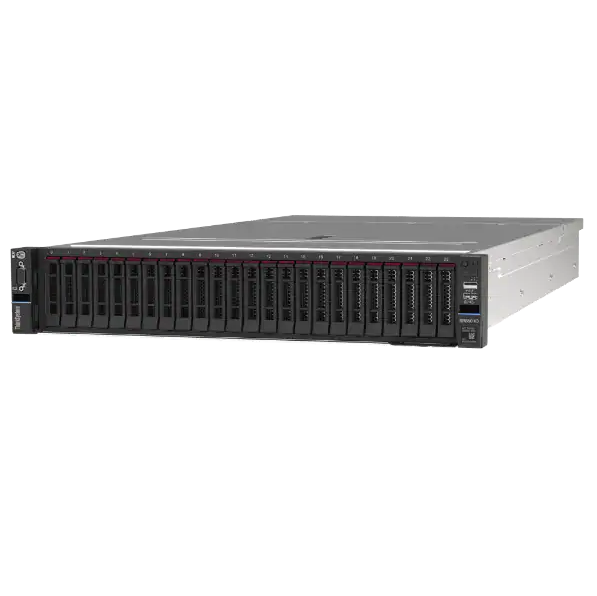

Lenovo ThinkSystem SR850 V3

Next-Gen Workload Ready

The ThinkSystem SR850 V3 delivers enterprise-grade performance with support for two to four 4th Gen Intel® Xeon® Scalable processors and up to two high-power GPUs. Featuring 33% more direct connections than previous models, it supports Gen4 and Gen5 NVMe drives with extensive storage expansion options.

High Performance in a 2U Form Factor

Packing exceptional computing power into a compact 2U chassis, the SR850 V3 supports more CPU cores and up to 4TB of the latest DDR5 memory for superior performance in demanding workloads.

Extreme RAS and Superior Security

The SR850 V3 leads in Reliability, Availability, and Serviceability (RAS) with advanced features including:

Predictive Failure Analysis for proactive maintenance
Comprehensive error detection and self-healing capabilities
Light path diagnostics for rapid failure identification
Lenovo XClarity for simplified, standardized management
ThinkShield security protection throughout the device lifecycle

Technical Specifications

Form Factor	2U rack
Processor	Two or four 4th Gen Intel® Xeon® Scalable processors, up to 350W Mesh topology with 3x UPI links Supports up to 4x QAT, DLB, IAA and DSA Accelerators
GPU Support	Up to 2x double-width 350W GPUs or 4x single-width 75W GPUs
Memory	Up to 16TB of TruDDR5 memory in 64x slots Memory speeds up to 4800MHz
Drive Bays	Up to 24x 2.5" drives Supports up to 24x direct connection NVMe drives 2x 7mm or 2x M.2 drives for boot
Expansion Slots	Up to 12x (8x Gen5 + 4x Gen4) or 7x (6x Gen5 + 1x Gen4) or 12x Gen4 or 9x Gen4 expansion slots Front: VGA, 1x USB 3.1, 1x USB 2.0 Rear: 2x USB 3.1, optional Serial port, VGA port, 1GbE dedicated management port
Network Interface	2 Dedicated OCP 3.0 slots supporting 1GbE, 10GbE, 25GbE or 100GbE
HBA/RAID Support	Support for ThinkSystem PCIe RAID/HBA cards
Power	2x Platinum or Titanium hot-swap power supplies N+N redundancy supported
High Availability	PFA; hot-swap/redundant drives and power supplies; redundant fans; internal light path diagnostic LEDs; front-access diagnostics via dedicated USB port; optional External Diagnostics Panel Handset with LCD display
System Management	Lenovo XClarity Controller; Redfish support

Tag:

Place of Origin:	China
Brand Name:	Lenovo
Model Number:	Lenovo ThinkSystem SR850 V3 2U Rack Server

Minimum Order Quantity:	1/set
Delivery Time:	2-3 work days
Payment Terms:	T/T
Supply Ability:	50pcs per week

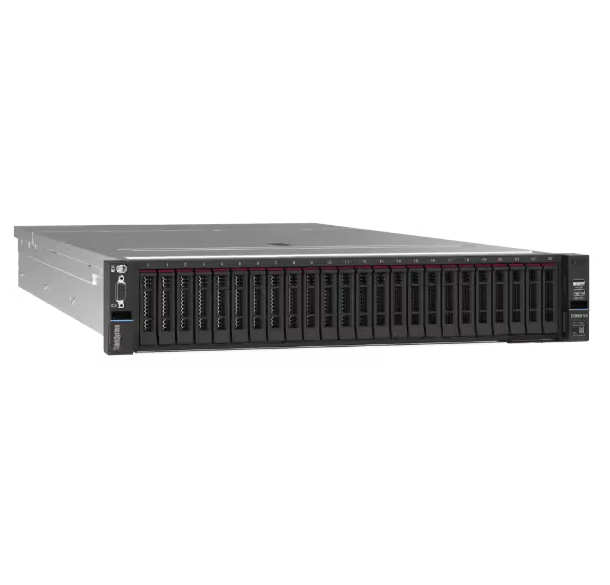

Lenovo ThinkSystem SR850 V3 2U Rack Server with 4th Gen Intel Xeon Scalable processors, 16TB TruDDR5 memory, and 24x NVMe drives
