Lenovo ThinkSystem SR675 V3 3U Rack Server with 4TB DDR5 Memory PCIe Gen5 Expansion and XClarity Controller 2

Basic Information
Place of Origin: China
Brand Name: Lenovo
Model Number: Lenovo ThinkSystem SR675 V3 3U Rack Server
Minimum Order Quantity: 1/set
Delivery Time: 2-3 work days
Payment Terms: T/T
Supply Ability: 50pcs per week
Detail Information
Processor: Up To 2x 4th Or 5th Generation AMD EPYC™ Processors Per Node Memory: Up To 4TB Using 24x DDR5 DIMMs With Max Frequency 6400 MHz
Power: Four N+N Redundant Hot-swap PSUs (up To 2600W Titanium) I/O Expansion: Up To 6x PCIe Gen5 X16 Adapters (2 Front, 4 Rear) And 1x OCP NIC 3.0 (x16/x8/x4) (rear) Depending On The Configuration
RAID Support: Software RAID Is Not Supported. Only RAID Controllers And HBA Management: Lenovo XClarity Controller 2 (XCC2), Confluent And Lenovo HPC & AI Software Stack
Highlight:

4TB DDR5 Memory Lenovo Rack Server

,

PCIe Gen5 Expansion 3U Rack Server

,

XClarity Controller 2 Lenovo ThinkSystem SR675 V3


Product Description

Lenovo ThinkSystem SR675 V3 3U Rack Server
GPU-Rich Platform
As workloads increasingly leverage accelerator capabilities, GPU demand continues to rise. The ThinkSystem SR675 V3 delivers optimal performance across multiple industries including retail, manufacturing, financial services, and healthcare. This enables enhanced insight extraction to drive innovation through machine learning and deep learning applications.
Accelerated Compute Platform
The ThinkSystem SR675 V3 supports AMD Instinct™ MI Series Accelerators, Qualcomm® Cloud AI Accelerators, and the complete NVIDIA datacenter portfolio including Blackwell, Hopper, Lovelace, and Ampere architectures. Specifically designed for NVIDIA HGX H200 4-GPU with NVLink configurations, it supports up to 8 NVIDIA H200 Tensor Core 600W GPUs with NVLink Bridge and NVIDIA L40 CNX Tensor Core GPUs.
Form Factor 3U rack
Processor Up to 2x 4th or 5th Generation AMD EPYC™ Processors per node
Memory
  • Up to 4TB using 24x DDR5 DIMMs with max frequency 6400 MHz
  • 12 channels per CPU with 1DPC
  • Capacities: Up to 128GB
Base Module
  • Up to 4x double-wide, full-height, full-length 600W GPUs; PCIe Gen 5 x16
  • Or up to 4x single-wide, full-height, half-length PCIe Gen 5 x16
  • Up to 8x 2.5" Hot Swap SAS/SATA/NVMe
Dense Module
  • Up to 8x double-wide, full-height, full-length 600W GPUs each PCIe Gen 5 x16 on PCIe switch
  • Up to 8x single-wide, full-height, half-length GPUs each PCIe Gen 5 x16 on PCIe switch
  • Up to 6x EDSFF E1.S NVMe SSDs or up to 4x EDSFF E3.S 1T NVMe HS SSDs
HGX Module
  • NVIDIA HGX™ H200 or H100 4-GPU with 4x NVLink connected 700W SXM5 GPUs
  • Up to 4x 2.5" Hot Swap NVMe SSDs or up to 4x EDSFF E3.S 1T NVMe HS SSDs
RAID Support RAID Controllers & HBA (RAID software not supported)
I/O Expansion
  • Up to 6x PCIe Gen 5 x16 adapters (2 front, 4 rear)
  • OCP NIC 3.0 (x16/x8/x4) (rear) depending on the configuration
Power and Cooling
  • Four N+N redundant hot-swap PSUs (up to 2600W Titanium)
  • Full ASHRAE A2 support with internal fans and Lenovo Neptune™ liquid-to-air hybrid cooling on NVIDIA HGX™ H100 and H200
Management Lenovo XClarity Controller 2 (XCC2), Confluent and Lenovo HPC & AI Software Stack

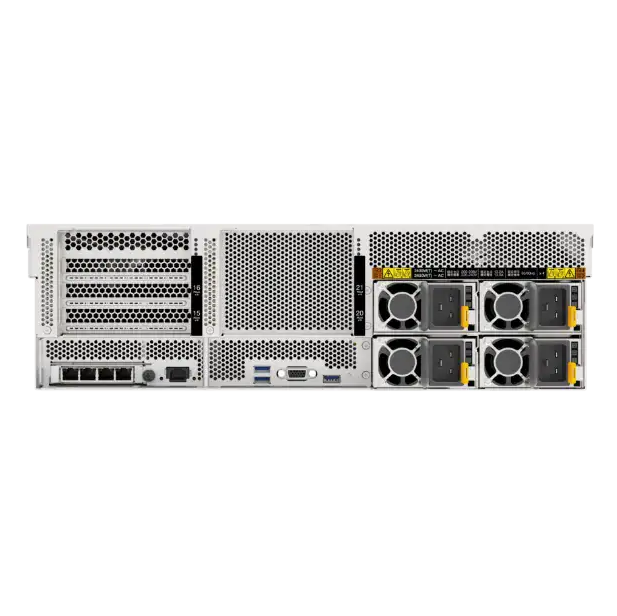

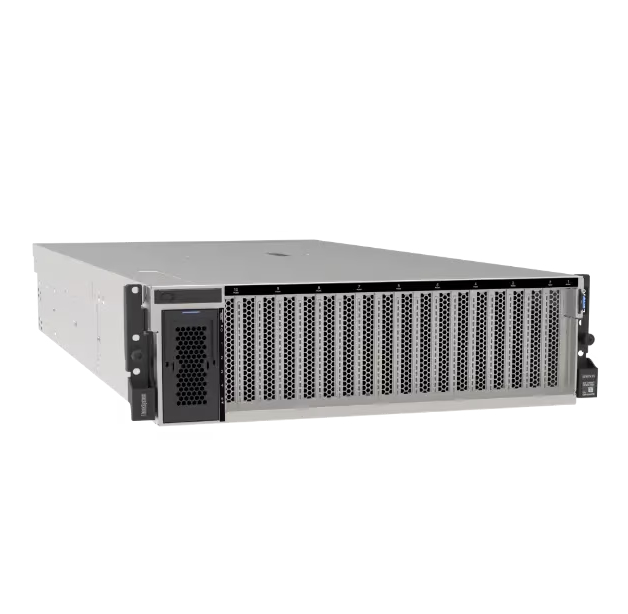

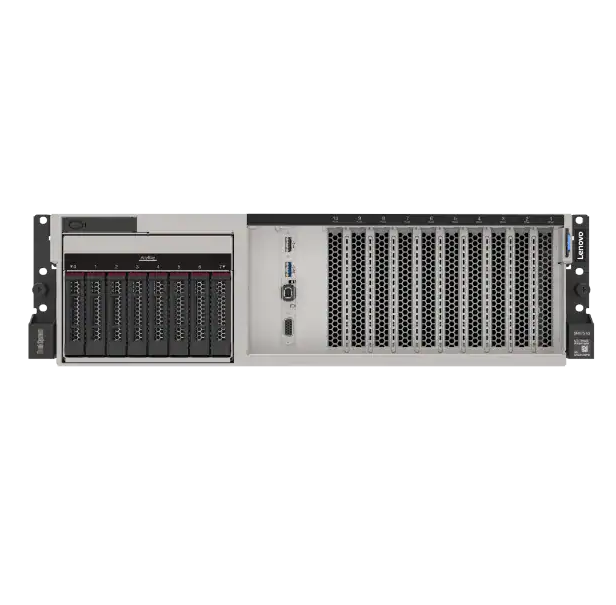

Lenovo ThinkSystem SR675 V3 3U Rack Server with 4TB DDR5 Memory PCIe Gen5 Expansion and XClarity Controller 2 0 Lenovo ThinkSystem SR675 V3 3U Rack Server with 4TB DDR5 Memory PCIe Gen5 Expansion and XClarity Controller 2 1 Lenovo ThinkSystem SR675 V3 3U Rack Server with 4TB DDR5 Memory PCIe Gen5 Expansion and XClarity Controller 2 2
