Detail Information

Processors:	Up To 2x 5th Gen Intel® Xeon® Scalable Processors, Up To 64 Cores And 350W TDP	Memory:	Supports Up To 32x TruDDR5 3DS/RDIMMs
Drive Bays:	Up To 4x 3.5” Or 12x 2.5” Or 16x EDSFF E1.S Drives	Expansion Slots:	Up To 5x PCIe 4.0/5.0 Slots, 1x OCP 3.0 Slot, 1x Cabled Internal HBA/RAID Adapter That Doesn't Occupy A Standard PCIe Slot
GPUs:	Up To 3x Single-width 75W GPUs	Network Interface:	LOM Adapter Installed In The OCP 3.0 Slot, Optional For Front Access Networking PCIe Adapters
Power:	Dual Redundant AC & DC; Platinum & Titanium; 750W, 1100W, 1800W, And 1100W -48V DC Platinum	Systems Management:	Lenovo XClarity Controller
Highlight:	Up to 64 Cores Lenovo ThinkSystem SR630 V3 , 350W TDP 2U Rack Server , TruDDR5 3DS/RDIMMs Lenovo Rack Server

Product Description

Lenovo ThinkSystem SR630 V3 2U Rack Server

Next-Gen Workloads Handled at the Flip of a Switch

Processing power is essential for modern applications and evolving technology requirements. The SR630 V3 is engineered to efficiently manage next-generation workloads with flexible storage, PCIe Gen5 support, intuitive data management, and robust security features - ideal for cloud service providers and enterprise applications.

Easy Management and Enhanced Security in One Smart Server

The SR630 V3 features Lenovo ThinkShield security software for comprehensive protection against attacks throughout the supply chain, server infrastructure, and cloud environment. The XClarity system manager simplifies deployment, fault handling, and network expansion while providing advanced security monitoring with three configurable security modes.

Technical Specifications

Form Factor/Height	1U rack server
Processor	Up to 2x 5th Gen Intel® Xeon® Scalable processors, up to 64 cores and 350W TDP
Drive Bays	Up to 4x 3.5" or 12x 2.5" or 16x EDSFF E1.S drives Front: up to 4x 3.5" / 10x 2.5" /16x EDSFF E1.short hot swap drives Rear: 2x 2.5"; 7mm SATA/NVMe hot-swap boot drives, support RAID Internal 2x M.2 SATA/NVMe boot drives, support RAID Direct NVMe, VROC/VMD, and onboard SATA with SW RAID (0,1,5,10)
Memory	Supports up to 32x TruDDR5 3DS/RDIMMs
Expansion Slots	Up to 5x PCIe 4.0/5.0 slots, 1x OCP 3.0 slot, 1x cabled internal HBA/RAID adapter that doesn't occupy a standard PCIe slot
GPUs	Up to 3x single-width 75W GPUs
Network Interface	LOM adapter installed in the OCP 3.0 slot, optional for front access Networking PCIe adapters
Ports	Front: 1x USB 3.1 G1, 1x USB 2.0 for BMC, 1x VGA (optional), 1x external diagnostics handset port (optional) Rear: 3x USB 3.0 G1, 1x VGA, 1x 1GbE RJ45 (management), 2nd 1GbE management port (optional in OCP slot location), and 1x Serial port (optional)
HBA/RAID Support	SATA with SW RAID (0,1,5,10); Common building blocks including standard and Internal PCIe RAID/HBA adapters.
Power	Dual Redundant AC & DC; Platinum & Titanium; 750W, 1100W, 1800W, and 1100W -48V DC Platinum
Systems Management	Lenovo XClarity Controller
Limited Warranty	1-year and 3-year customer replaceable unit and onsite service, next business day 9x5; optional service upgrades

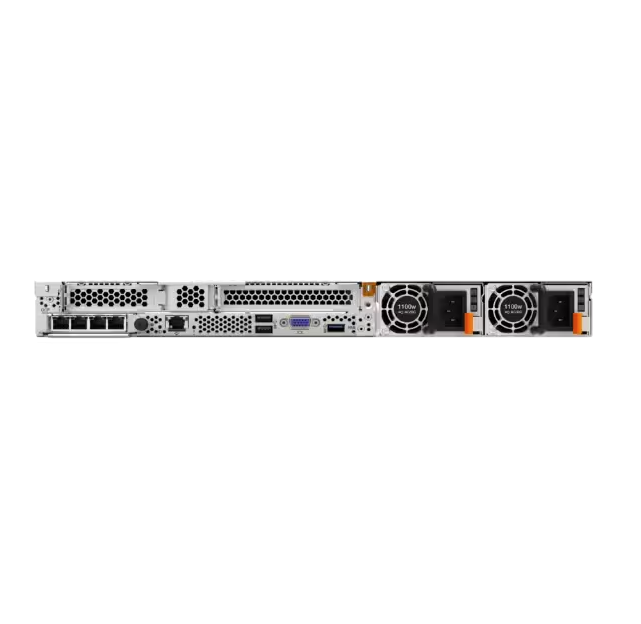

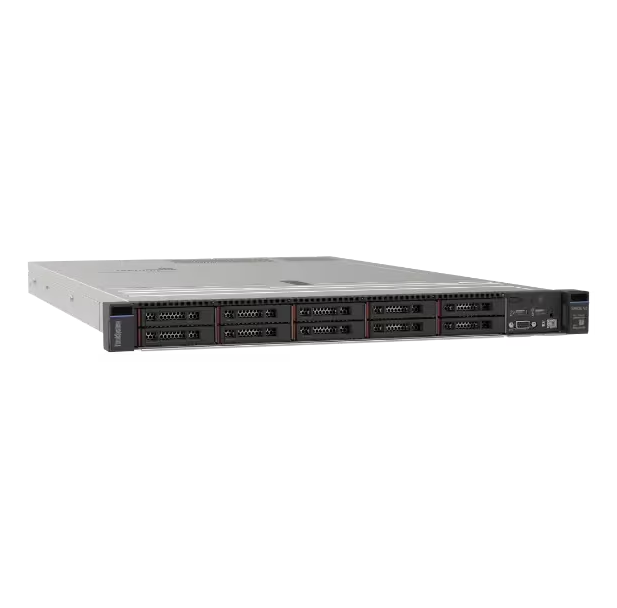

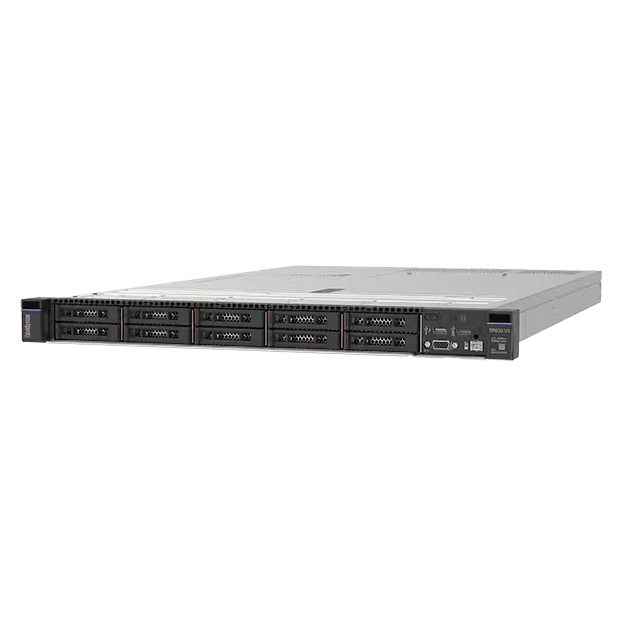

Product Images

Tag:

Place of Origin:	China
Brand Name:	Lenovo
Model Number:	Lenovo ThinkSystem SR630 V3 1U Rack Server

Minimum Order Quantity:	1/set
Delivery Time:	2-3 work days
Payment Terms:	T/T
Supply Ability:	50pcs per week

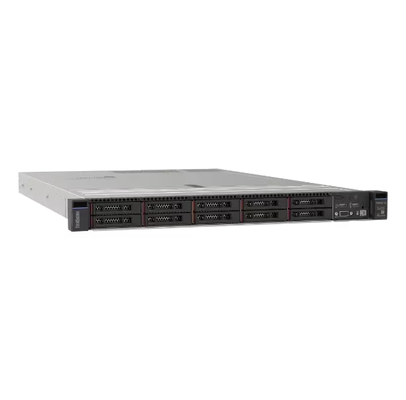

Lenovo ThinkSystem SR630 V3 2U Rack Server with Up to 64 Cores 350W TDP and TruDDR5 3DS/RDIMMs

Up to 64 Cores Lenovo ThinkSystem SR630 V3

350W TDP 2U Rack Server

TruDDR5 3DS/RDIMMs Lenovo Rack Server
