| Place of Origin: | China |
|---|---|
| Brand Name: | Lenovo |
| Certification: | ALL |
| Model Number: | SR650 V2 |
| Minimum Order Quantity: | 2 pieces |
| Price: | Ask |
| Packaging Details: | New Original Packing |
| Delivery Time: | To be negotiated |
| Payment Terms: | Western Union, T/T, MoneyGram |
| Supply Ability: | 50 pcs per week |
| Form Factor/Height: | 2U Rack Server | Processors: | Up To 2x 3rd Generation Intel® Xeon® Scalable Processors, Up To 40 Cores, Up To 270W TDP |
|---|---|---|---|
| Drive Bays: | Up To 20x 3.5-inch Or 40x 2.5-inch Drives; Up To 32x NVMe Drives Supported With NVMe Switch Adapters; 2x M.2 Boot Drives (RAID 1); 2x 7mm Boot Drives In Rear (RAID 1) | Memory: | 32x DDR4 Memory Slots; Maximum 8TB Using 32x 256GB 3DS RDIMMs; Supports Up To 16x Intel® Optane™ Persistent Memory 200 Series Modules (PMem) |
| Expansion Slots: | Up To 8x PCIe 4.0 Slots, 1x OCP 3.0 Slot, 1x Cabled HBA/RAID Adapter That Doesn't Occupy A Standard PCIe Slot | GPUs: | Up To 8x Single-width GPUs Or 3x Double-width GPUs |
| Network Interface: | LOM Adapter Installed In The OCP 3.0 Slot; PCIe Adapters | Power: | Dual Redundant Power Supplies (up To 1800W Platinum) |
| Highlight: | Lenovo ThinkSystem SR650 V2 Rack Server,Lenovo ThinkSystem SR650 V2 Server |
||

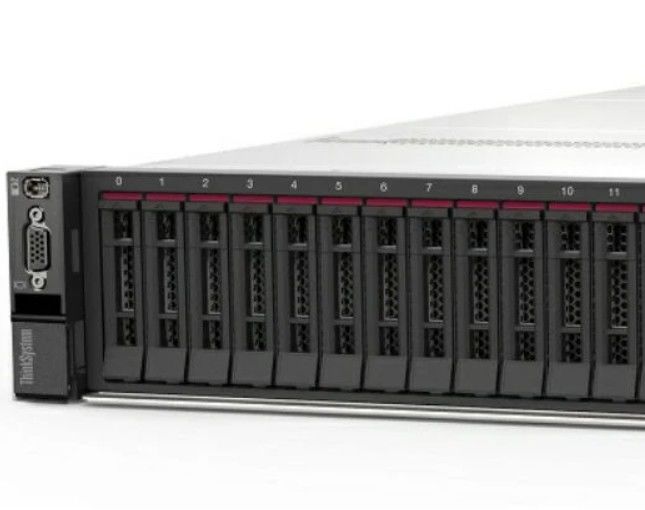

Lenovo ThinkSystem SR650 V2
High-performance scalable server
For Compute-Intensive Workloads
For medium to large enterprises, and managed and cloud service providers, Lenovo ThinkSystem SR650 V2 is the optimum 2U, two-socket server—the most widely used server type worldwide. It’s engineered to deliver high performance with 270W CPUs, low-latency NVMe drives, and high-power GPUs.
With Lenovo’s history of reliability†, the highly flexible and configurable SR650 V2 is the ideal platform for hyperconverged infrastructure (HCI) or softwaredefined storage (SDS). It provides a solid foundation for:
Versatile and Scalable
ThinkSystem SR650 V2 supports Intel® Optane™ DC persistent memory 200 series and up to two 3rd generation Intel® Xeon® Scalable processors with multisocket core count density up to 40 cores per processor.
Industry-leading Lenovo AnyBay technology provides the flexibility to mix-and-match SAS/SATA HDDs/SSDs and NVMe SSDs in the same drive bays with maximum storage in SR650 V2 up to 40x 2.5” SAS/SATA HDDs. Support for 32x NVMe drives with NVMe switch adapters.
The ThinkSystem SR650 V2’s 8x PCIe 4.0 slots, OCP slots and support for three 300W GPUs provide added expandability, networking scalability, and speed necessary to ensure that I/O-intensive workloads such as software defined networking, and grid computing avoid bottlenecks that reduce full enterprise efficiency.
Storage can be tiered for greater application performance to provide the most cost-effective solution. Optional mirrored M.2 drives ensure reliability and quick OS initialization. SR650 V2 also features Platinum and Titanium PSUs, as well as continuous operation at 45°C, to reduce energy costs.
Innovative Management
The ThinkSystem SR650 V2 features Lenovo lauded XClarity system management suite. The XClarity management controller supports an easy-to-use application with industry standard Redfish-compliant REST APIs that provide streamlined hardware provisioning and maintenance, enabling a data-driven, centralized view of data center operations.
