| Place of Origin: | Beijing, China |
|---|---|
| Brand Name: | Cisco |
| Certification: | ce |
| Model Number: | C9200-24T-A |
| Minimum Order Quantity: | 1 pieces |
| Packaging Details: | New original <br>Carton box |
| Delivery Time: | 2-3DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 300 Piece/Pieces per Month |
| Package: | Yes | Products Status: | New |
|---|---|---|---|
| Model: | C9200-24T-A | Brand: | CISCO |
| Ports: | 24 | Stacking Bandwidth: | 160 Gbps |
| Highlight: | catalyst 9k switches,cisco switch 9000 series,catalyst 9000 switches |
||
|

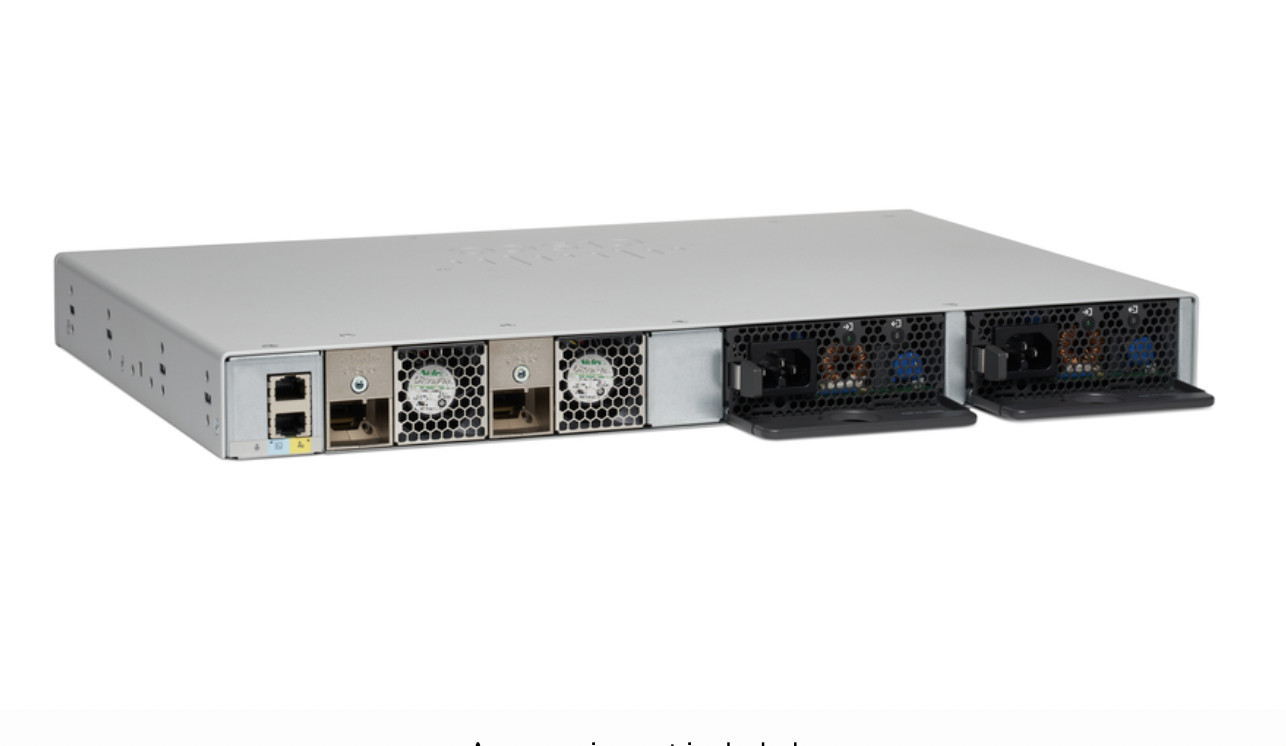

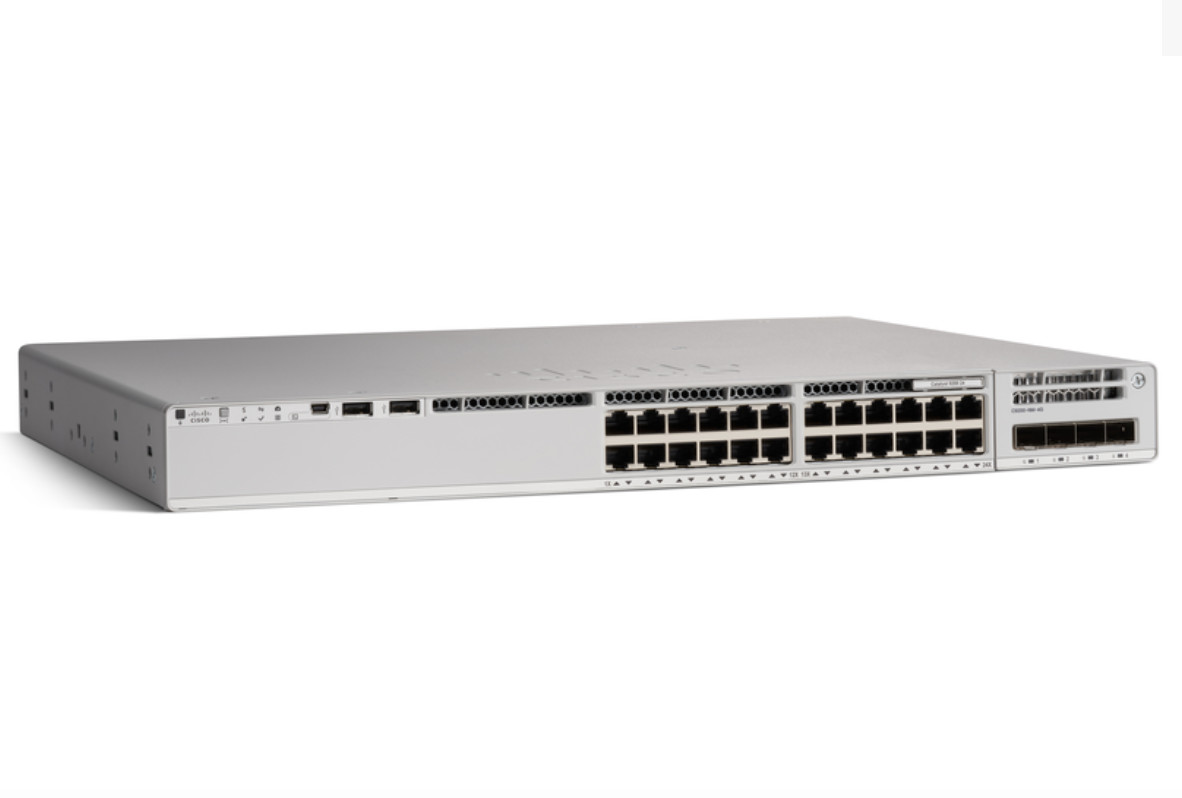

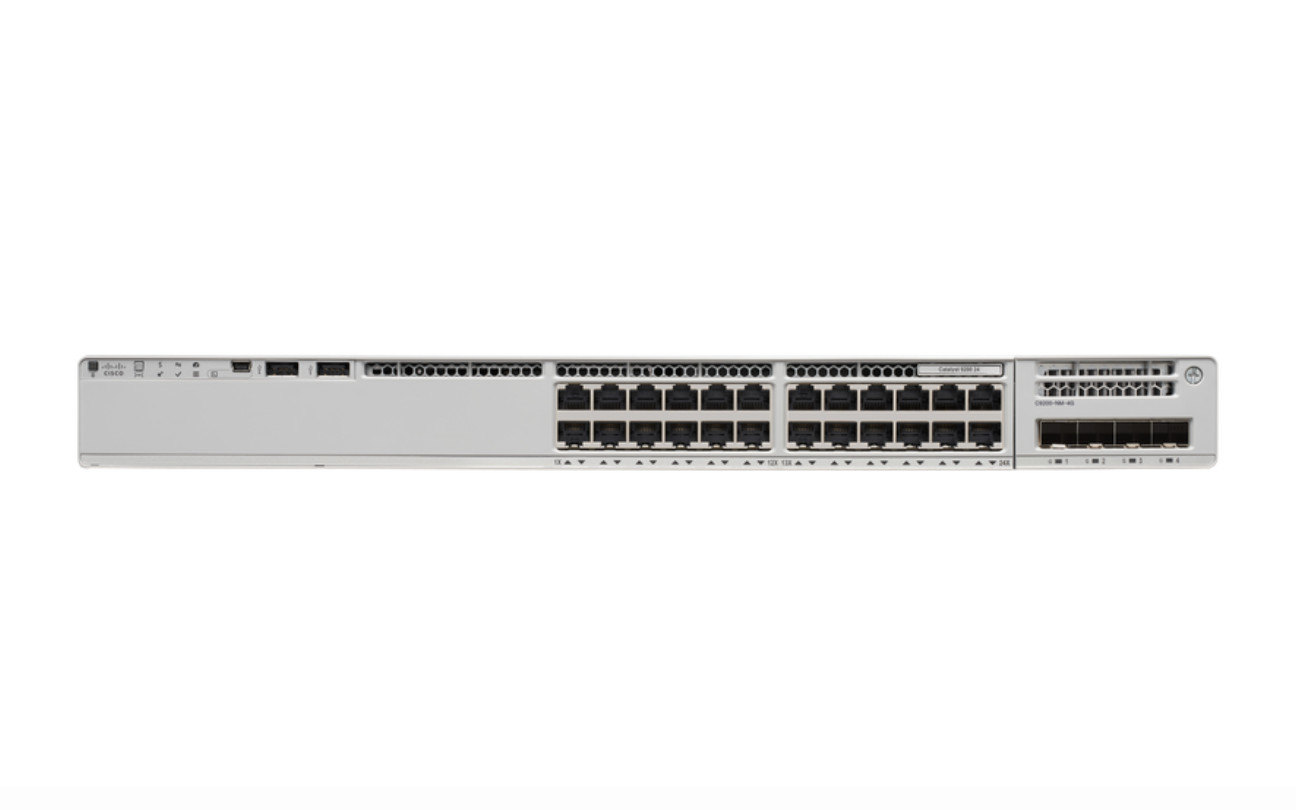

C9200-24T-A Specification |
|
|
Downlinks total 10/100/1000 or PoE+ copper ports |
24 ports data |
|
Uplink configuration |

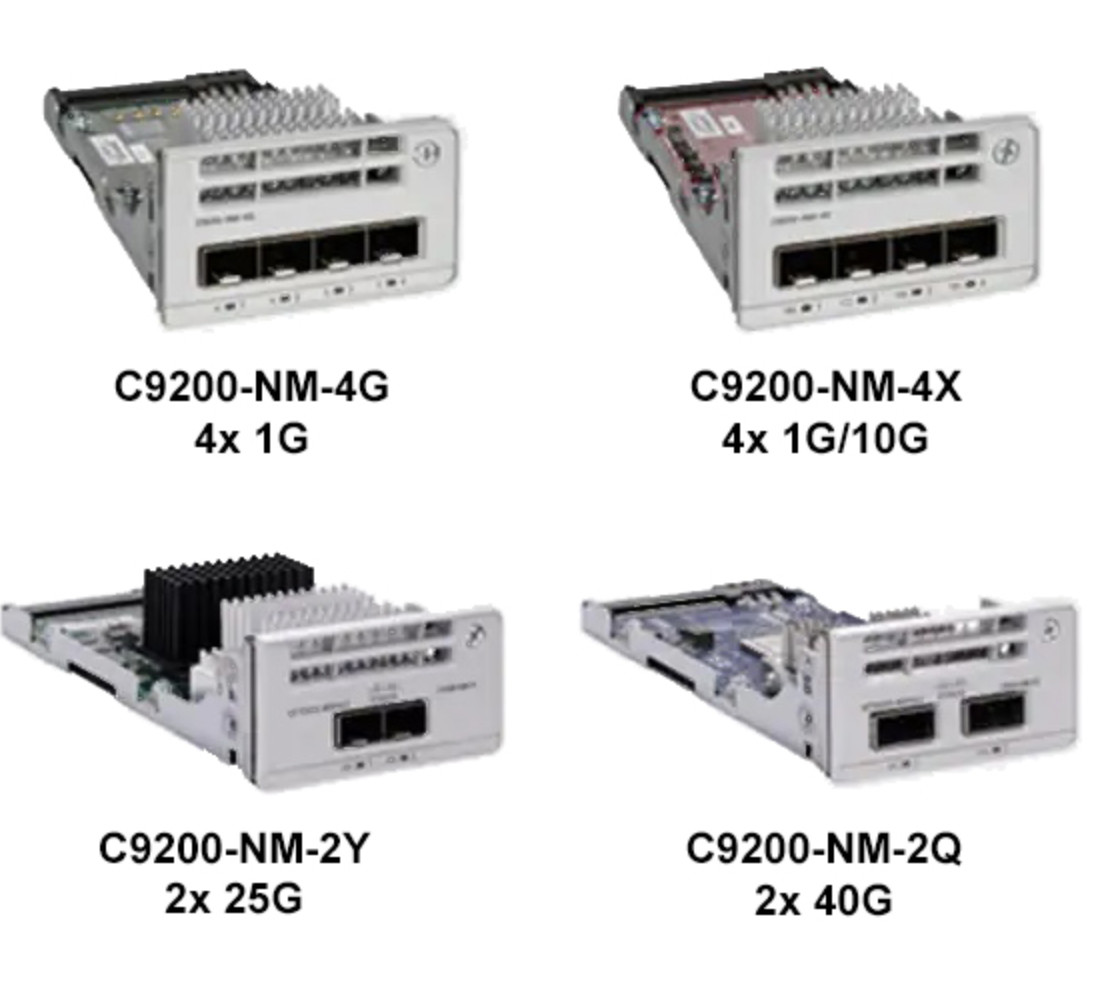

Modular uplink options |
|
Default primary AC power supply |
PWR-C5-125WAC |
|
Fans |
FRU redundant |
|
Software |
Network Advantage |
|
Chassis Dimensions |
1.73 x 17.5 x 13.8 in 4.4 x 44.5 x 35.0 cm |
|
Weight |
5.0 Kg |
|
Virtual Networks |
4 |
|
Stacking bandwidth |
160 Gbps |
|
Total number of MAC addresses |
32,000 |
|
Total number of IPv4 routes (ARP plus learned routes) |
14,000 (10,000 direct routes and 4,000 indirect routes) |
|
IPv4 routing entries |
4,000 |
|
IPv6 routing entries |
2,000 |
|
Multicast routing scale |
1,000 |
|
QoS scale entries |
1,000 |
|
ACL scale entries |
1,600 |
|
Packet buffer per SKU |
6 MB buffers for 24- or 48-port Gigabit Ethernet models |
|
Flexible NetFlow (FNF) entries |
16,000 flows on 24- and 48-port Gigabit Ethernet models |
|
DRAM |
4 GB |
|
Flash |
4 GB |
|
VLAN IDs |
4096 |
|
Total Switched Virtual Interfaces (SVIs) |
1000 |
|
Jumbo frames |
9198 bytes |
|
Wireless bandwidth per switch |
Up to 48 Gbps on 24-port and 48-port Gigabit Ethernet model |
|
Switching capacity |
128 Gbps |
|
Forwarding rate |
190.4 Mpps |
|
Mean time between failures (hours) |
587,800 |
