| Place of Origin: | Beijing, China |
|---|---|
| Brand Name: | HPE |
| Certification: | ce |
| Model Number: | JL684A |
| Minimum Order Quantity: | 1 pieces |
| Packaging Details: | New original <br>Carton box |
| Delivery Time: | 3-6DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 70 Piece/Pieces per Month |
| Package: | Yes | Products Status: | New |
|---|---|---|---|

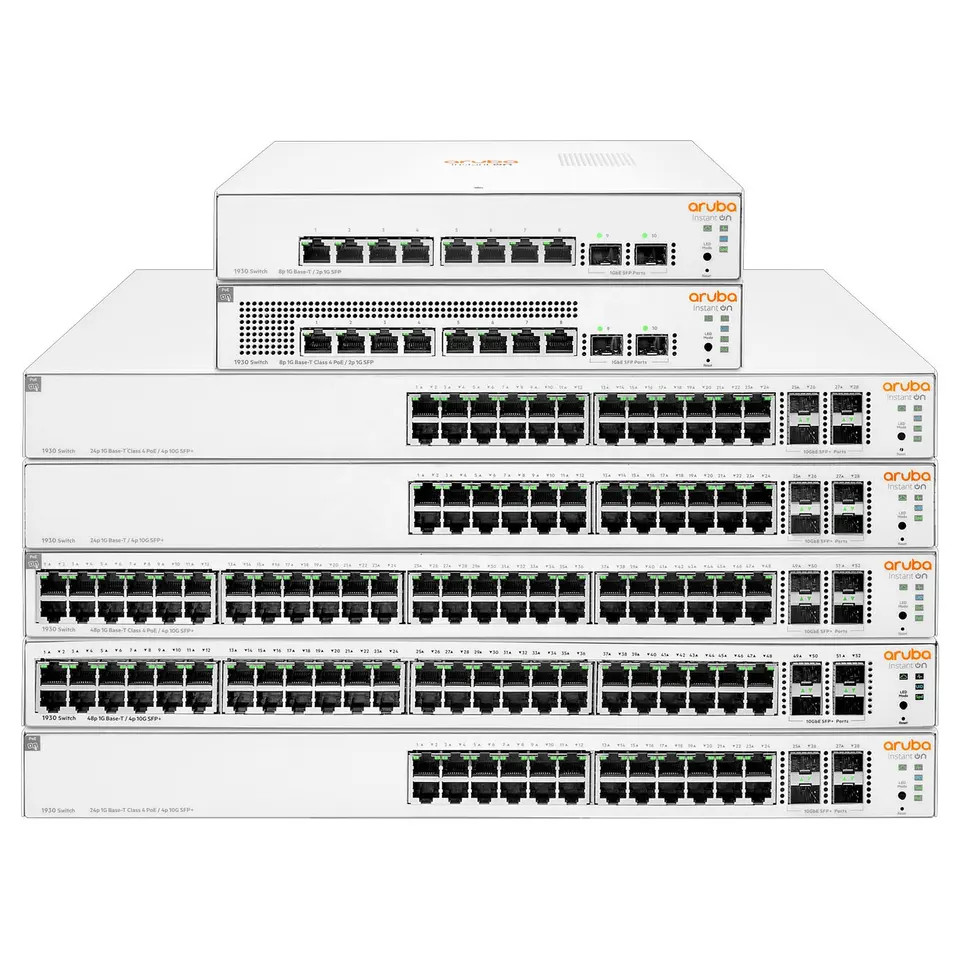

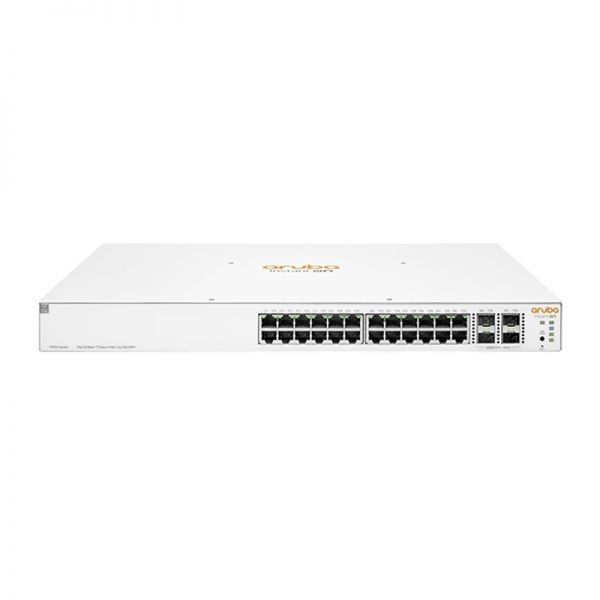

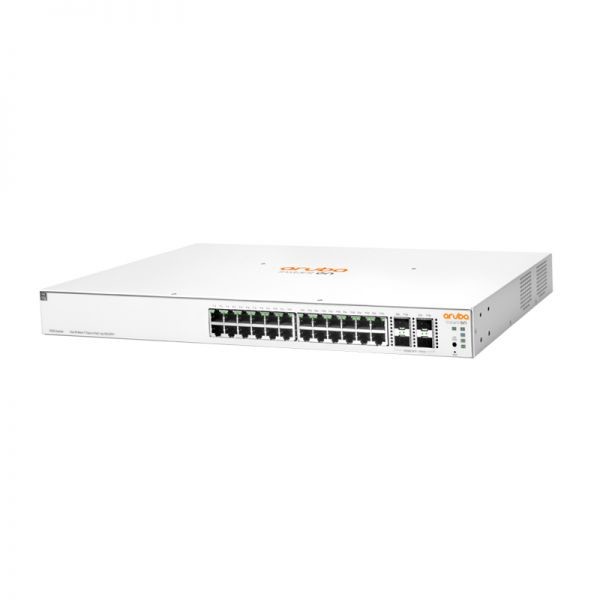

| Model: | JL684A | Product Name: | HPE Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch |
| Category: | Network Switch | Brand: | Aruba |
| Aruba: | 24x Gigabit Ethernet, 4x SFP+ | Power Consumption: | 439.0 W Maximum, 20.9 W Idle |
| Switching Capacity: | 128 Gbps | Throughput: | 95.23 Mpps, Maximum |
| Highlight: | Hpe Aruba Instant On 1930 24g,JL684A HP ARUBA 1930 |
||
JL684A Specification |
|
| I/O ports and slots |
24 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000BASE-T); |
| Dimension | 17.42(w) x 10.42(d) x 1.73(h) in (44.25 x 26.47 x 4.39 cm) (1U height) |
| Processor and memory | ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB |
| Throughput (Mpps) | 95.23 Mpps |
| Switching capacity | 128 Gbps |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
|
Operating relative |
15% to 95% @ 104°F (40°C) |
|
Nonoperating/Storage |
-40°F to 158°F (-40°C to 70°C) |
|
Nonoperating/Storage |
15% to 95% @ 140°F (60°C) |
| Altitude | up to 10,000 ft (3 km) |
| Idle power | 20.9 W |
| PoE | 370 W Class 4 PoE |
| Power Supply | Internal power supply |
