| Place of Origin: | Beijing, China |
|---|---|
| Brand Name: | HUAWEI |
| Model Number: | 03024QDB CE-L48XS-FD1 |
| Minimum Order Quantity: | 2 pieces |
| Price: | $2,200.00/pieces >=2 pieces |
| Packaging Details: | New Original Packing |
| Supply Ability: | 100 Piece/Pieces per Quarter |
| Products Status: | Stock | Type: | Wired |
|---|---|---|---|
| Kind: | External | Transmission Rate: | 1000Mbps |
| Highlight: | 10GBASE-X interface card,48-port interface card,CE12804/CE12808/CE12812/CE12816 interface card |
||
|

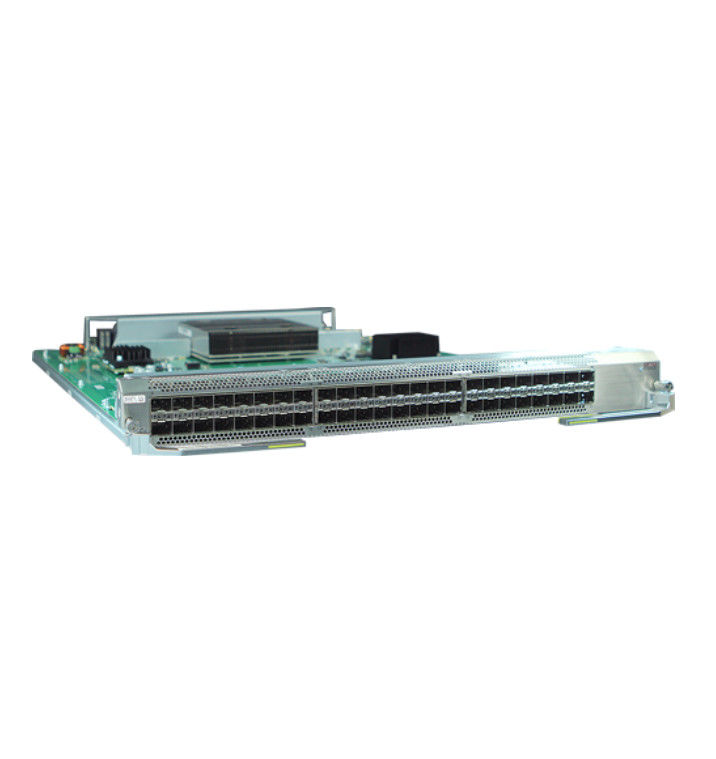

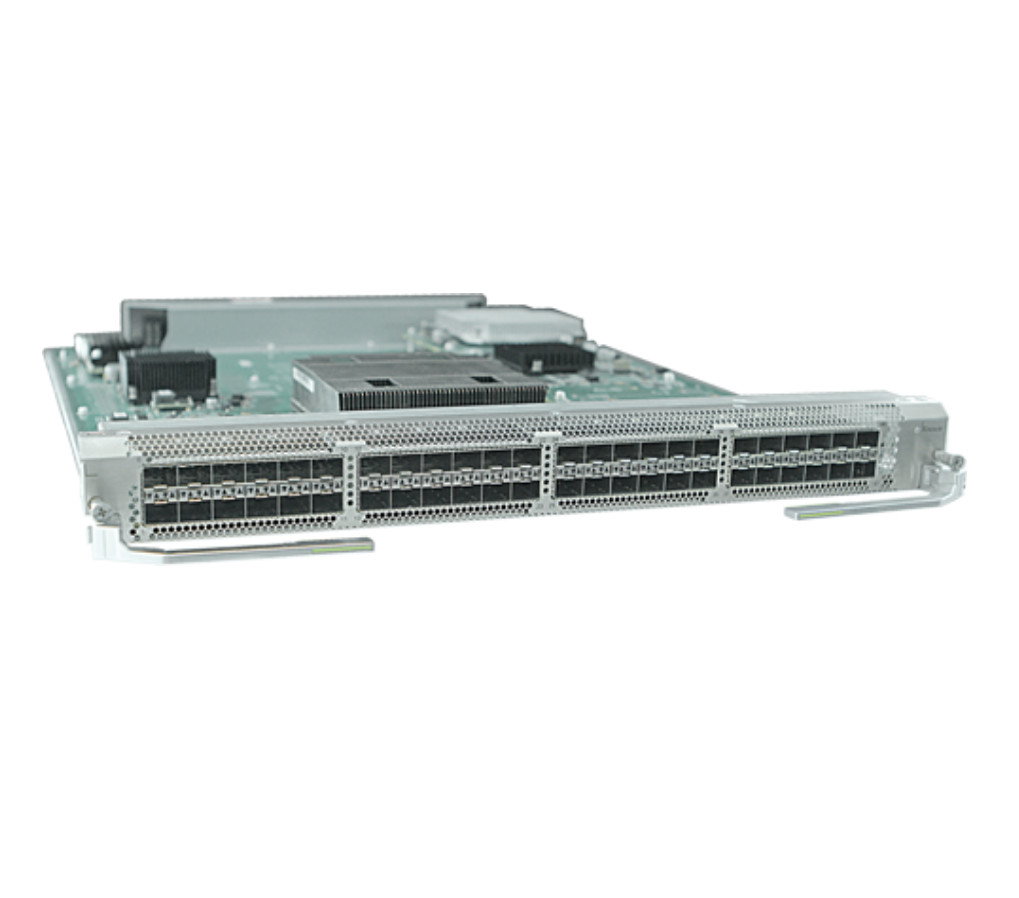

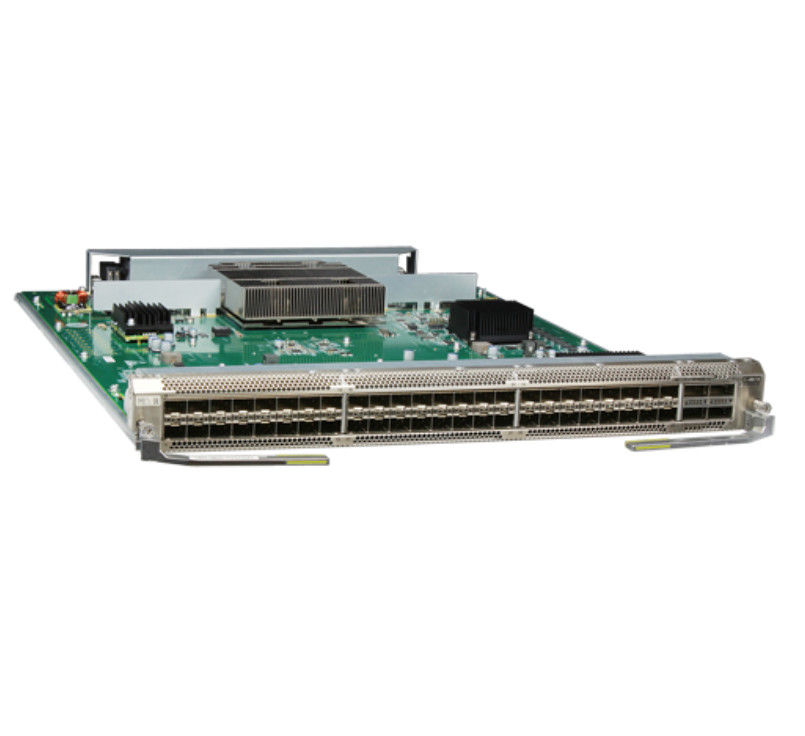

CE-L48XS-FD1 (48-Port 10GBASE-X Interface Card (FD1, SFP+))
|
|
|
|
Introduction
|
|
|
|
The CE-L48XS-FD1 provides data packet processing and traffic management on 48 10GE/25GE optical ports.
|
|
|
|
The CE-L48XS-FD1 can be installed in:
|
|
|
|
Slots 1 to 4 of the CE12804 chassis, as shown in Slot layout in the CE12804 chassis
|
|
|
|
Slots 1 to 8 of the CE12808 chassis, as shown in Slot layout in the CE12808 chassis
|
|
|
|
Slots 1 to 12 of the CE12812 chassis, as shown in Slot layout in the CE12812 chassis
|
|
|
|
Slots 1 to 16 of the CE12816 chassis, as shown in Slot layout in the CE12816 chassis
|
|
|
|
Slots 1 to 4 of the CE12804S chassis, as shown in Slot layout in the CE12804S chassis
|
|
|
|
Slots 1 to 8 of the CE12808S chassis, as shown in Slot layout in the CE12808S chassis
|
|
|
|
Functions and features
|
|
|
|
Function and Feature
|
Description
|
|
|
Basic function
|
The CE-L48XS-FD1 provides data packet processing and traffic management on 48 10GE/25GE optical ports.
|
|
|
Maximum port density
|
If all LPUs are CE-L48XS-FD1 cards:
|
|
|
|
The CE12804/CE12804S chassis provides a maximum of 192 10GE/25GE optical ports.
|
|
|
|
The CE12808/CE12808S chassis provides a maximum of 384 10GE/25GE optical ports.
|
|
|
|
The CE12812 chassis provides a maximum of 576 10GE/25GE optical ports.
|
|
|
|
The CE12816 chassis provides a maximum of 768 10GE/25GE optical ports.
|
|
|
High 10GE/GE port density (48x10GE/GE)
|
When the 10GE ports work in 10GE mode, they support SFP+ 10GE optical modules, and can work with 10GE Twinax high-speed cables or
AOC cables. |
|
|
|
Optical ports on a CE-L48XS-FD1 card work at the rate of 10 Gbit/s by default. You can run the port mode 25ge command to configure
the ports to work at the rate of 25 Gbit/s. The ports support SFP28 optical modules, SFP28 high-speed cables, and AOC cables. |
|
|
|
In versions earlier than V200R005C00, 10GE optical ports on the CE-L48XS-FD1 card cannot work at the rate of 1 Gbit/s. In
V200R005C00 and later versions, 10GE optical ports on the card support GE optical and copper modules. When a GE copper module is installed on a 10GE optical port, the port supports only the rate of 1000 Mbit/s. When a GE optical module is installed on a 10GE optical port, the port works in non-auto-negotiation mode by default and does not support the auto-negotiation configuration. |
|
